1997 Suzuki LT-4WDX Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1997 Suzuki LT-4WDX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

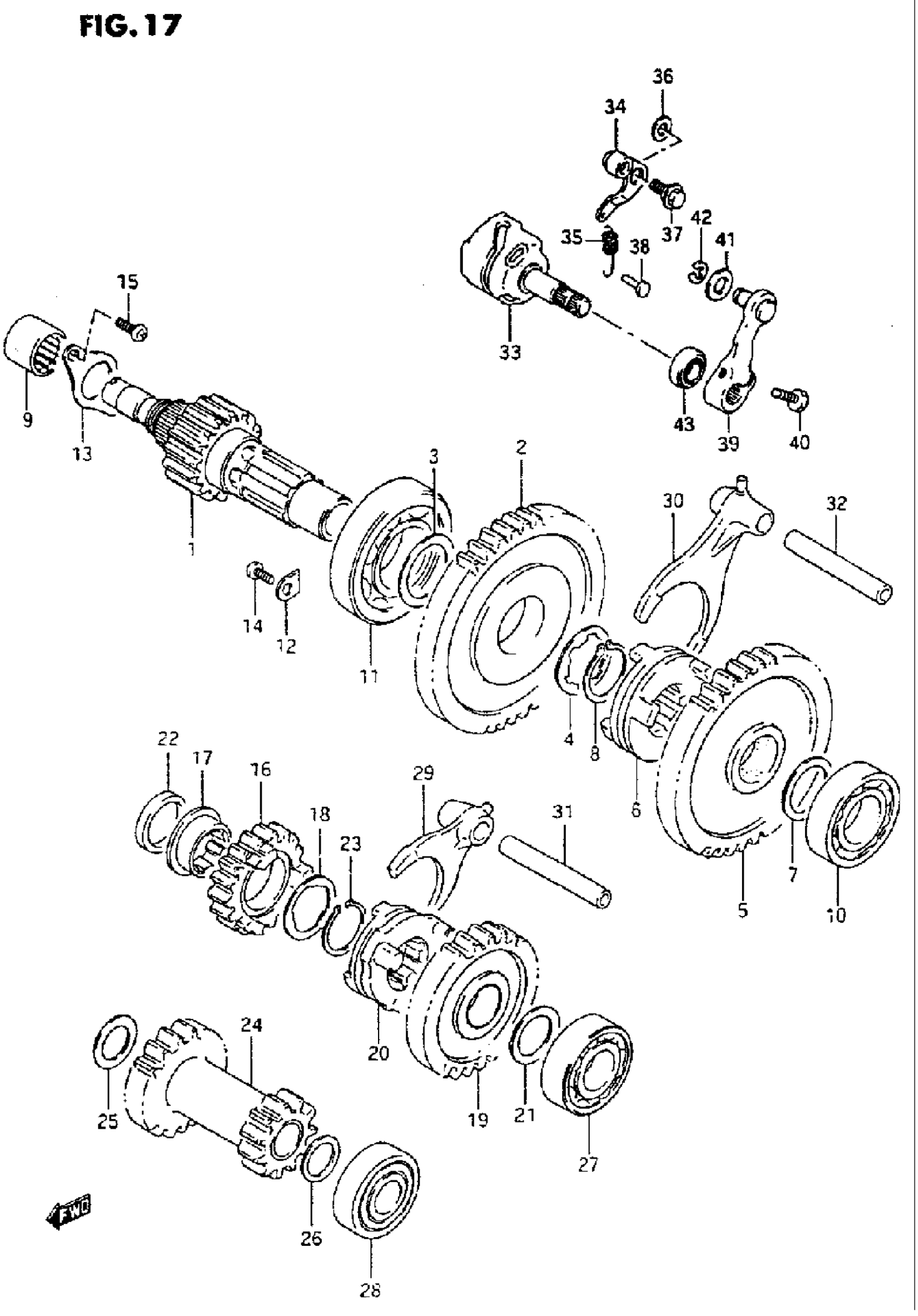

1997 Suzuki LT-4WDX Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, SUB TRANSMISSION This part replaces 29121-19B01.

29121-19B10

1
Out of stock

2

GEAR, DRIVEN NO.1 (NT:43)

29311-19B01

1
Out of stock

3

WASHER, RH

08211-32441

1
Out of stock

4

WASHER, LH

09167-32002

1
Out of stock

5

GEAR. DRIVEN NO.2 (NT:37)

29320-19B00

1
Out of stock

6

DOG, DRIVEN GEAR

29331-19B00

1
Out of stock

7

WASHER

08211-25351

1

$4.03

In stock

8

CIRCLIP This part replaces 08331-31326.

08331-3132A

1
Out of stock

9

BEARING, RH

09263-18023

1
Out of stock

10

BEARING, LH

09262-25003

1
Out of stock

11

BEARING. MIDDLE

09262-35038

1
Out of stock

12

RETAINER

24741-21A00

2
Out of stock

13

RETAINER

24751-19B00

1
Out of stock

14

SCREW This part replaces 02112-06123.

02112-0612A

2
Out of stock

15

SCREW This part replaces 02112-06163.

02112-0616A

2
Out of stock

16

GEAR, DRIVE NO.1 (NT:18) This part replaces 29211-19B00.

29211-19B01

1
Out of stock

17

BUSH This part replaces 29215-19B00.

29215-19B01

1
Out of stock

18

WASHER

09167-25016

1
Out of stock

19

GEAR, DRIVE NO.2 (NT:25)

29220-19B00

1
Out of stock

20

DOG, DRIVE GEAR

29231-19B00

1
Out of stock

21

WASHER

08211-20301

1
Out of stock

22

SPACER (25X34X5.5)

09180-25083

1
Out of stock

23

SNAP RING

09380-25003

1
Out of stock

24

GEAR. IDLE (NT:17/11)

29150-19B10

1
Out of stock

25

WASHER (17X24X4.5)

09180-17076

1
Out of stock

26

WASHER, SUB T/M IDLE, LH This part replaces 08211-15261.

09181-15195

1
Out of stock

27

BEARING, DRIVE SHAFT LH

09262-20069

1
Out of stock

28

BEARING This part replaces 09262-15022.

09262-15062

1
Out of stock

29

FORK, NO.1

29511-19B00

1
Out of stock

30

FORK, NO.2

29521-19B00

1
Out of stock

31

SHAFT, NO.1 This part replaces 25421-35403.

25421-35410

1
Out of stock

32

SHAFT, NO.2

25421-04702

1
Out of stock

33

CAM, SUB TRANSMISSION GEAR

29610-19B10

1
Out of stock

34

STOPPER

29630-19B00

1
Out of stock

35

SPRING

09443-09042

1
Out of stock

36

WASHER

08211-06141

1
Out of stock

37

BOLT

09111-06054

1
Out of stock

38

PIN

09223-04001

1
Out of stock

39

ARM

25360-19B70

1
Out of stock

40

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

1
Out of stock

41

WASHER

08322-01087

1
Out of stock

42

.WASHER This part replaces 08322-11063.

08322-0106B

1
Out of stock

43

OIL SEAL (12X22X9)

09285-12006

1
Out of stock
