1997 Suzuki LT-4WDX Gear Shifting Diagram

← All diagrams

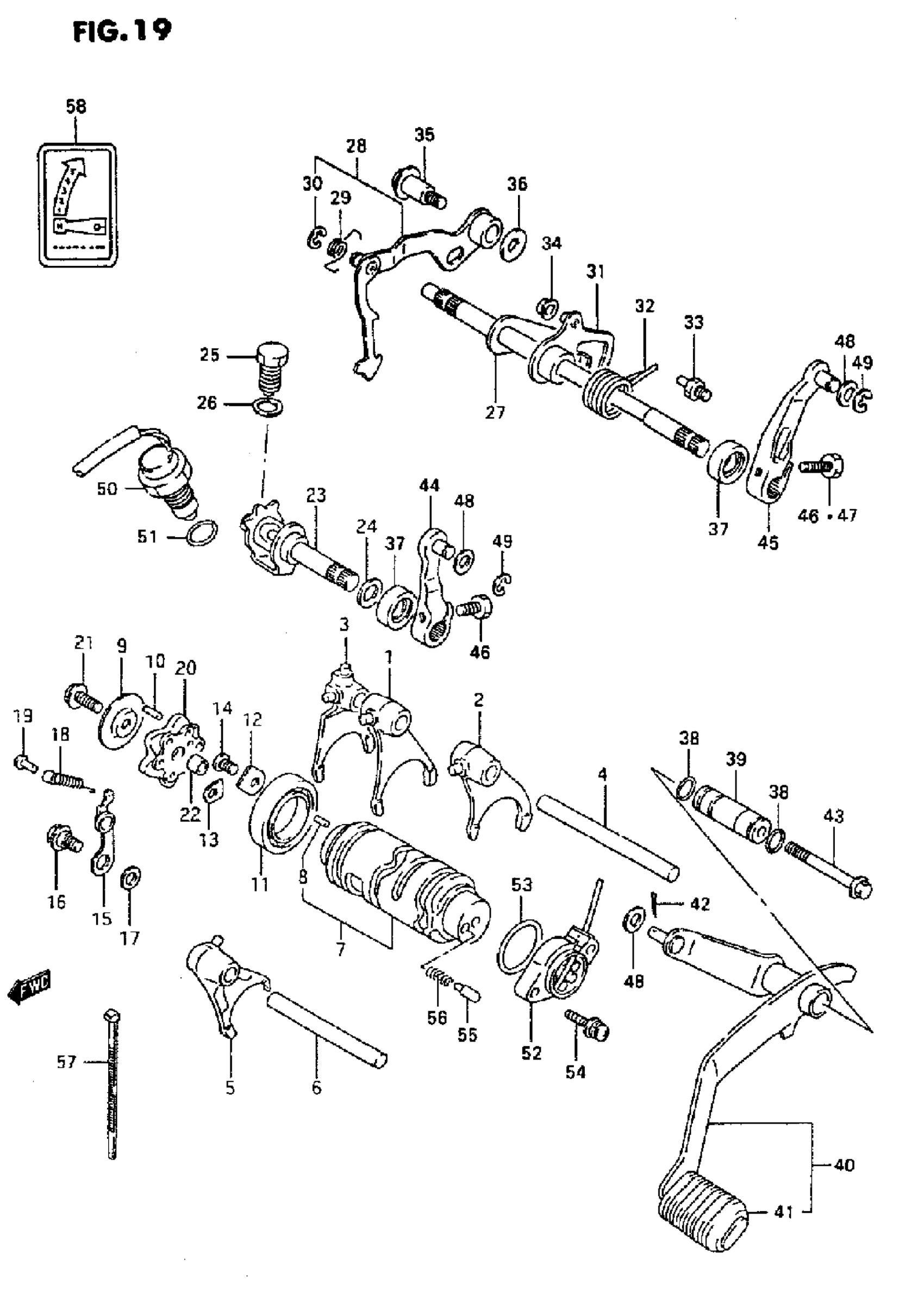

Find the part on the Gear Shifting diagram for your 1997 Suzuki LT-4WDX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki LT-4WDX Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFTING, NO.1

25211-19B00

1
Out of stock

2

FORK, GEAR SHIFTING, NO.2

25221-19B00

1
Out of stock

3

FORK, GEAR SHIFTING, NO.4

25241-19B00

1
Out of stock

4

SHAFT, NO.1

25411-24501

1
Out of stock

5

FORK, GEAR SHIFTING, NO.3

25231-19B00

1
Out of stock

6

SHAFT, NO.2

25411-14331

1
Out of stock

7

CAM, GEAR SHIFTING

25310-19B02

1
Out of stock

8

PIN (4X13.8)

04221-04089

1
Out of stock

9

RETAINER, PIN

25322-19B00

1
Out of stock

10

ROLLER (4X13.8)

09261-04002

6
Out of stock

11

BEARING (25X47X8)

09262-25006

1
Out of stock

12

RETAINER

25341-19B00

1
Out of stock

13

RETAINER

24741-21A00

1
Out of stock

14

SCREW This part replaces 02112-06123.

02112-0612A

2
Out of stock

15

STOPPER, CAM

25350-19B00

1
Out of stock

16

BOLT

09111-06054

1
Out of stock

17

WASHER

08211-06141

1
Out of stock

18

SPRING

09443-06067

1
Out of stock

19

PIN

09223-04001

1
Out of stock

20

PLATE, STOPPER

25301-20A00

—
Out of stock

21

BOLT This part replaces 01550-06253.

01550-0625A

1
Out of stock

22

PIN

04211-09109

1
Out of stock

23

CAM, REVERSE SHIFTING This part replaces 25320-19B01.

25320-19B10

1
Out of stock

24

1

$2.68

In stock

25

STOPPER, REVERSE

25350-11000

1
Out of stock

26

GASKET

09168-14002

1
Out of stock

27

SHAFT, GEAR SHIFTING NO.1

25510-19B00

1
Out of stock

28

ARM, GEAR SHIFTING NO.2

25520-19B01

1
Out of stock

29

SPRING

09448-13006

1
Out of stock

30

E RING This part replaces 08332-11075.

08332-1107A

1
Out of stock

31

ARM, LINK

25540-19B01

1
Out of stock

32

SPRING

09444-26025

1
Out of stock

33

STOPPER, ARM This part replaces 25671-24500.

25671-24501

1
Out of stock

34

ROLLER

09180-07014

1
Out of stock

35

BOLT

09103-08193

1
Out of stock

36

WASHER

09103-08193

1
Out of stock

37

OIL SEAL (12x22x9)

08211-08201

2
Out of stock

38

O RING (D:1.5, ID:10)

09280-10012

2
Out of stock

39

COLLAR

25661-19B00

1
Out of stock

40

LEVER ASSY, GEAR SHIFTING

25600-19B70

1
Out of stock

41

COVER

25652-24401

1
Out of stock

42

PIN This part replaces 04111-25158.

04111-2515A

1
Out of stock

43

BOLT This part replaces 01550-06553.

01550-0655B

1
Out of stock

44

ARM

25640-19B00

1
Out of stock

45

ARM, GEAR SHIFTING CABLE

25630-19B70

1
Out of stock

46

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

1
Out of stock

47

BOLT This part replaces 01500-08253.

01500-0825A

1
Out of stock

48

WASHER This part replaces 08322-01083.

08322-0108A

3
Out of stock

49

CIRCLIP This part replaces 08332-11063.

08332-1106A

2
Out of stock

50

SWITCH ASSY, REVERSE This part replaces 37600-19B02.

37600-19B03

1
Out of stock

51

O RING (D:3.2,ID:15.8)

09280-16008

1
Out of stock

52

SWITCH, GEAR SHIFTING This part replaces 37720-24501.

37720-24502

1
Out of stock

53

O RING

09280-26005

1
Out of stock

54

1

$2.83

In stock

55

CONTACT

09209-05011

1
Out of stock

56

SPRING

09440-04010

1
Out of stock

57

CLAMP (L:125)

09407-14403

1
Out of stock

58

LABEL, GEAR SHIFT

68392-24210

1
Out of stock
