1997 Suzuki LT-4WDX Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1997 Suzuki LT-4WDX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

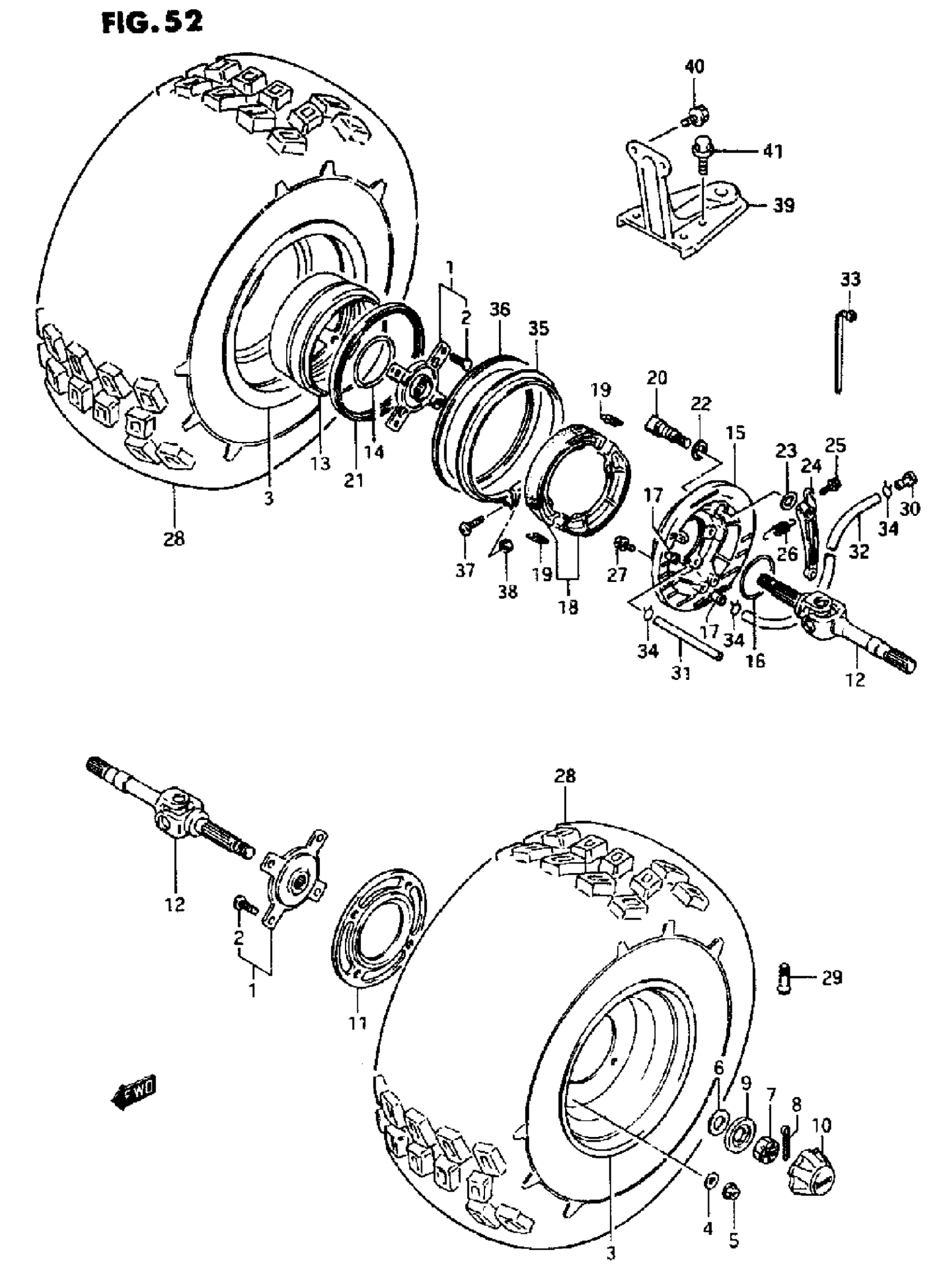

1997 Suzuki LT-4WDX Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL

64110-19B11

2
Out of stock

2

8

$2.23

In stock

3

RIM, REAR WHEEL (SILVER)

65310-19B11-12R

2
Out of stock

4

WASHER,10.5X22X This part replaces 09160-10119.

09160-10143

8
Out of stock

5

NUT This part replaces 08316-10103.

08316-1010B

8
Out of stock

6

WASHER

09164-18004

2
Out of stock

7

NUT, HUB

09141-18008

2

$8.27

In stock

8

PIN, COTTER This part replaces 04111-40408.

04111-4040A

2
Out of stock

9

HOLDER, CAP

64726-19B00

2

$3.39

In stock

10

CAP, WHEEL CENTER

54725-39D00

2

$15.15

In stock

11

SPACER, HUB LH

64113-19B10

1
Out of stock

12

AXLE, REAR

64710-19B10

2
Out of stock

13

DRUM, BRAKE

64120-19B00

1
Out of stock

14

1

$3.79

In stock

15

PANEL, BRAKE ANCHOR

64210-19B02

1
Out of stock

16

0 RING, PANEL (ID:69.5, DD:2.00) | RIN

09280-70010

10
Out of stock

17

UNION

09364-12002

2
Out of stock

18

SHOE SET, BRAKE

64400-19820

1
Out of stock

19

SPRING, SHOE

55420-30000

2
Out of stock

20

CAM, REAR BRAKE

64440-19B00

1
Out of stock

21

DUST SEAL, DRUM

64124-19B00

1
Out of stock

22

0 RING

64443-18A00

2
Out of stock

23

WASHER

09160-16003

1
Out of stock

24

LEVER, CAM

64451-19B01

1
Out of stock

25

BOLT This part replaces 01550-06253.

01550-0625A

1
Out of stock

26

SPRING This part replaces 09443-13022.

09443-13022-XC0

1
Out of stock

27

BOLT, BRACE This part replaces 01570-08203.

01570-0820A

4
Out of stock

28

TIRE, T/L REAR (AT25x12-10) DUNLOP

65100-19B60

2
Out of stock

29

VALVE ASSY, WHEEL RIM TR413

43130-78030

2
Out of stock

30

PLUG, DRAIN HOSE

13877-00190

1
Out of stock

31

HOSE,11X15X2000 This part replaces 09352-11153-00B.

09352-11154-00B

1
Out of stock

32

HOSE This part replaces 09352-11153-600.

09352-11154-600

1
Out of stock

33

CLAMP, BRATHER HOSE (L:95)

09407-11401

1
Out of stock

34

CLIP, HOSE

09401-14301

3
Out of stock

35

BRACKET, BRAKE COVER

64260-19B00

1
Out of stock

36

OVER, REAR BRAKE

64265-19B00

1
Out of stock

37

1

$1.34

In stock

38

NUT This part replaces 08310-00043.

08310-0004A

1
Out of stock

39

PLATE, TRIR TOW

95210-20B00

1
Out of stock

40

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

2
Out of stock

41

BOLT, PROP SHAFT REAR This part replaces 01550-10203.

01550-1020A

2
Out of stock
