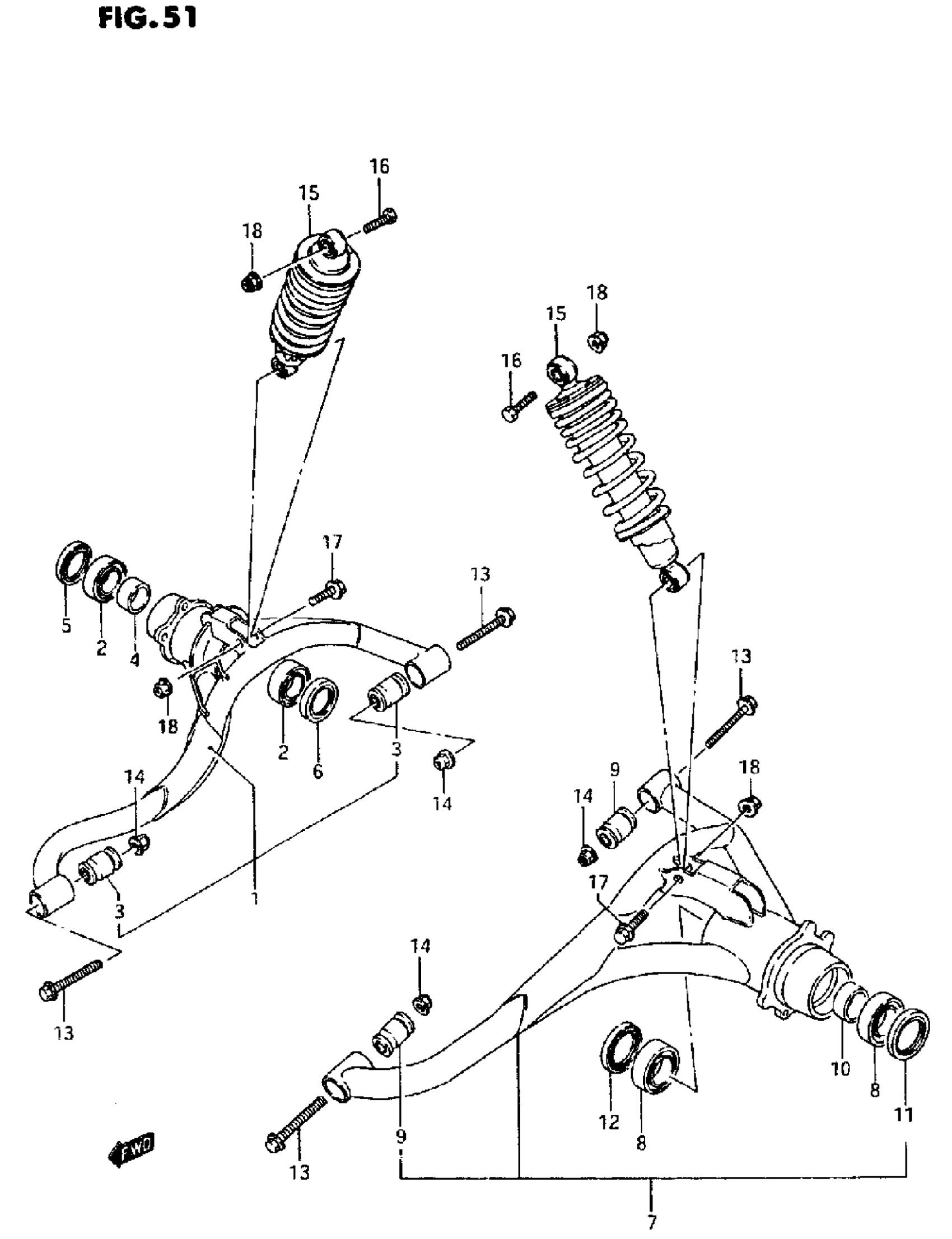

Suzuki LT-4WDX (1997) REAR SUSPENSION ARM Diagram

#

Description
Price

1

ARM SET, SUSPENSION RH

61100-19860-019

Unavailable

2

BEARING,DRIVEN This part replaces 09262-32008.

09262-32023

$28.60

3

BUSHING

09319-10030

$10.63

4

SPACER (32.4X38XL7)

09180-32007

$17.95

5

SEAL, DUST OUTER (40X58X6)

09283-40018

$13.49

6

SEAL, DUST INNER (4OX58X8)

09283-40019

$15.39

7

ARM SET, SUSPENSION LH | BLACK

61100-19871-019

Unavailable

8

BEARING,DRIVEN This part replaces 09262-32008.

09262-32023

$28.60

9

BUSHING

09319-10030

$10.63

10

SPACER (32.4X38XL7)

09180-32007

$17.95

11

SEAL, DUST OUTER (4OX58X6)

09283-40018

$13.49

12

SEAL, DUST INNER (4OX58X8)

09283-40019

$15.39

13

BOLT,10X77 This part replaces 09103-10247.

09103-10247-XC0

$5.51

14

NUT This part replaces 08319-31105.

08319-3110A

$2.73

15

ABSORBER ASSY, REAR SHOCK (BLACK) | ABSOR This part replaces 62100-19B10-019.

62100-19B20-019

Unavailable

16

BOLT, UPPER (LOX38)

09100-10227

$3.80

17

BOLT, LOWER (LOX37)

09103-10019

$2.71

18

NUT

08319-31107

$2.73
