1997 Suzuki LT-4WDX Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 1997 Suzuki LT-4WDX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

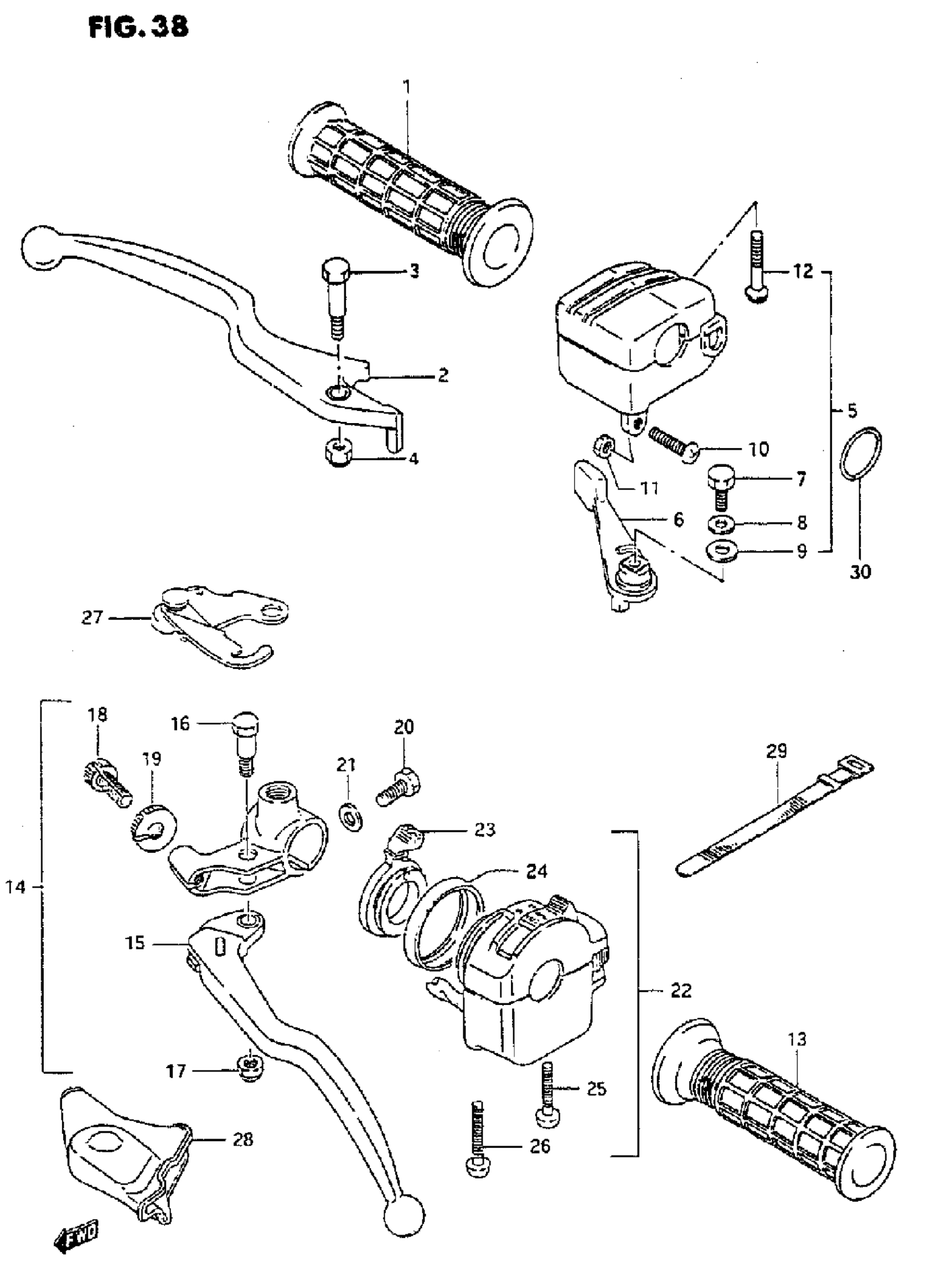

1997 Suzuki LT-4WDX Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP This part replaces 57211-19A03-291.

57211-19A04-291

1
Out of stock

2

LEVER, BRAKE

57421-39D10

1
Out of stock

3

BOLT This part replaces 57431-13030.

09111-06075

1
Out of stock

4

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

5

CASE ASSY, THROTTLE This part replaces 57100-19B02.

57100-39DB0

1
Out of stock

6

LEVER

57151-24301

1
Out of stock

7

BOLT This part replaces 01500-06163.

01500-0616A

1
Out of stock

8

1

$1.97

In stock

9

WASHER

09160-06019

1
Out of stock

10

SCREW

09125-05066

1
Out of stock

11

.NUT This part replaces 08310-22055.

09140-05006

1
Out of stock

12

SCREW

02132-05307

2
Out of stock

13

GRIP This part replaces 57211-19A03-291.

57211-19A04-291

1
Out of stock

14

LEVER ASSY, REAR BRAKE

57500-24502

1
Out of stock

15

LEVER

57620-24501

1
Out of stock

16

BOLT

57431-29502

1

$8.65

In stock

17

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

18

ADJUSTER

57441-44400

1

$8.33

In stock

19

NUT This part replaces 57442-44400.

57442-11010

1
Out of stock

20

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

1
Out of stock

21

.WASHER This part replaces 08322-01063.

08322-0106B

1
Out of stock

22

1

$196.25

In stock

23

LEVER, CHOKE

37571-19B01

1
Out of stock

24

COVER, CHOKE

37576-19B01

1
Out of stock

25

SCREW This part replaces 02112-05403.

02112-0540B

1
Out of stock

26

.SCREW This part replaces 02112-05455.

02112-0545B

1
Out of stock

27

STOPPER, BRAKE

57790-19B00

1
Out of stock

28

1

$11.55

In stock

29

BAND

09407-12402

2
Out of stock

30

0 RING

09280-24009

1

$8.81

In stock
