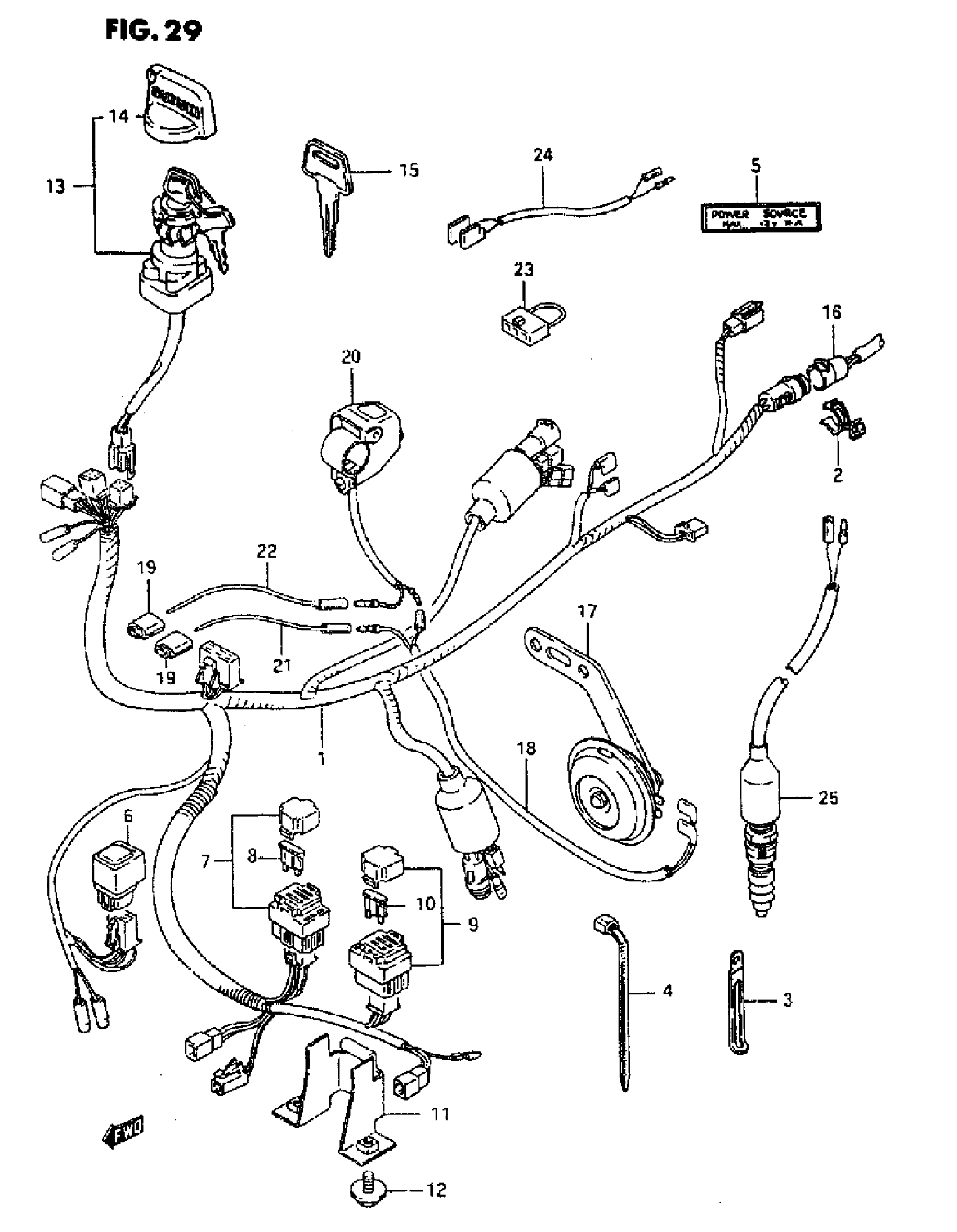

Suzuki LT-4WD (1997) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS

36610-39DC0

Unavailable

2

CLAMP

09403-16307

$2.53

3

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

4

CLAMP (L:125)

09407-14403

$2.26

4

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

5

LABEL, POWER SOURCE

38852-19810

Unavailable

6

RELAY, NEUTRAL START

38730-19B00

$40.44

7

BOX ASSY, MAIN FUSE

36740-24B01

$28.18

8

FUSE (20A)

09481-20101

$2.12

9

BOX ASSY, POWER SOURCE FUSE

36740-04701

$22.22

10

FUSE (15A)

09481-15101

$2.53

11

HOLDER, ELECTRIC PARTS FRONT

47410-19B00

$12.40

12

BOLT (6X12) This part replaces 09118-06103.

09118-06055

$2.80

13

SWITCH ASSY,IGN This part replaces 37110-19B02.

37110-19B03

$127.03

14

MASCOT, KEY

37142-19800

Unavailable

15

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

15

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

16

PLUG ASSY, POWER SOURCE | OPT

39602-18A00

Unavailable

17

NO DESCRIPTION AVAILABLE | OPT This part replaces 38500-19B02.

38500-09F01

Unavailable

18

LEAD WIRE, HORN | OPT

36852-19B00

Unavailable

19

CONNECTOR, LEAD WIRE | OPT

36859-36590

$7.32

20

SWITCH ASSY, HORN | OPT This part replaces 37830-18A00.

37830-27H00

$45.83

21

LEAD WIRE, HORN SWITCH | OPT

36851-19B00

Unavailable

22

LEAD WIRE. HORN SWITCH | OPT

36851-19B10

Unavailable

23

LEAD WIRE, DAY LIGHTING | OPT

36853-35B00

Unavailable

24

WIRE, FRONT BRAKE SW LEAD | T

36856-35800

Unavailable

25

SWITCH ASSY,STO | T This part replaces 37740-25C00.

37740-25C01

Unavailable

26

BACKUP LAMP& BUZZER SET

38700-19860

Unavailable
