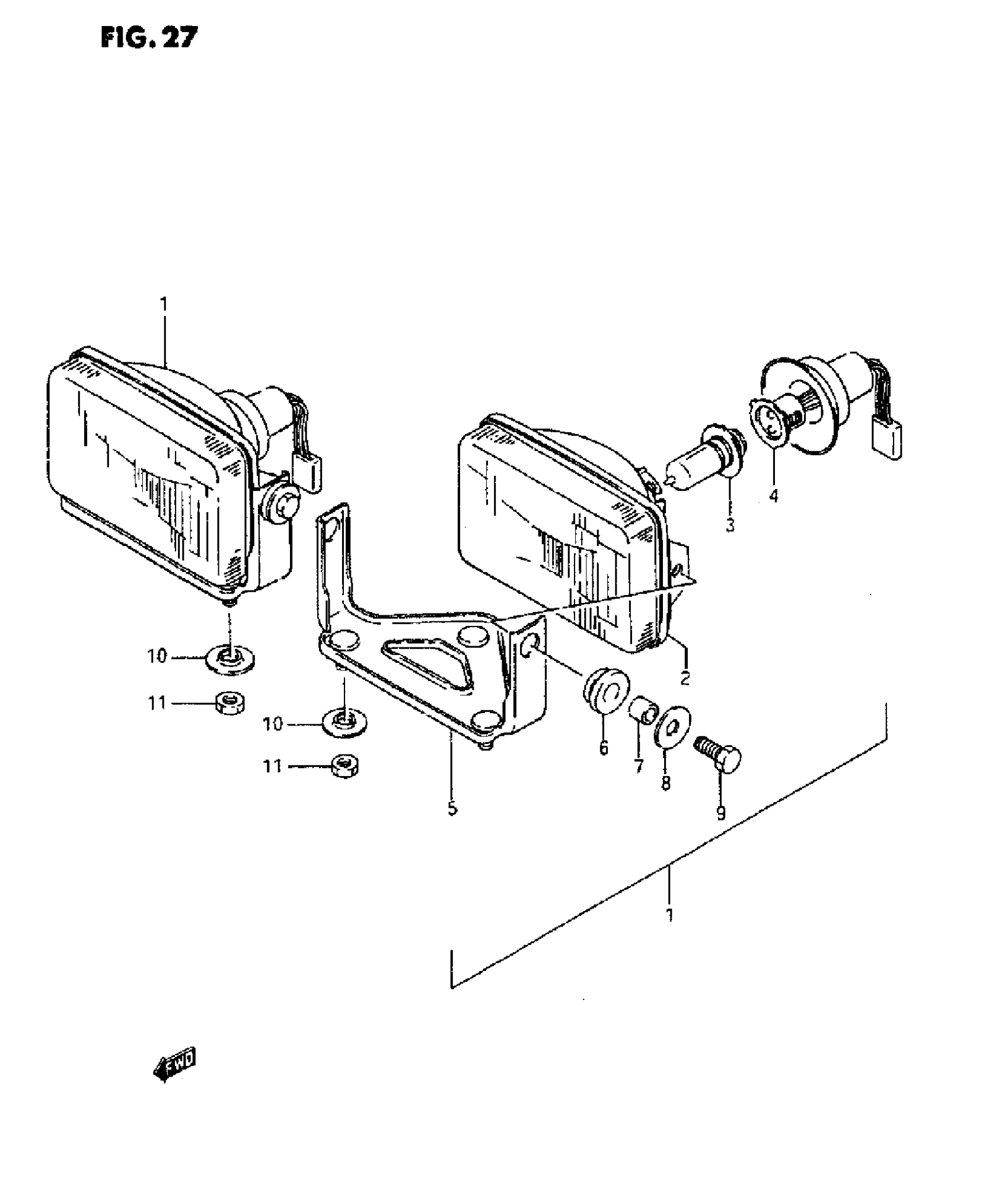

Suzuki LT-4WD (1997) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY

35100-19B03

Unavailable

2

UNIT, LAMP

35121-19B00

Unavailable

3

BULB (12V, 30/30W,

09471-12093

$29.38

4

SOCKET

35171-19803

Unavailable

5

BRACKET LAMP

35141-19B00

Unavailable

6

CUSHION

35139-45230

$1.98

7

SPACER

35133-19B00

Unavailable

8

WASHER

U9160-06057

Unavailable

9

BOLT

09100-06067

Unavailable

10

WASHER This part replaces 09169-06028.

09169-06041

$2.20

11

NUT This part replaces 08310-00063.

08310-0006A

$1.84
