1997 Suzuki LT-4WD Cylinder Head Diagram

← All diagrams

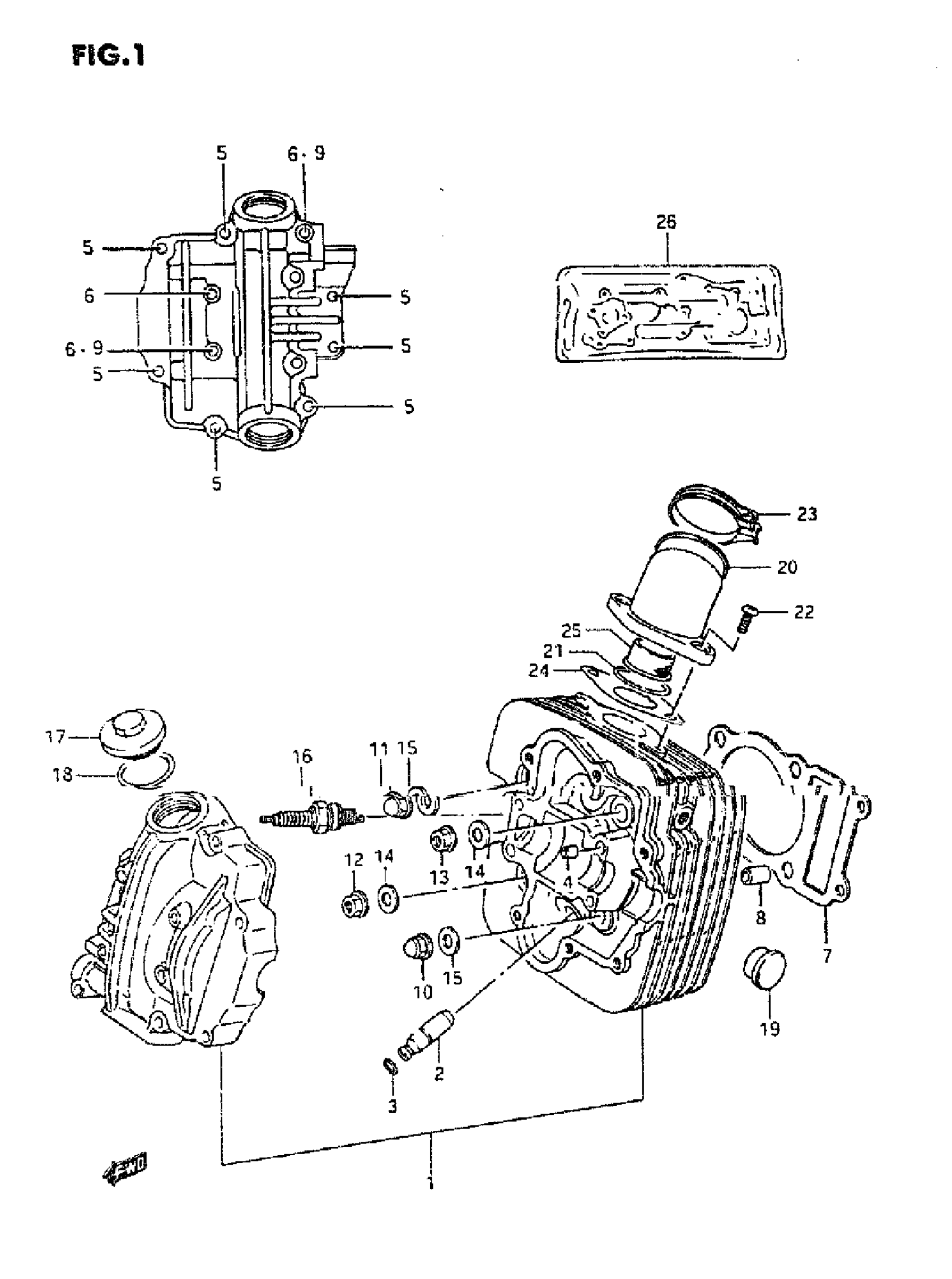

Find the part on the Cylinder Head diagram for your 1997 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki LT-4WD Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ILSSY, CYLINDER

11100-19B01

1
Out of stock

2

GUIDE, VALVE (0S:0.3)

11115-05270

2
Out of stock

3

.RING (10X85)

09381-10004

2
Out of stock

4

PIN

09206-08001

2
Out of stock

5

BOLT This part replaces 01550-06353.

01550-0635A

7
Out of stock

6

BOLT This part replaces 01550-06603.

01550-0660A

3
Out of stock

7

GASKET, CYLINDER HEAD

11141-19B00

1
Out of stock

8

PIN

04211-11169

2
Out of stock

9

GASKET

09168-06023

2
Out of stock

10

NUT

09159-08074

1
Out of stock

11

NUT

09159-08074

1
Out of stock

12

NUT This part replaces 08316-10083.

08316-1008B

1
Out of stock

13

NUT This part replaces 08316-10083.

08316-1008B

1
Out of stock

14

GASKET

09168-08021

2
Out of stock

15

GASKET (8.5XL7X2.3)

09168-08021

2
Out of stock

16

SPARK PLUG (NGK,DR7EA) This part replaces 09482-00182.

09482-00398

1
Out of stock

17

CAP INSPECTION This part replaces 11175-37111.

11175-18920

2
Out of stock

18

.O RING (D:3,ID:29.5)

09280-30001

2
Out of stock

19

PLUG, HEAD

09241-22002

1
Out of stock

20

PIPE ASSY,INTAK This part replaces 13110-19B52.

13101-19B51

1
Out of stock

21

0 RING (D:2.1, ID:34.7)

09280-35005

1
Out of stock

22

SCREW This part replaces 02112-76203.

02112-7620B

2
Out of stock

23

CLAMP

09402-50208

1
Out of stock

24

GASKET, INTAKE PIPE

13120-19B01

1
Out of stock

25

NET, INTAKE

13130-19B50

1
Out of stock

26

GASKET SET This part replaces 11401-19861.

11401-19864

1
Out of stock
