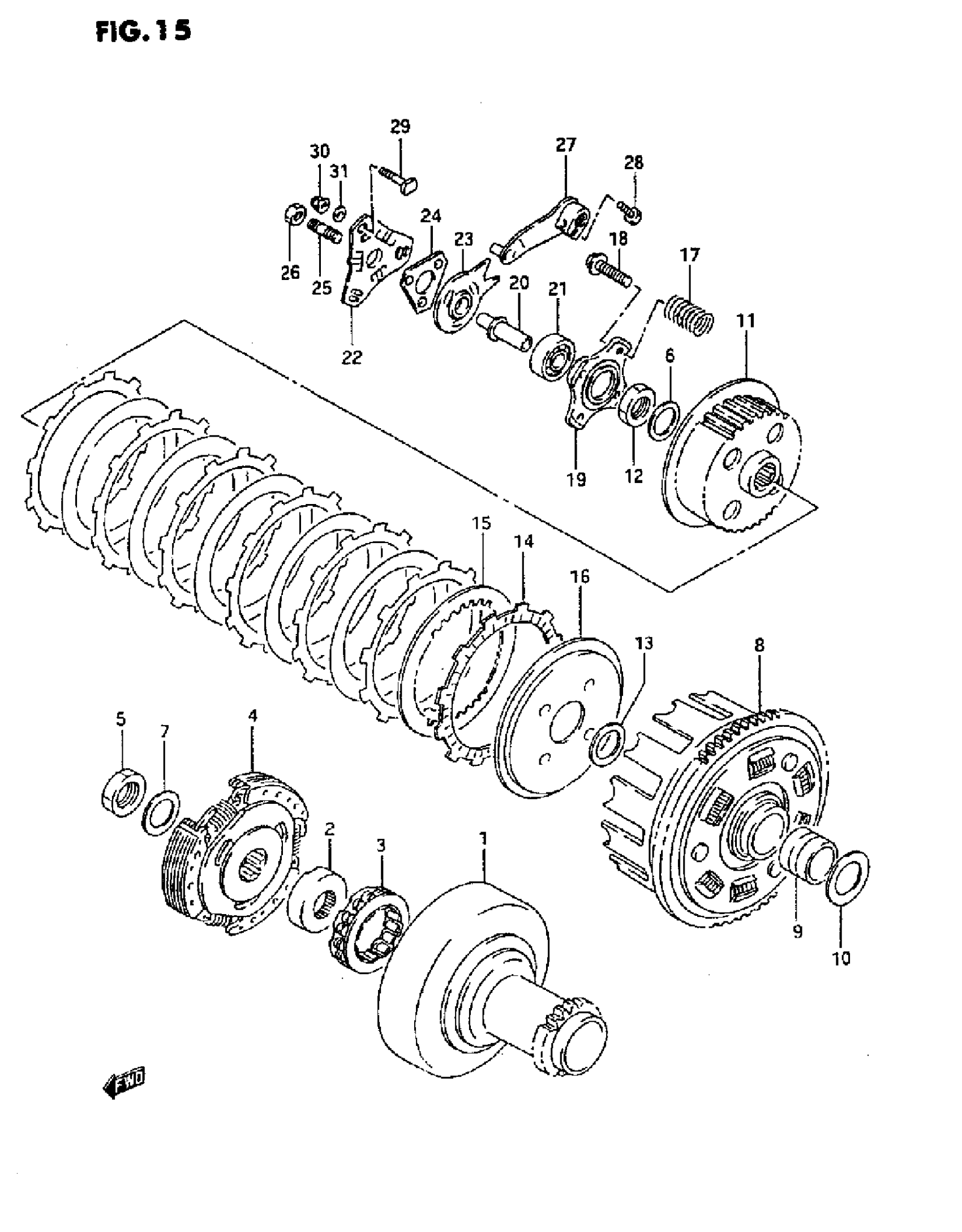

Suzuki LT-4WD (1997) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (NT:20)

21110-19811

Unavailable

2

RACE, INNER

21631-19810

Unavailable

3

CLUTCH, ONE WAY

21273-19B10

$163.13

4

CLUTCH ASSY,SHO This part replaces 21500-19B21.

21500-19B22

$223.77

5

NUT

09140-18012

$8.37

6

LOCK WASHER (20.1X32X2)

09164-20007

$4.60

7

LOCK WASHER (ID:18.3) This part replaces 09164-18007.

09164-18001

$3.24

8

GEAR ASSY, PRIMARY DRIVEN

21200-19B03

Unavailable

9

SPACER

09180-22035

$21.22

10

WASHER (22X36X1.0) This part replaces 08211-22361.

09181-22251

$3.78

11

HUB, CLUTCH

21410-24500

Unavailable

12

NUT

09140-20001

$3.37

13

WASHER

08211-20323

$3.03

14

PLATE, DRIVE

21441-22A01

$14.73

15

PLATE, DRIVEN

21451-01B40

$8.40

16

DISC, PRESSURE

21462-24501

$53.90

17

SPRING

09440-19017

$4.33

18

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

19

PLATE, RELEASE

21465-24500

$19.15

20

PIECE, PUSH

23121-19B00

Unavailable

21

BEARING

09262-12001

$18.47

22

GUIDE, BALL OUTER

23231-19B10

Unavailable

23

GUIDE, BALL INNER

23211-24201

Unavailable

24

BALL, RELEASE

23250-31003

$28.18

25

SCREW, ADJUSTER

09134-08009

$3.87

26

NUT, ADJUSTER

09140-08019

$2.23

27

ARM, RELEASE

23220-24500

$32.92

28

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

29

BOLT

09119-06068

$2.53

30

NUT This part replaces 08313-20063.

08313-2006A

$1.97

31

SEAL, BOLT

09168-06023

$2.35
