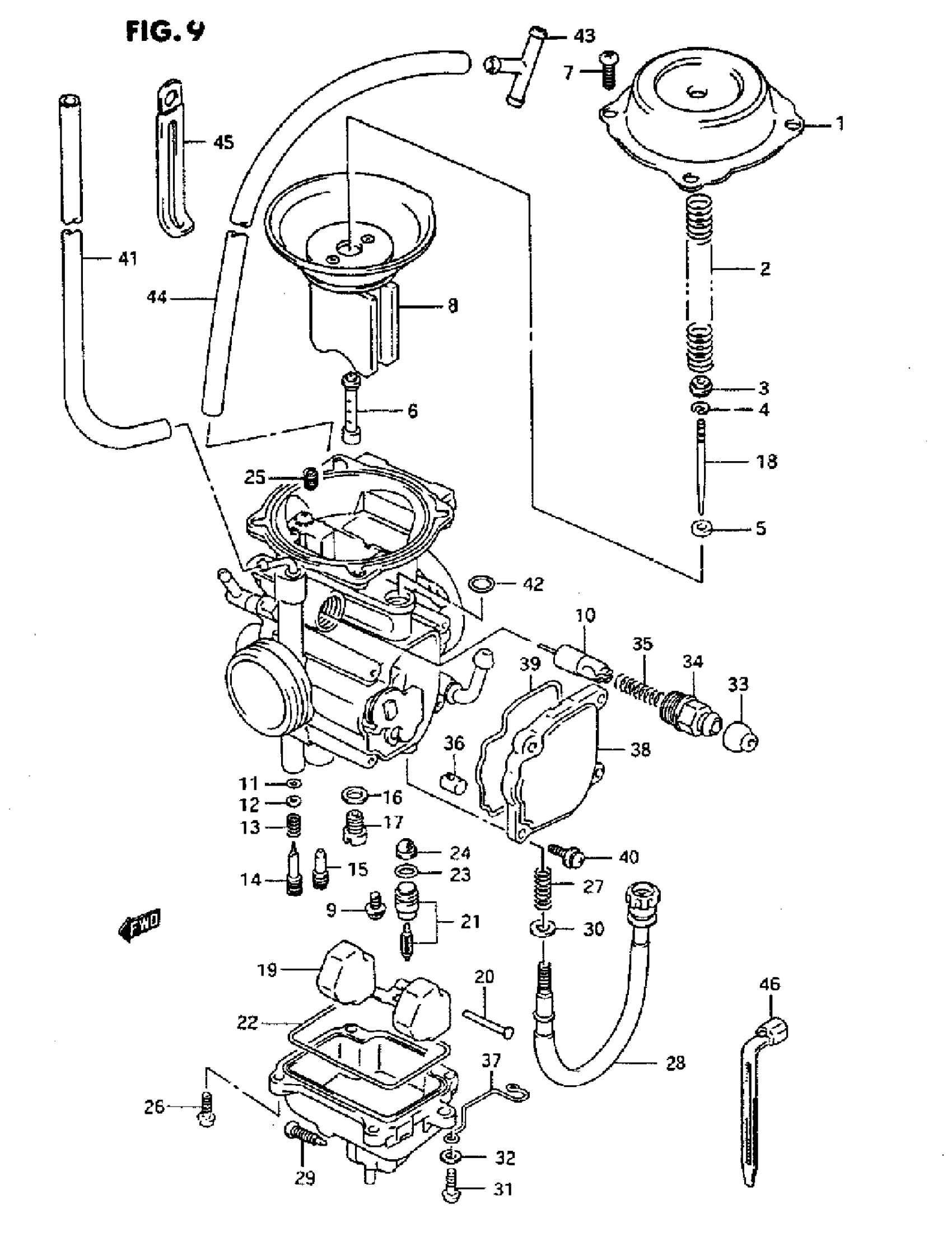

Suzuki LT-4WD (1997) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY This part replaces 13200-19BA1.

13200-19BA3

Unavailable

1

COVER

13502-42A00

$38.47

2

SPRING

13417-42A00

$6.79

3

RING

13382-42A00

$4.48

4

E RING

13394-10010

$5.45

5

RING

13387-47010

$7.22

6

JET, NEEDLE (P-4)

09494-00512

Unavailable

7

SCREW

02112-04087

$1.49

8

DIAPHRAGM ASSY This part replaces 13500-19B62.

13500-19B63

Unavailable

9

SCREW

13602-43410

$2.92

10

PLUNGER ASSY

13411-19850

Unavailable

11

O-RING This part replaces 13295-29900.

13295-29901

$4.34

12

WASHER

13291-29900

$1.98

13

.SPRING (NT:45)

13268-47070

$4.34

14

SCREW, PILOT (2 7/8)

13279-47070

$13.36

15

JET, PILOT (40)

09492-40014

$9.38

16

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

17

JET, MAIN (122.5)

09491-24013

$11.38

18

NEEDL-E, JET (J8-5D67)

13383-19860

Unavailable

19

FLOAT

13250-42A00

$34.08

20

PIN

13254-92311

$2.07

21

VALVE ASSY, NEEDLE

13370-44500

$50.98

22

0 RING, FLOAT CHAMBER

13251-42A00

$9.03

23

O RING This part replaces 13374-44080.

13374-35C00

$5.99

24

FILTER This part replaces 13376-84110.

13376-19F00

$10.28

25

JET, PILOT AIR (160)

09493-32002

$16.57

26

SCREW This part replaces 02112-04123.

02112-0412A

$1.49

27

SPRING

13268-19B50

$4.28

28

ADJUSTER

13267-19B70

$50.69

29

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

30

WASHER

13615-45010

$3.25

31

SCREW This part replaces 02112-04163.

02112-0416A

$1.49

32

WASHER This part replaces 08322-01043.

08322-0104A

$1.91

33

.CAP This part replaces 13681-04010.

13681-04011

$4.93

34

HOLDER, GUIDE

13418-43410

$7.22

35

SPRING

13417-43010

$4.34

36

GUIDE, CABLE

13591-19B50

$10.28

37

CLIP

13692-19B60

Unavailable

38

COVER

13502-19B50

$20.10

39

O RING

13251-19B50

$12.30

40

SCREW

13602-19B50

$3.43

41

HOSE(4.5X8.5X60 This part replaces 09355-45855-600.

09355-45001-600

$9.48

42

O RING (D:1.7,ID:6.0) This part replaces 09280-06009.

09280-06008

$2.03

43

UNION, 3 WAY

09367-08004

$4.83

44

HOSE, AIR VENT (5X8.2X2000) | L:2000->650

09359-50823-00B

Unavailable

45

CLAMP, AIR VENT HOSE

09404-06435

$3.68

46

CLAMP, BOOST HOSE

09407-14403

$2.26
