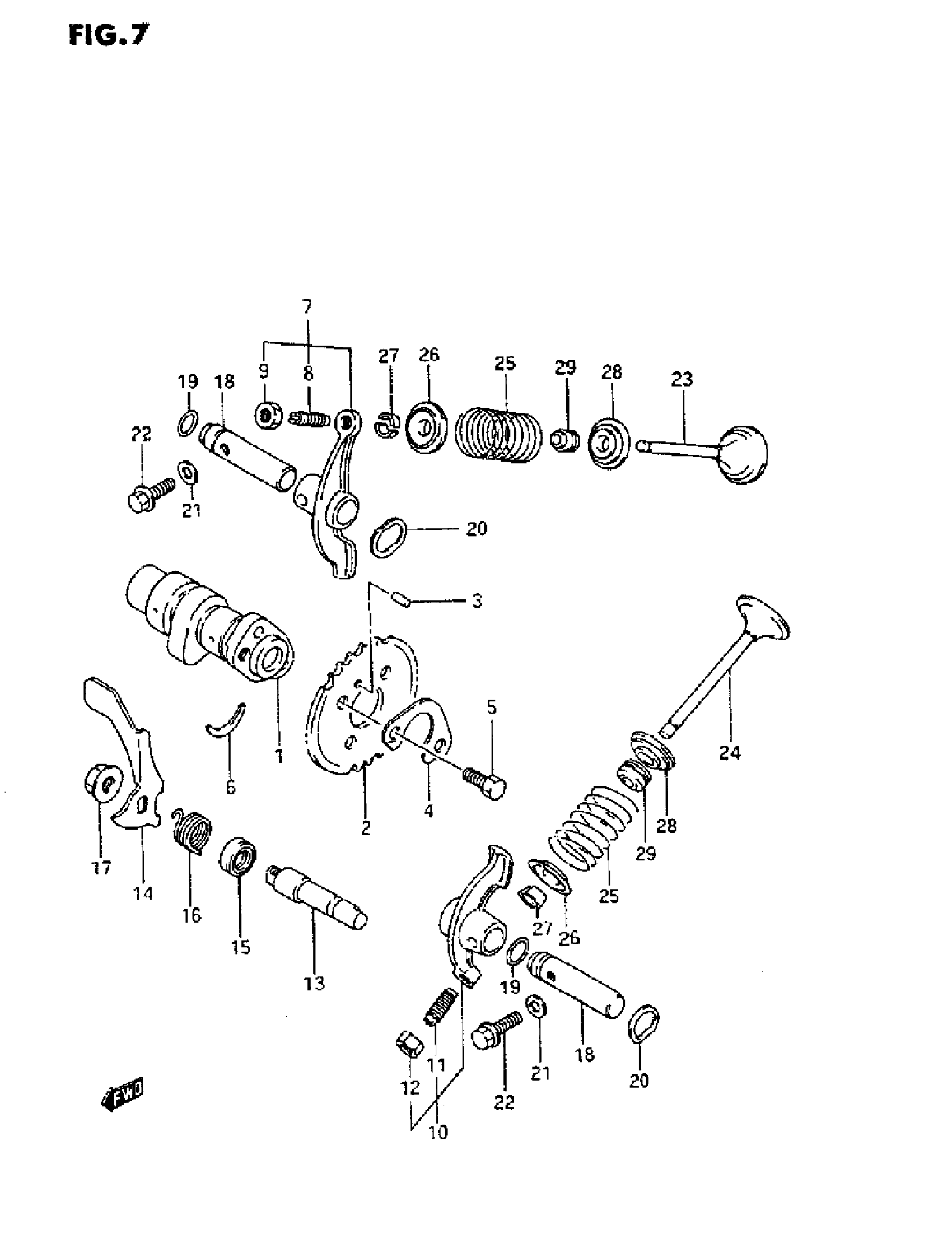

Suzuki LT-4WD (1997) CAM SHAFT-VALVE Diagram

#

Description
Price

1

CAM SHAFT

12711-18A00

$182.90

2

SPROCKET, CAMSHAFT (NT:32)

12741-05201

$22.98

3

PIN

09262-05005

Unavailable

4

WASHER, SPROCKET This part replaces 12747-05201.

12747-05202

$2.51

5

BOLT (6XL0.5)

09111-06032

$2.21

6

C-RING

09390-22002

$2.27

7

ARM, VALVE ROCKER, IN

12850-25000

Unavailable

8

.SCREW, TAPPET ADJUSTING

12842-32411

$5.24

9

.NUT, ADJUSTING SCREW

12843-32400

$2.79

10

ARM, VALVE ROCKER, EX

12850-25000

Unavailable

11

.SCREW, TAPPET ADJUSTING

12842-32411

$5.24

12

.NUT, ADJUSTING SCREW

12843-32400

$2.79

13

SHAFT, DECOMP

12941-19B00

$29.25

14

LEVER, DECOMP SHAFT

12942-19B01

$5.60

15

OIL SEAL (LOXL7X6)

09282-10014

$6.70

16

SPRING

09448-17014

$4.07

17

NUT This part replaces 08316-10083.

08316-1008B

$2.66

18

SHAFT, VALVE ROCKER ARM

12861-05201

$19.72

19

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

20

WASHER

09164-12021

$2.03

21

GASKET

09168-06023

$2.35

22

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

23

VALVE, INTAKE

12911-19B00

$39.48

24

VALVE, EXHAUST

12912-18A00

$62.11

25

SPRING, VALVE

12921-19B00

$14.85

26

RETAINER, SPRING This part replaces 12931-19B00.

12931-19B01

$11.95

27

COTTER, VALVE

12932-24400

$1.94

28

SEAT, SPRING

12933-19B00

$8.30

29

OIL SEAL (5.5XLLX8.2)

09289-05015

$6.70
