1995 Suzuki LT-4WD Recoil Starter Diagram

← All diagrams

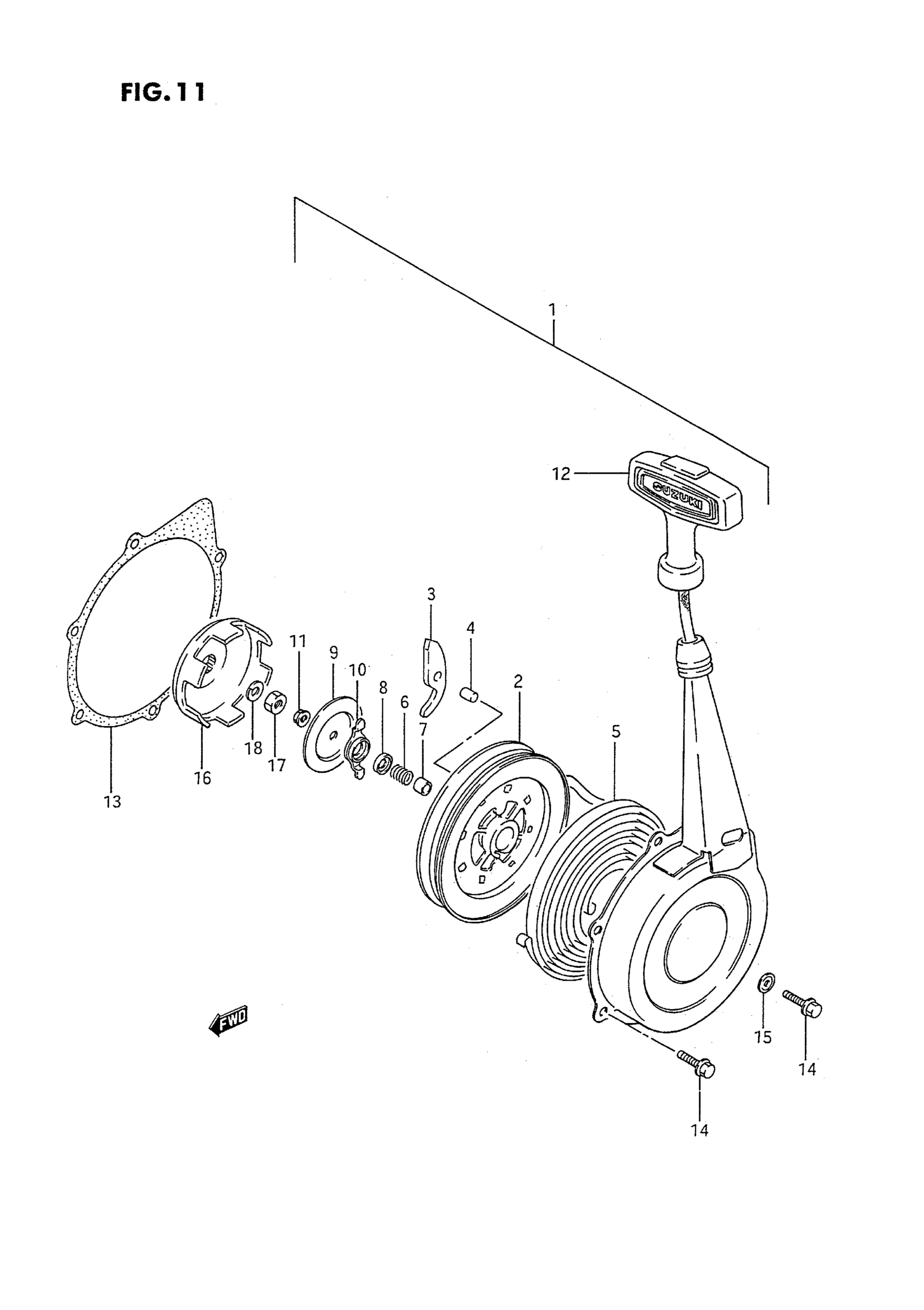

Find the part on the Recoil Starter diagram for your 1995 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki LT-4WD Recoil Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSY,RE | %F.NO.102101 This part replaces 18100-19B00.

18100-19B03

1
Out of stock

1

STARTER ASSY,RE | F.NO.102102%; Includes Item(s) 2 - 12 This part replaces 18100-19B01.

18100-19B03

1
Out of stock

2

REEL

18120-24400

1

$36.85

In stock

3

RATCHET

18131-24411

1
Out of stock

4

PIN, RATCHET

18344-24400

1
Out of stock

5

.SPRING,SPIRAL

18142-24400

1
Out of stock

6

SPRING, FRICTION

18153-24400

1
Out of stock

7

SHAFT, SUB

18176-24400

1
Out of stock

8

COVER, SPRING

18275-24400

1
Out of stock

9

RATCHET SET This part replaces 18151-24400.

18130-24400

1
Out of stock

10

..GUIDE,RATCHET

18132-24400

1
Out of stock

11

NUT This part replaces 18334-24400.

08316-1006B

1
Out of stock

12

1

$35.14

In stock

12

ROPE ASSY (ROPE OD:6) | FOR 18100-19B01

18200-19B01

1
Out of stock

13

GASKET, RECOIL This part replaces 18299-19B10.

18299-19B11

1
Out of stock

14

BOLT, EXHAUST DRAIN | MODEL H/J/K/L/M/N/P This part replaces 01547-06125.

01547-06127

6
Out of stock

14

BOLT | MODEL R/S This part replaces 01547-06123.

01547-0612B

6
Out of stock

15

GASKET

09168-06023

1
Out of stock

16

CUP, STARTER

18410-19B01

1
Out of stock

17

NUT | MODEL H/J/K/L/M/N/P This part replaces 08310-12108.

08310-00107

1
Out of stock

17

1

$2.02

In stock

18

LOCK WASHER | MODEL H/J/K/L/M/N/P This part replaces 08321-21107.

08321-01107

1
Out of stock
