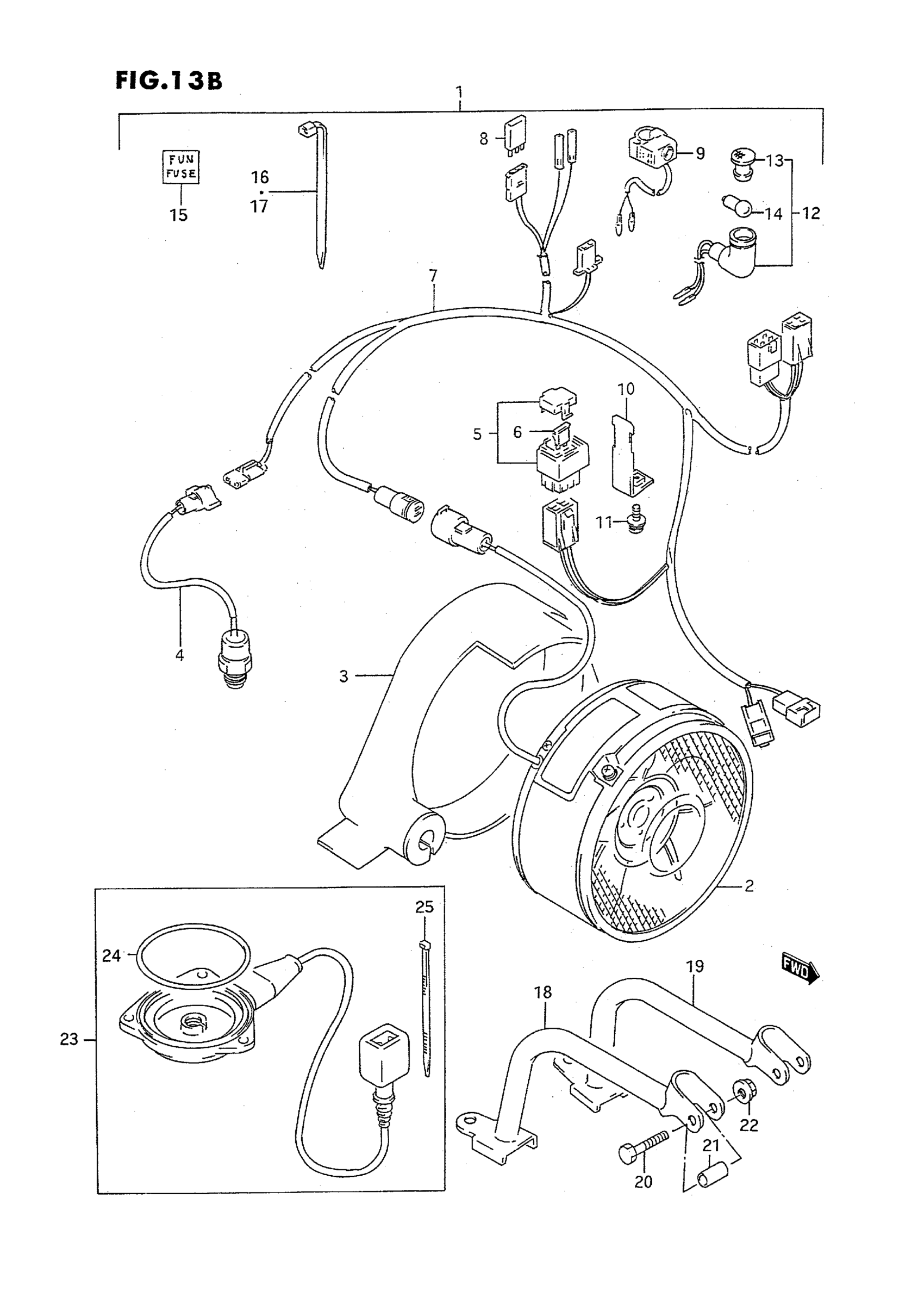

Suzuki LT-4WD (1995) COOLING FAN (MODEL N/P/R/S:OPTIONAL) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 22 This part replaces 17000-19831.

17000-19852

Unavailable

2

FAN ASSY, COOLING

17110-19B00

Unavailable

3

BAND, COOLING FAN

17121-19B01

Unavailable

4

SWITCH, COOLING FAN

17680-19B70

$111.61

5

BOX ASSY, FUSE

36740-24510

Unavailable

6

FUSE (10A)

09481-10101

$0.68

7

LEAD WIRE

36610-19B70

Unavailable

8

.DIODE This part replaces 36611-38A00.

36611-38A10

$12.39

9

SWITCH ASSY, MANUAL

37910-19B10

Unavailable

10

BRACKET, COOLING FAN FUSE

38620-04570

Unavailable

11

SCREW (6X12)

09138-06024

Unavailable

12

LAMP ASSY, FAN WARNING

36360-19B00

Unavailable

13

LENS

36361-43200

$6.00

14

BULB (12V,3.4W)

09471-12001

$1.67

15

LABEL, FAN WARNING

36367-19B00

Unavailable

16

CLAMP (L:125)

09407-14403

$2.24

17

CLAMP (L:165)

09407-18402

$2.21

18

TUBE, COOLING FAN RH

41970-19B20

Unavailable

19

TUBE, COOLING FAN LH

41980-19B21

Unavailable

20

BOLT (8X35) | MODEL N/P This part replaces 01517-08355.

01550-0835A

$2.80

20

BOLT (8X35) | MODEL R/S This part replaces 01550-08353.

01550-0835A

$2.80

21

SPACER (L:19)

09180-08067

$2.40

22

NUT | MODEL N/P This part replaces 08316-16085.

08316-1008B

$2.65

22

NUT | MODEL R/S This part replaces 08316-10083.

08316-1008B

$2.65

23

HEATER SET, ENGINE | Includes Item(s) 24 - 25 This part replaces 16900-19B00.

16900-19810

Unavailable

24

O RING

09280-82001

$4.66

25

CLAMP

09407-14403

$2.24
