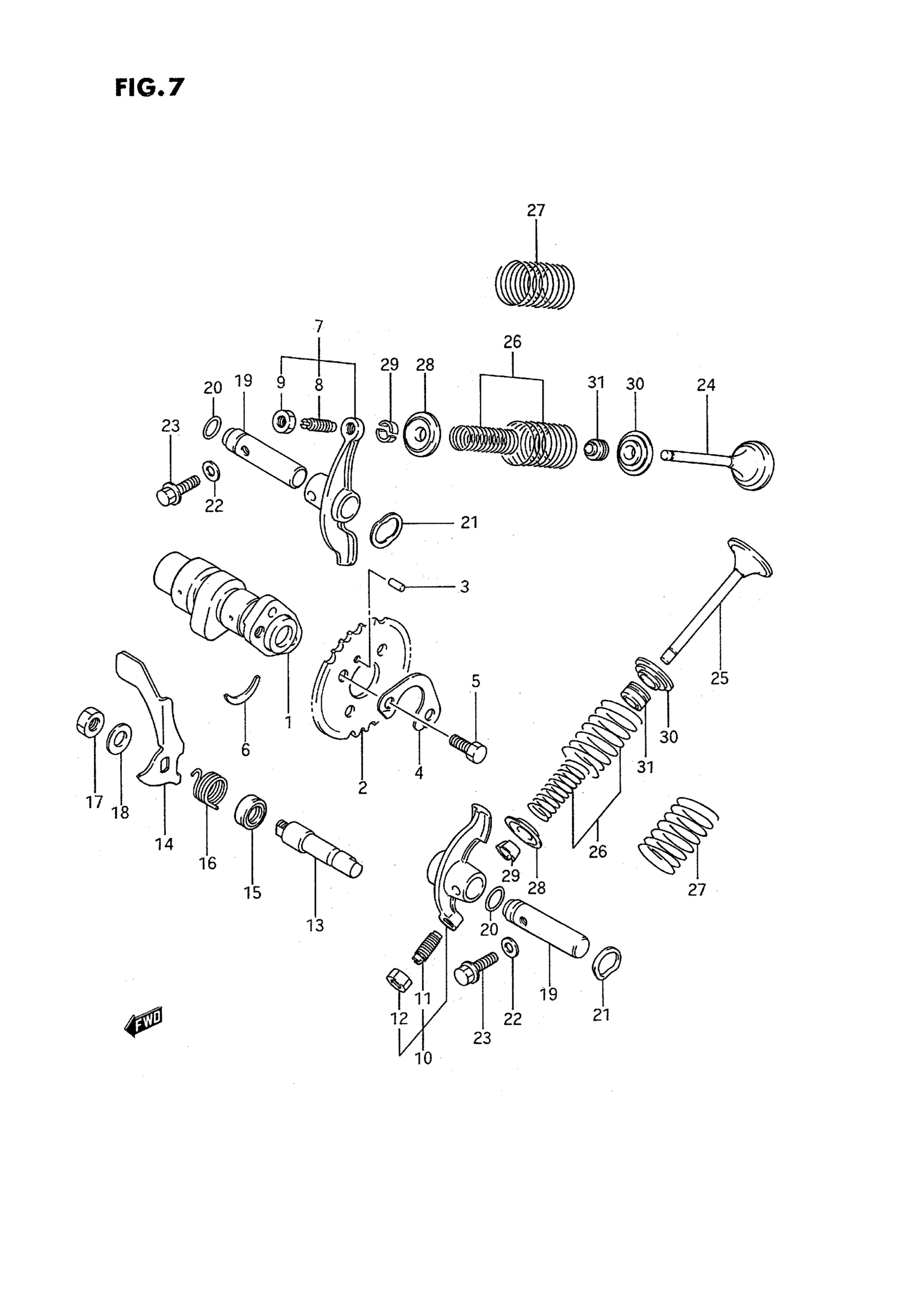

Suzuki LT-4WD (1995) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT | MODEL H

12711-22A00

Unavailable

1

CAM SHAFT | MODEL J/K/L/M/N/P/R/S

12711-18A00

$203.53

2

SPROCKET, CAMSHAFT (NT:32)

12741-05201

$25.93

3

PIN

09261-05005

$1.43

4

WASHER, SPROCKET This part replaces 12747-05201.

12747-05202

$2.53

5

BOLT

09111-06032

$2.12

6

C-RING

09390-22002

$2.33

7

ARM ASSY, VALVE ROCKER | MODEL H/J/K This part replaces 12840-05200.

12850-25C00

$39.51

7

ARM ASSY, VALVE ROCKER | MODEL L/M This part replaces 12840-25C00.

12850-25C00

$39.51

7

ARM ASSY, VALVE ROCKER | MODEL N:%E.NO.118847 This part replaces 12840-25C00.

12850-25C00

$39.51

7

ARM ASSY, VALVE ROCKER | MODEL N:E.NO.118848% This part replaces 12850-24400.

12850-25C00

$39.51

7

ARM ASSY, VALVE ROCKER | MODEL P/R This part replaces 12850-24400.

12850-25C00

$39.51

7

ARM ASSY, VALVE ROCKER | MODEL S; Includes Item(s) 8 - 9

12850-25C00

$39.51

8

.SCREW, TAPPET ADJUSTING

12842-32411

$4.93

9

.NUT, ADJUSTING SCREW

12843-32400

$2.80

10

ARM ASSY, VALVE ROCKER | MODEL H/J/K This part replaces 12850-24400.

12850-25C00

$39.51

10

ARM ASSY, VALVE ROCKER | MODEL L/M

12850-25C00

$39.51

10

ARM ASSY, VALVE ROCKER | MODEL N:%E.NO.118847

12850-25C00

$39.51

10

ARM ASSY, VALVE ROCKER | MODEL N:E.NO.118848% This part replaces 12850-24400.

12850-25C00

$39.51

10

ARM ASSY, VALVE ROCKER | MODEL P/R This part replaces 12850-24400.

12850-25C00

$39.51

10

ARM ASSY, VALVE ROCKER | MODEL S; Includes Item(s) 11 - 12

12850-25C00

$39.51

11

.SCREW, TAPPET ADJUSTING

12842-32411

$4.93

12

.NUT, ADJUSTING SCREW

12843-32400

$2.80

13

SHAFT, DECOMP | MODEL H This part replaces 12941-24402.

12941-19B00

$33.02

13

SHAFT, DECOMP | MODEL J/K/L/M/N/P/R/S

12941-19B00

$33.02

14

LEVER, DECOMP SHAFT | MODEL H/J/K/L/M/N/P/R This part replaces 12942-19B00.

12942-19B01

$6.32

14

LEVER, DECOMP SHAFT | MODEL S

12942-19B01

$6.32

15

OIL SEAL (10X17X6)

09282-10014

$6.04

16

SPRING

09448-17014

$4.42

17

NUT, ADJUSTER | MODEL H/J/K/L/M/N/P This part replaces 08310-22085.

09140-08021

$2.87

17

NUT | MODEL R/S This part replaces 08316-10083.

08316-1008B

$2.65

18

WASHER | MODEL H/J/K/L/M/N/P This part replaces 08322-11084.

08322-0108A

$2.18

19

SHAFT, VALVE ROCKER ARM

12861-05201

$22.25

20

.O RING (D:1.9,ID:8.6)

09280-09005

$3.33

21

WASHER

09164-12021

$2.01

22

GASKET

09168-06023

$2.01

23

BOLT | MODEL H/J/K/L/M/N/P This part replaces 01517-06254.

01550-0625A

$1.97

23

BOLT | MODEL R/S This part replaces 01550-06253.

01550-0625A

$1.97

24

VALVE, INTAKE

12911-19B00

$37.16

25

VALVE, EXHAUST

12912-18A00

$58.48

26

SPRING SET, VALVE | MODEL H

12920-05210

$12.95

27

SPRING, VALVE | MODEL J/K/L/M/N/P/R/S

12921-19B00

$16.77

28

RETAINER, VALVE SPRING | MODEL H This part replaces 12931-49200.

12931-49201

$6.51

28

RETAINER, SPRING | MODEL J/K/L/M/N/P/R/S This part replaces 12931-19B00.

12931-19B01

$13.50

29

COTTER, VALVE

12932-24400

$1.98

30

SEAT, VALVE SPRING | MODEL H This part replaces 12933-49200.

12933-49201

$5.50

30

SEAT, SPRING | MODEL J/K/L/M/N/P/R/S

12933-19B00

$9.37

31

OIL SEAL

09289-05015

$6.04
