1995 Suzuki LT-4WD Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1995 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

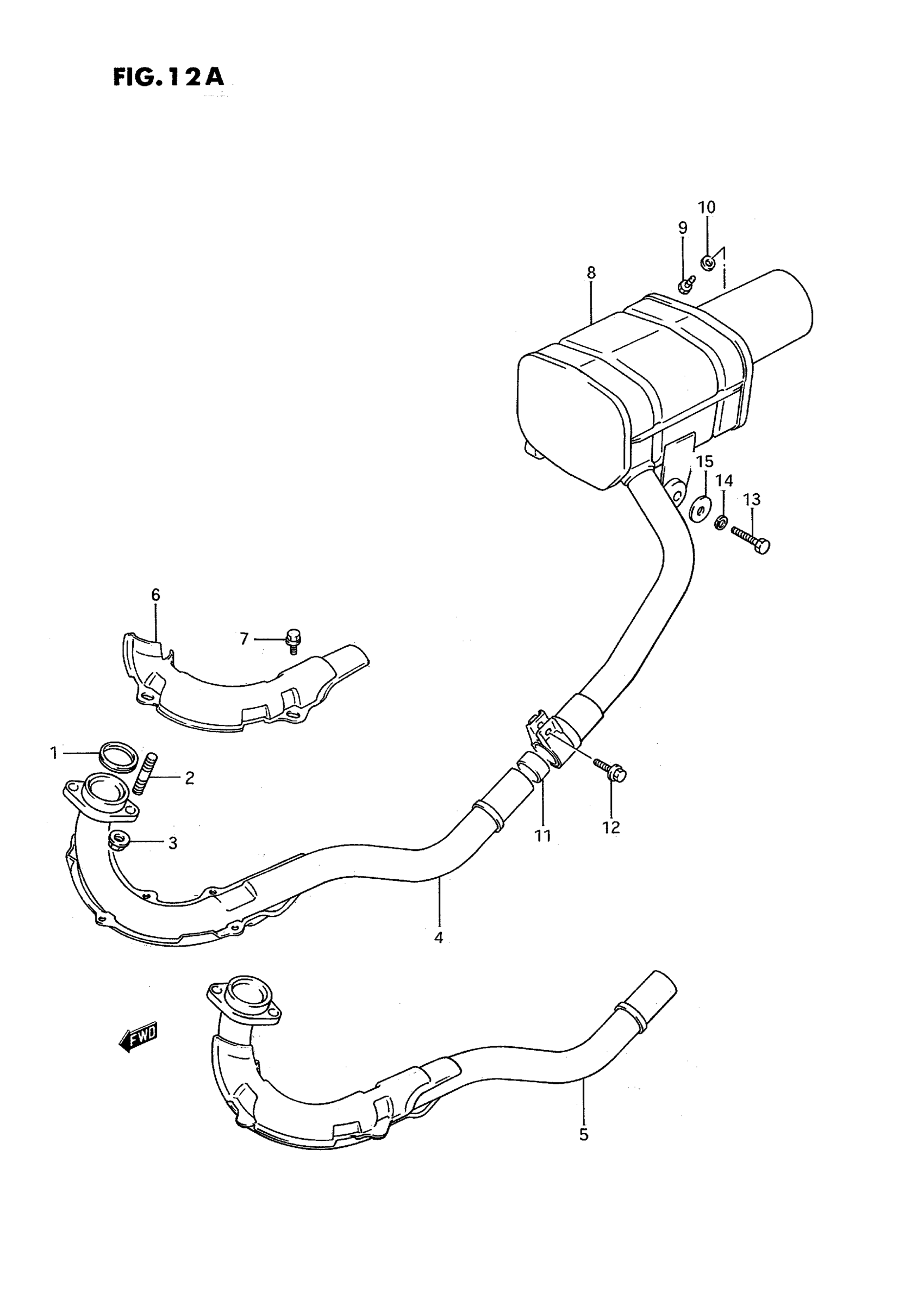

1995 Suzuki LT-4WD Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, EXHAUST PIPE This part replaces 14181-19B00.

14181-42A00

1
Out of stock

2

2

$2.07

In stock

3

NUT This part replaces 08361-15085.

08361-1508A

2
Out of stock

4

PIPE, EXHAUST | %F.NO.102066 This part replaces 14120-19B11.

14100-19B20

1
Out of stock

5

PIPE, EXHAUST | F.NO.102067%

14100-19B20

1
Out of stock

6

COVER, EXHAUST PIPE UPPER | %F.NO.102066

14190-19B20

1
Out of stock

7

BOLT,6X12 | %F.NO.102066 This part replaces 09103-06123.

09103-061V0-XC0

4
Out of stock

8

BODY,MUFFLER | !14310-19B13, USED WITH 01517-08405 This part replaces 14310-19B11.

14310-19B14

1
Out of stock

9

PLUG, DRAIN

09247-12103

2
Out of stock

10

GASKET

09168-12002

2
Out of stock

11

GASKET, MUFFLER

14773-14202

1
Out of stock

12

BOLT | FOR 14310-19B11 This part replaces 01517-08205.

01550-0820A

1
Out of stock

12

BOLT | FOR 14310-19B13 This part replaces 01517-08405.

01550-08407

1
Out of stock

13

BOLT This part replaces 01107-08258.

01500-08257

2
Out of stock

14

2

$2.28

In stock

15

WASHER (8.5X26X1.6) This part replaces 09160-08004.

09160-08134

2
Out of stock
