1995 Suzuki LT-4WD Handlebar - Control Cable Diagram

← All diagrams

Find the part on the Handlebar - Control Cable diagram for your 1995 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

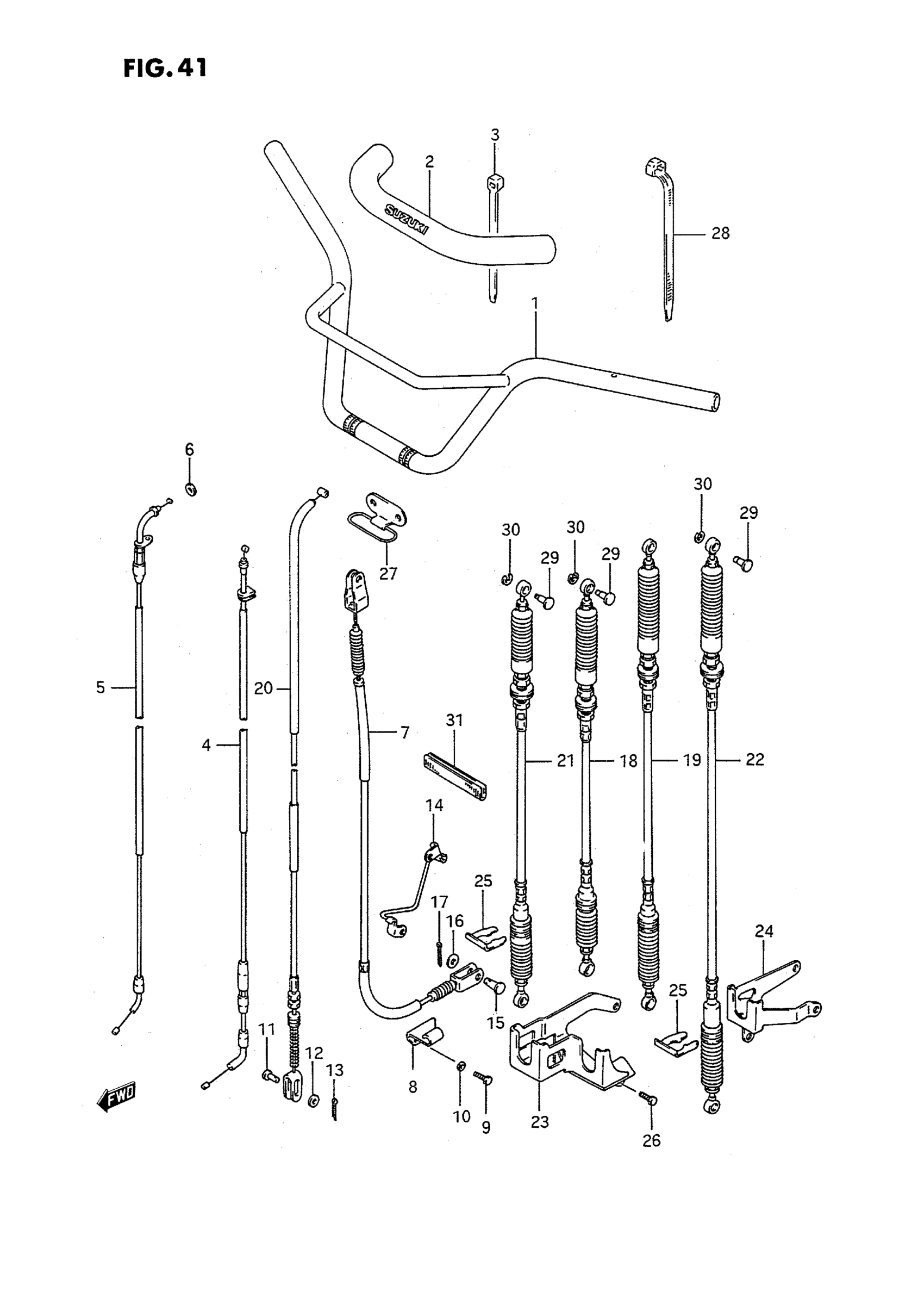

1995 Suzuki LT-4WD Handlebar - Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR This part replaces 56110-19B00-291.

56110-19B32-291

1
Out of stock

2

PAD, CROSS (OD:30) This part replaces 56172-19B00.

56172-19B01-291

1
Out of stock

3

BAND (L:187)

09407-18401

2
Out of stock

4

CABLE ASSY, THROTTLE

58300-19B00

1
Out of stock

5

CABLE, STARTER

58410-19X00

1
Out of stock

6

WASHER This part replaces 09161-05015.

09320-06503

1
Out of stock

7

CABLE ASSY, REAR BRAKE This part replaces 58510-19B01.

58510-19B02

1
Out of stock

8

BRACKET, REAR BRAKE CABLE

58575-19B00

1
Out of stock

9

BOLT

01500-06167

2

$2.10

In stock

10

2

$2.28

In stock

11

PIN, REAR CABLE PEDAL SIDE

09200-06013

2
Out of stock

12

.WASHER This part replaces 08322-01063.

08322-0106B

2
Out of stock

13

.COTTER PIN This part replaces 04111-20158.

04111-2015A

2
Out of stock

14

GUIDE, REAR BRAKE CABLE | !58611-19B02 USED WITH 08322-21063 This part replaces 58610-19B01.

58611-19B02

1
Out of stock

15

PIN

09200-08061

1
Out of stock

16

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

17

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

18

CABLE,T/M GEAR This part replaces 58680-19B01.

58680-19B02

1
Out of stock

19

CABLE, TRANSFER SHIFT

58690-19B01

1

$172.80

In stock

20

1

$60.01

In stock

21

CABLE, REVERSE This part replaces 58840-19B10.

58840-39DA0

1
Out of stock

22

CABLE, SUB T/M SHIFT This part replaces 58880-19B00.

58880-19B11

1
Out of stock

23

BRACKET, CONTROL CABLE

58870-19B00

1
Out of stock

24

BRACKET, CONTROL CABLE

58873-19B00

1
Out of stock

25

CLIP

09383-19003

4

$5.10

In stock

26

BOLT This part replaces 01547-06165.

01547-0616B

2
Out of stock

27

GUIDE, CABLE This part replaces 58620-19B01.

58620-19B10

1
Out of stock

28

CLAMP

09407-14403

2
Out of stock

29

PIN

09208-08008

3

$2.77

In stock

30

CIRCLIP This part replaces 08332-11066.

08332-1106A

3
Out of stock

31

PROTECTOR, CONTROL CABLE

44552-24B00

1
Out of stock
