1995 Suzuki LT-4WD Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1995 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

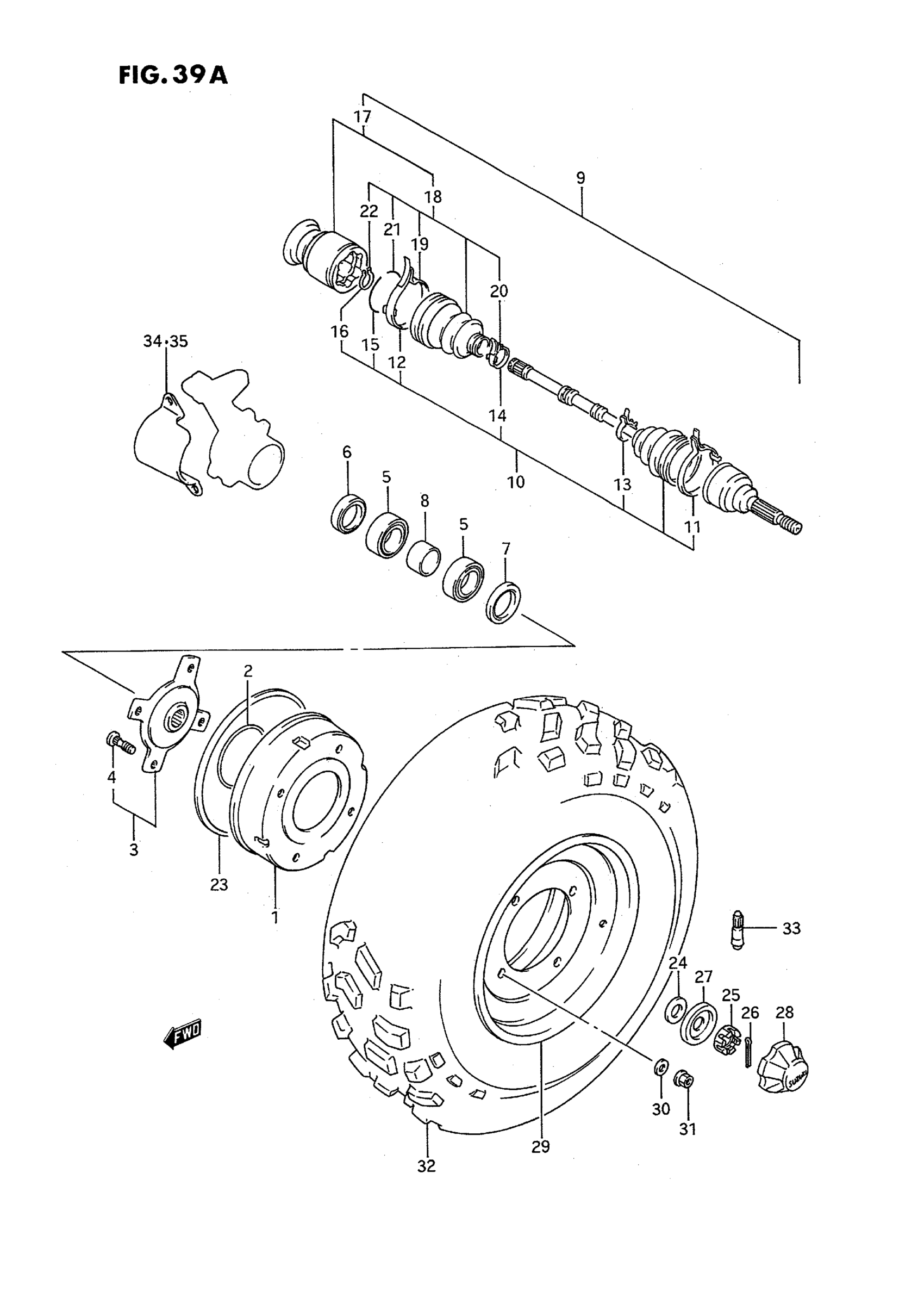

1995 Suzuki LT-4WD Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DRUM, BRAKE

54120-19B10

2
Out of stock

2

O RING

09280-80001

2

$3.79

In stock

3

HUB, FRONT | Includes Item(s) 4 This part replaces 54110-19B00.

54110-19B01

2
Out of stock

4

8

$2.23

In stock

5

BEARING, FRONT HUB

08123-60067

4
Out of stock

6

DUST SEAL, INNER

09283-38012

2
Out of stock

7

DUST SEAL, OUTER

09283-38013

2

$15.15

In stock

8

SPACER, FRONT HUB

54731-19B00

2

$11.51

In stock

9

SHAFT ASSY,FRT | !54901-19B12 This part replaces 54901-19B11.

54901-19B13

1
Out of stock

9

SHAFT ASSY,FRT | SEE NOTE 1 This part replaces 54901-19B12.

54901-19B13

1
Out of stock

9

NO DESCRIPTION AVAILABLE | !54902-19B12 This part replaces 54902-19B11.

54902-19B13

1
Out of stock

9

NO DESCRIPTION AVAILABLE | SEE NOTE 2; Includes Item(s) 10 - 22 This part replaces 54902-19B12.

54902-19B13

1
Out of stock

10

BOOT SET | OUTER BOOT SET This part replaces 54930-19B10.

54930-19B12

2
Out of stock

11

BAND This part replaces 54923-19B10.

44121-60DB0

2
Out of stock

12

CLAMP, SIDE OUTER BOOT

44122-86010

2
Out of stock

13

BAND This part replaces 54924-19B10.

44124-60DB0

2
Out of stock

14

CLAMP, SIDE INNER BOOT This part replaces 44124-54A20.

44124-50A20

2
Out of stock

15

CIR CLIP

44112-78010

2
Out of stock

16

SNAP RING

27182-70410

2
Out of stock

17

JOINT SET,DIFF This part replaces 54933-19B13.

54933-19B14

2
Out of stock

18

BOOT SET,DIFF S | INNER BOOT SET This part replaces 54931-19B13.

54931-19B14

2
Out of stock

19

CLAMP, SIDE OUTER BOOT

44122-86010

2
Out of stock

20

CLAMP, SIDE INNER BOOT This part replaces 44124-54A20.

44124-50A20

2
Out of stock

21

CIR CLIP

44112-78010

2
Out of stock

22

SNAP RING

27182-70410

2
Out of stock

23

DUST SEAL, DRUM BRAKE

54124-19B10

2
Out of stock

24

WASHER, HUB

09164-18004

2
Out of stock

25

2

$8.27

In stock

26

PIN, COTTER This part replaces 04111-40356.

04111-4040A

2
Out of stock

27

HOLDER, CENTER CAP

64726-19B00

2

$3.39

In stock

28

2

$15.15

In stock

29

RIM, FRONT WHEEL (SILVER) This part replaces 55310-19B10-13L.

55310-19B11-13L

2
Out of stock

30

WASHER This part replaces 08322-21107.

08322-01107

8
Out of stock

31

NUT, WHEEL SET

08316-10107

8
Out of stock

32

TIRE, T/L FRONT (AT22X8-10) (BRIDGESTONE)

55100-19B40

2
Out of stock

32

TIRE, T/L FRONT (AT22X8-10) (DUNLOP)

55100-19B60

2
Out of stock

33

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

2
Out of stock

34

PROTECTOR, DRIVE SHAFT RH

54903-19B10

1
Out of stock

35

PROTECTOR, DRIVE SHAFT LH

54904-19B10

1
Out of stock
