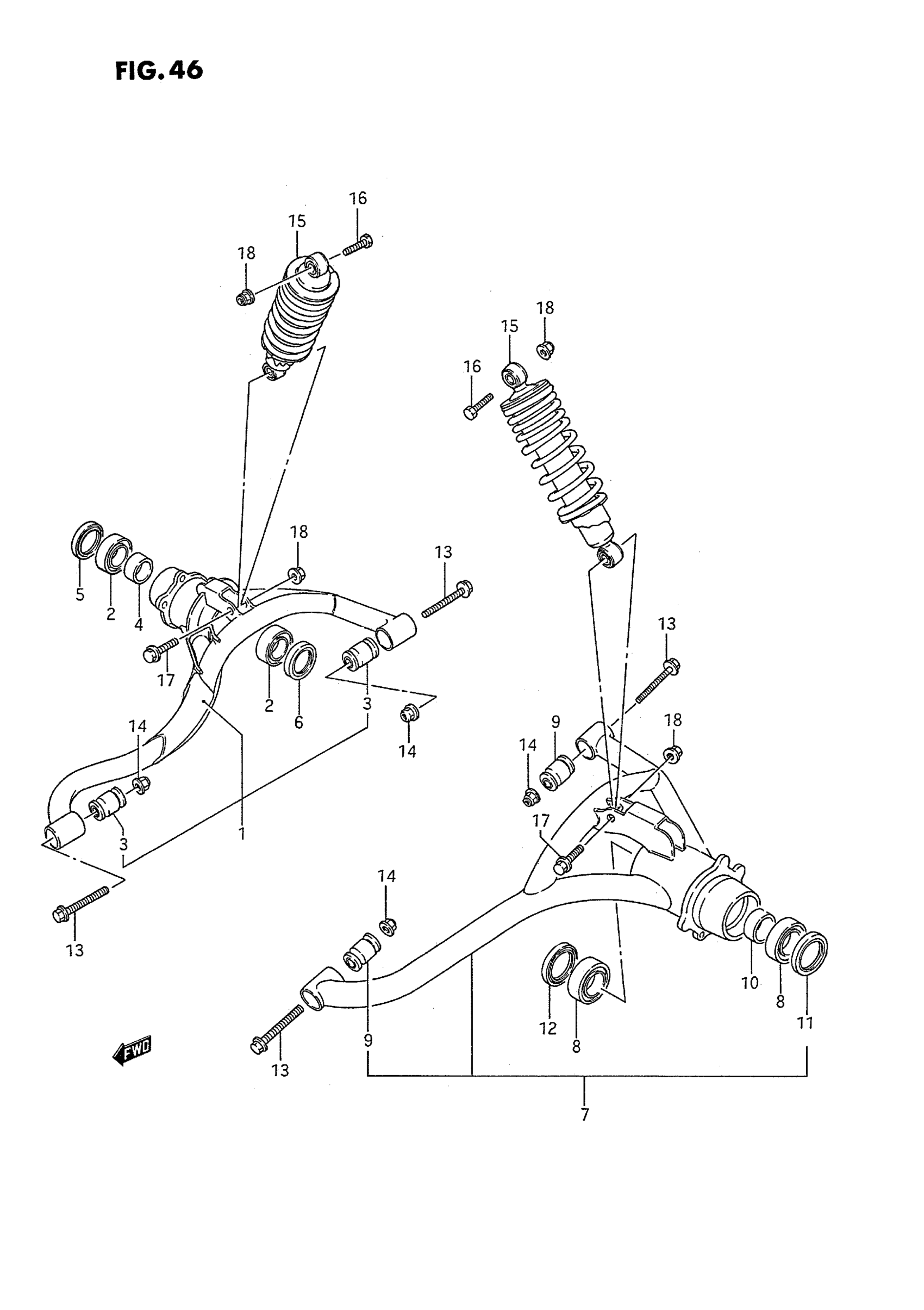

Suzuki LT-4WD (1995) REAR SUSPENSION ARM (MODEL H) Diagram

#

Description
Price

1

ARM SET, SUSPENSION RH | Includes Item(s) 2 - 6

61100-19840

Unavailable

2

BEARING

08123-60067

$26.29

3

BUSHING

09319-10030

$10.63

4

SPACER (30.5X36.5X17)

54731-19B00

$10.57

5

DUST SEAL, OUTER

09283-38013

$10.86

6

DUST SEAL, INNER This part replaces 09283-38014.

09283-38012

$13.30

7

ARM SET, SUSPENSION LH | Includes Item(s) 8 - 12

61100-19850

Unavailable

8

BEARING

08123-60067

$26.29

9

BUSHING

09319-10030

$10.63

10

SPACER

54731-19B00

$10.57

11

DUST SEAL, OUTER

09283-38013

$10.86

12

DUST SEAL, INNER This part replaces 09283-38014.

09283-38012

$13.30

13

BOLT,10X77 This part replaces 09103-10132.

09103-10247-XC0

$5.51

14

NUT This part replaces 08319-31105.

08319-3110A

$2.73

15

ABSORBER ASSY, REAR SHOCK | ORANGE This part replaces 62100-19B00-25G.

62100-19B10-25G

Unavailable

16

BOLT, UPPER

09100-10227

$3.80

17

BOLT, LOWER

09103-10019

$2.71

18

NUT

08319-31107

$2.73
