1995 Suzuki LT-4WD Fuel Tank Diagram

← All diagrams

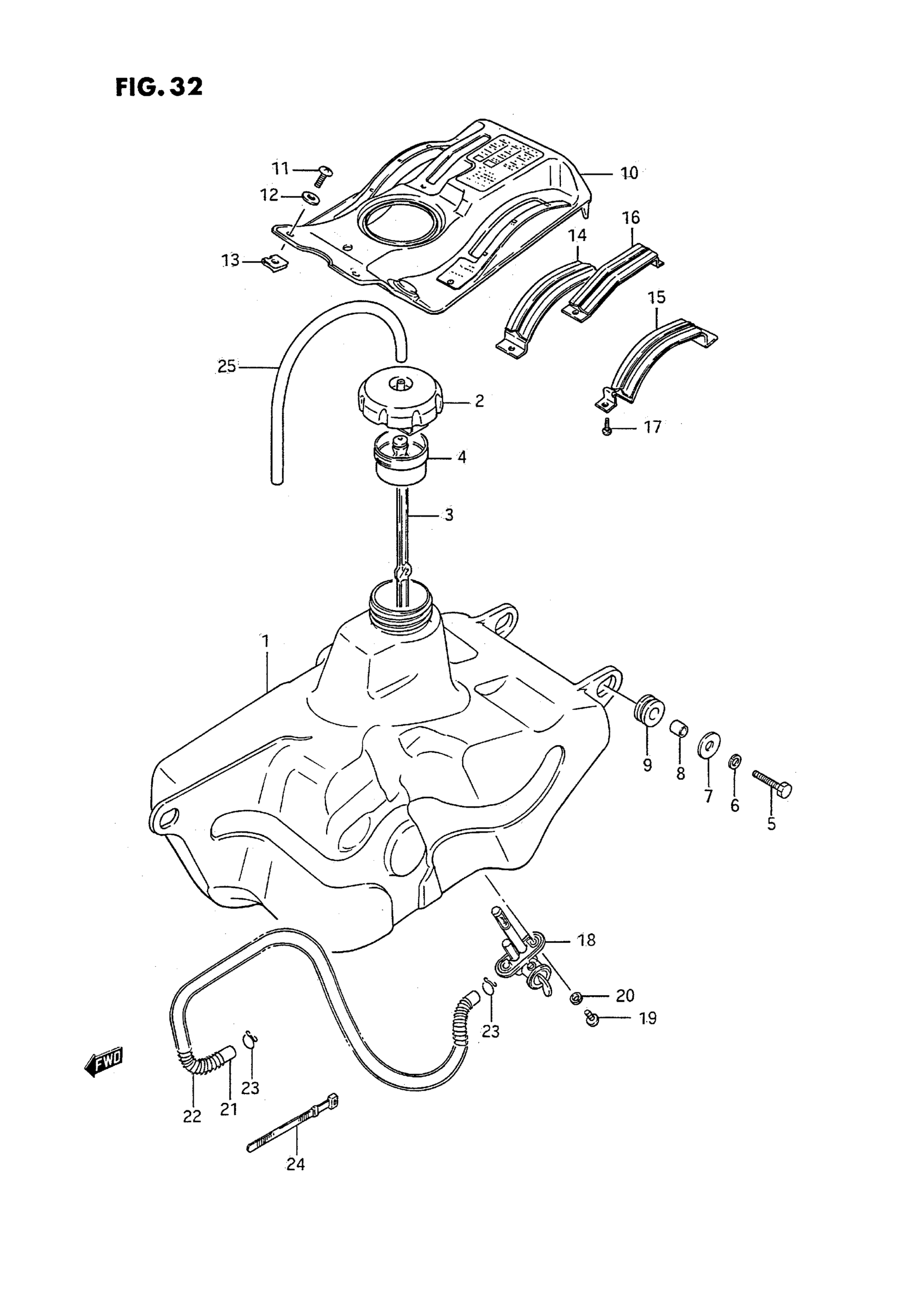

Find the part on the Fuel Tank diagram for your 1995 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki LT-4WD Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL This part replaces 44110-19B00.

44110-19B01

1
Out of stock

2

CAP, FUEL TANK

44200-19B00

1
Out of stock

3

GAGE,FUEL This part replaces 44501-19B00.

44501-19B01

1
Out of stock

4

TUBE, FILLER INLET

44199-19A00

1
Out of stock

5

BOLT | MODEL H/J/K/L/M/N This part replaces 01107-08358.

01500-0835B

3
Out of stock

5

BOLT | MODEL P/R/S

09118-08121

3
Out of stock

6

3

$2.28

In stock

7

WASHER, MUFFLER SUPPORT This part replaces 09160-08001.

09160-08503

3
Out of stock

8

SPACER This part replaces 09180-08120.

09180-08209

3
Out of stock

9

CUSHION

09320-12016

3
Out of stock

10

COVER, FUEL TANK | MODEL H/J/K/L/M

44270-19B00

1
Out of stock

10

COVER, FUEL TANK | MODEL N/P/R/S

44270-19B10

1
Out of stock

11

SCREW | MODEL H/J/K This part replaces 02142-06164.

02142-0616A

4
Out of stock

11

SCREW | MODEL L/M/N/P/R/S This part replaces 09136-06062.

09136-06017

4
Out of stock

12

WASHER (6.5X18X1.6) | MODEL H/J/K This part replaces 09160-06039.

09160-06109

4
Out of stock

13

NUT

53141-19A00

4
Out of stock

14

PLATE,LEVER SEA This part replaces 57950-19B00.

57950-19B01

1
Out of stock

15

PLATE,LEVER SEA This part replaces 57990-19B00.

57990-19B01

1
Out of stock

16

PLATE,REVERSE L This part replaces 44310-19B00.

44310-19B01

1
Out of stock

17

SCREW | MODEL H/J/K/L/M/N/P This part replaces 03511-04108.

03511-0410A

5
Out of stock

17

SCREW | MODEL R/S This part replaces 03511-04103.

03511-0410A

5
Out of stock

18

COCK ASSY, FUEL | MODEL H/J This part replaces 44300-19B00.

44300-19B01

1
Out of stock

18

COCK ASSY, FUEL | MODEL K/L/M/N/P/R

44300-19B01

1
Out of stock

18

COCK ASSY,FUEL | F.NO.2102987% This part replaces 44300-19B10.

44300-19B23

1
Out of stock

19

SCREW | MODEL K/L/M/N/P/R

02112-06167

2
Out of stock

19

SCREW | MODEL S This part replaces 02112-36163.

02112-3616A

2
Out of stock

20

2

$2.28

In stock

21

HOSE(5.3X10.5X6 | MODEL H/J/K/L/M/N/P/R This part replaces 09354-53103-600.

09355-53001-600

1
Out of stock

21

HOSE,5X10X600 | MODEL S This part replaces 09354-50103-600.

44421-13ER0

1
Out of stock

22

1

$13.76

In stock

23

CLIP

09401-10403

2
Out of stock

24

CLAMP

09407-14403

2
Out of stock

25

HOSE This part replaces 09352-50823-00A.

09352-50005-00B

1
Out of stock
