1995 Suzuki LT-4WD Cylinder Head Diagram

← All diagrams

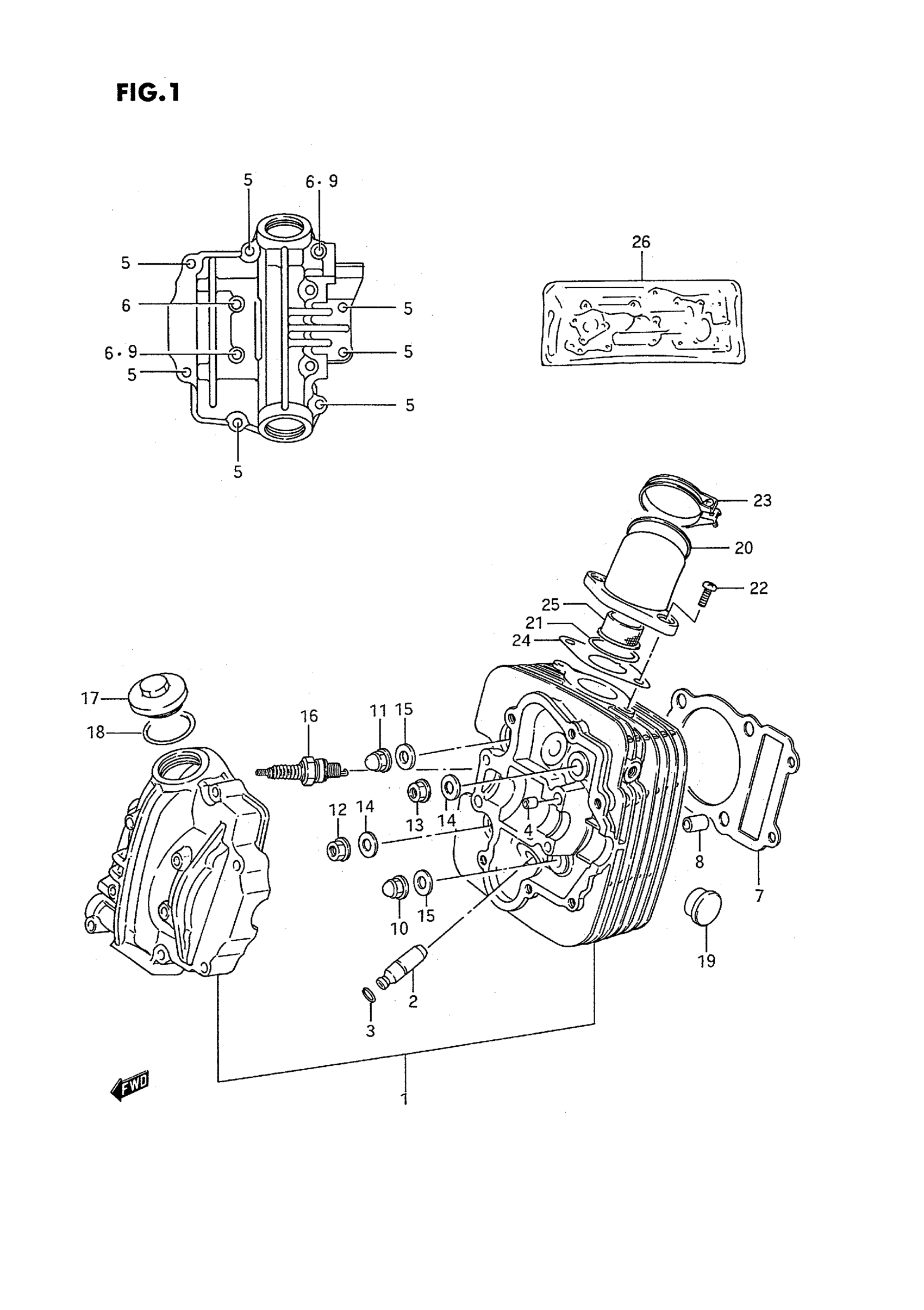

Find the part on the Cylinder Head diagram for your 1995 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki LT-4WD Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 6

11100-19B01

1
Out of stock

2

GUIDE, VALVE (0S:0.3)

11115-05270

2
Out of stock

3

.RING (10X85)

09381-10004

2
Out of stock

4

PIN

09206-08001

2
Out of stock

5

BOLT | MODEL H/J/K/L/M/N/P This part replaces 01517-06354.

01550-0635A

7
Out of stock

5

BOLT | MODEL R/S This part replaces 01550-06353.

01550-0635A

7
Out of stock

6

BOLT | MODEL H/J/K/L/M/N/P This part replaces 01517-06605.

01550-0660A

3
Out of stock

6

BOLT | MODEL R/S This part replaces 01517-06603.

01550-0660A

3
Out of stock

7

GASKET, CYLINDER HEAD

11141-19B00

1
Out of stock

8

PIN

04211-11169

2
Out of stock

9

GASKET

09168-06023

2
Out of stock

10

NUT | MODEL H/J/K/L/M/N/P This part replaces 09159-08064.

09159-08049

1
Out of stock

10

NUT | MODEL R/S

09159-08074

1
Out of stock

11

NUT | %E.NO.167277

09159-08074

1
Out of stock

11

NUT | E.NO.167278% This part replaces 09159-08064.

09159-08049

1
Out of stock

11

NUT | MODEL R/S

09159-08074

1
Out of stock

12

NUT | MODEL H/J/K/L/M/N/P This part replaces 08316-16085.

08316-1008B

1
Out of stock

12

NUT | MODEL R/S This part replaces 08316-10083.

08316-1008B

1
Out of stock

13

NUT (CHROME) | %E.NO.167277 This part replaces 08316-16088.

08316-10087

1
Out of stock

13

NUT | E.NO.167278% This part replaces 08316-16085.

08316-1008B

1
Out of stock

13

NUT | MODEL R/S This part replaces 08316-10083.

08316-1008B

1
Out of stock

14

WASHER

09160-08039

2
Out of stock

15

GASKET | MODEL H/J/K/L/M/N This part replaces 09168-08012.

09168-08013

2
Out of stock

15

GASKET (8.5X17X2.3) | MODEL P/R/S

09168-08021

2
Out of stock

16

SPARK PLUG (NGK,DR7EA) This part replaces 09482-00182.

09482-00398

1
Out of stock

17

CAP, INSPECTION | %E.NO.176962

11175-42A00

2
Out of stock

17

CAP INSPECTION | E.NO.176963% This part replaces 11175-18900.

11175-18920

2
Out of stock

17

CAP INSPECTION | MODEL S This part replaces 11175-37111.

11175-18920

2
Out of stock

18

.O RING (D:3,ID:29.5)

09280-30001

2
Out of stock

19

PLUG, HEAD

09241-22002

1
Out of stock

20

PIPE, INTAKE | MODEL H %E.NO.105801 !13110-19B02 USED WITH 09280-35005 This part replaces 13110-19B00.

13110-19B02

1
Out of stock

20

PIPE, INTAKE | MODEL H E.NO.105802% This part replaces 13110-19B01.

13110-19B02

1
Out of stock

20

PIPE, INTAKE | MODEL J/K

13110-19B02

1
Out of stock

20

PIPE ASSY,INTAK | MODEL L/M/N/P/R This part replaces 13110-19B50.

13101-19B51

1
Out of stock

20

PIPE ASSY,INTAK | MODEL S This part replaces 13110-19B51.

13101-19B51

1
Out of stock

21

O-RING (D:2.4,ID:39.7) | %E.NO.105801 This part replaces 09280-40010.

09280-40020

1
Out of stock

21

O RING (D:2.1,ID:34.7) | E.NO.105802%

09280-35005

1
Out of stock

22

SCREW | E.NO.163446% This part replaces 02112-76203.

02112-7620B

2
Out of stock

23

CLAMP | MODEL H/J/K

09402-46208

1
Out of stock

23

CLAMP | MODEL L/M/N/P/R

09402-50208

1
Out of stock

23

CLAMP | MODEL S This part replaces 09402-50203.

09402-50208

1
Out of stock

24

GASKET, INTAKE PIPE

13120-19B01

1
Out of stock

25

NET, INTAKE | MODEL J/K

13130-19B00

1
Out of stock

25

NET, INTAKE | MODEL L/M/N/P/R/S

13130-19B50

1
Out of stock

26

GASKET SET | MODEL L/M/N/P This part replaces 11400-19865-H17.

11401-19864

1
Out of stock

26

GASKET SET | MODEL R This part replaces 11400-19866.

11401-19864

1
Out of stock

26

GASKET SET | MODEL S This part replaces 11401-19861.

11401-19864

1
Out of stock
