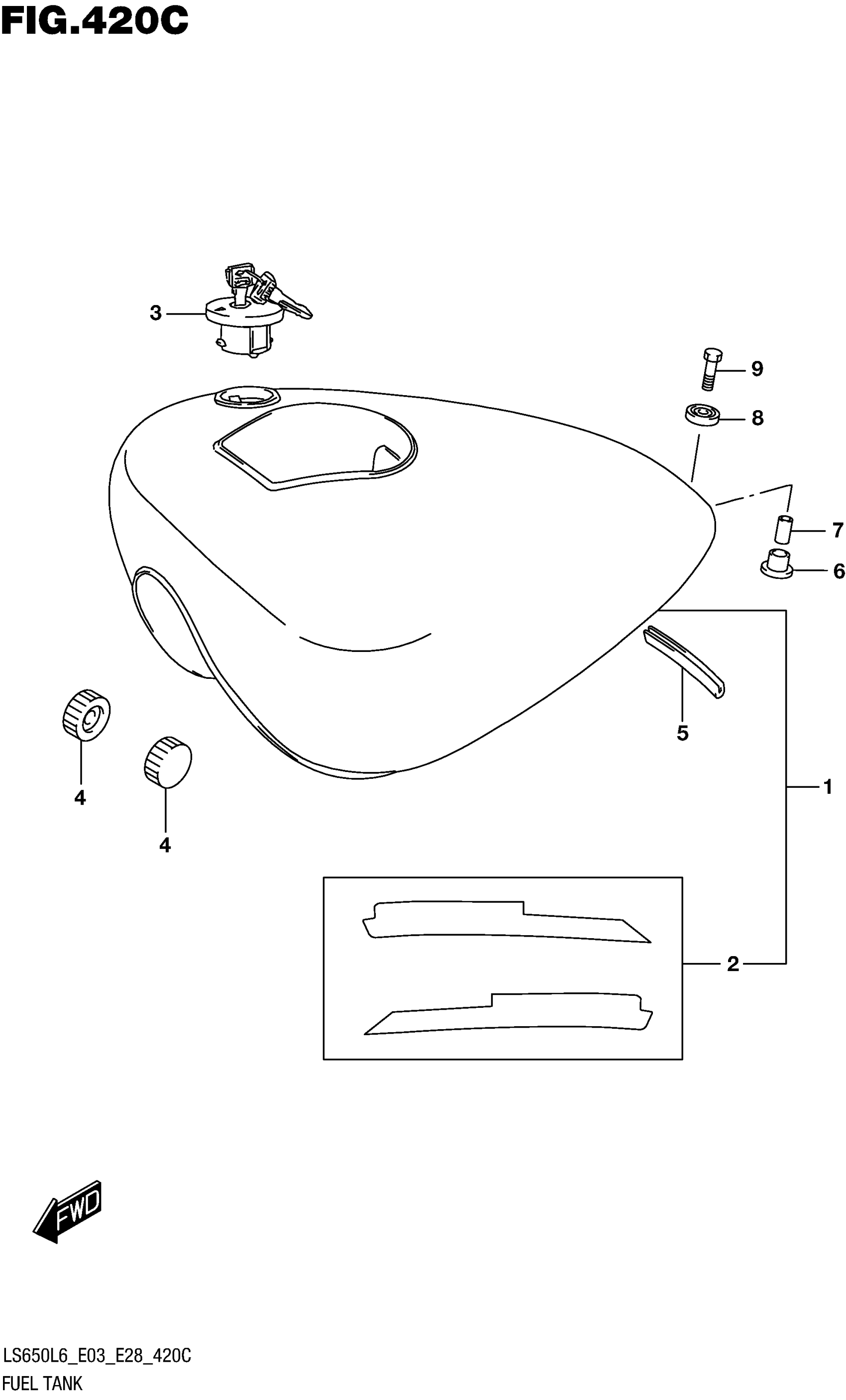

Suzuki LS650L6 (2016) FUEL TANK (LS650L6 E33) Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (BLUE)

44100-24C80-YSF

Unavailable

1-2

TANK ASSY, FUEL (WHITE)

44100-24C80-YWW

Unavailable

2-1

.TAPE SET, FUEL TANK | FOR YSF

68110-24C10-HUE

Unavailable

2-2

.TAPE SET, FUEL TANK | FOR YWW

68110-24C10-BBG

Unavailable

3

(CA)CAP,FUEL TA This part replaces 44200-24820.

44200-24821

$188.70

4

CUSHION

09329-10016

$2.80

5

MOLDING, FUEL TANK REAR

44552-24B10

$12.62

6

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.71

7

SPACER (6.5X9X18)

09180-06271

$2.17

8

CUSHION

09320-14013

$2.19

9

BOLT

01500-0630A

$2.21
