2016 Suzuki LS650L6 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2016 Suzuki LS650L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

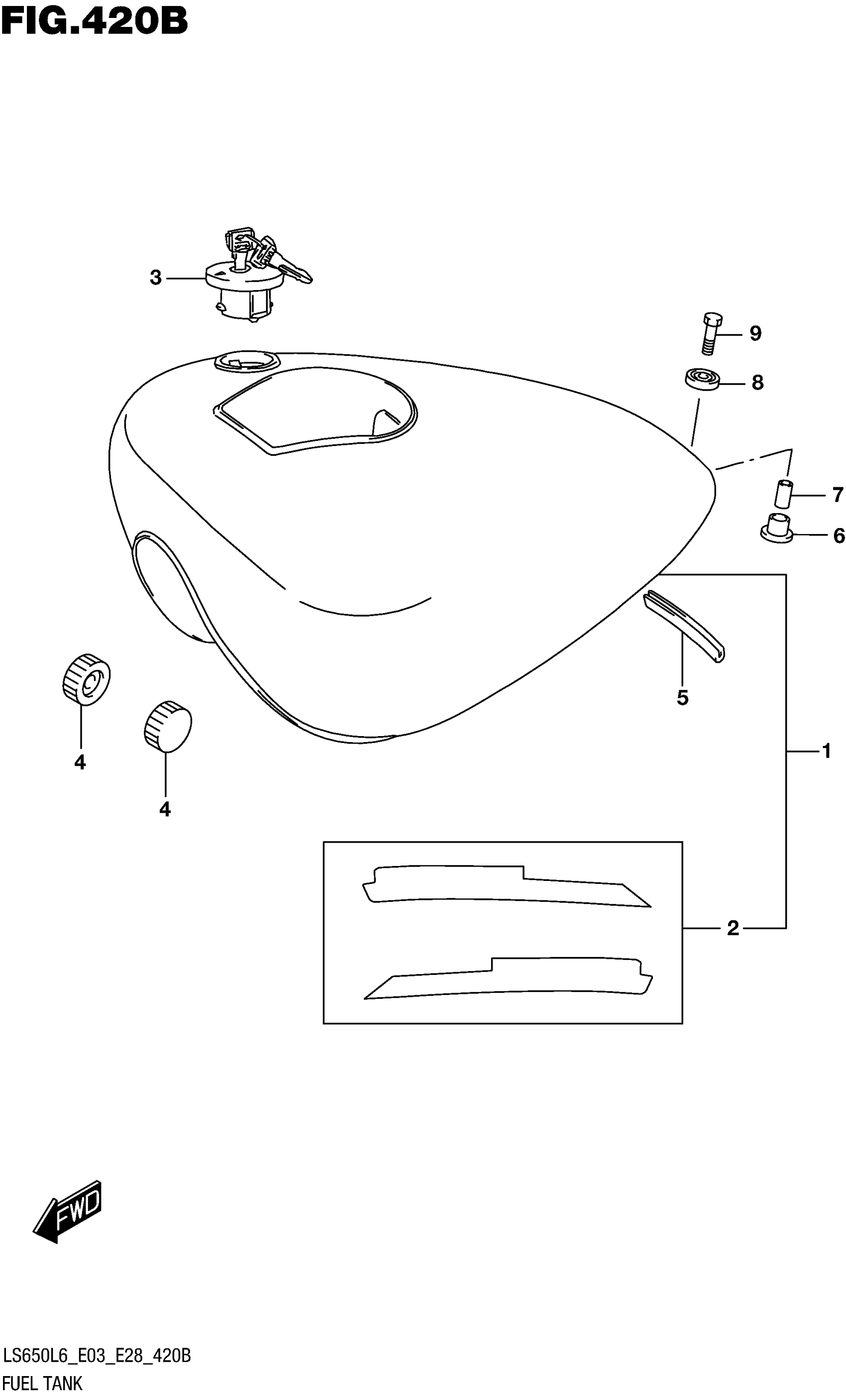

2016 Suzuki LS650L6 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

1

$905.50

In stock

1-2

1

$908.27

In stock

2-1

.TAPE SET, FUEL TANK | FOR YSF

68110-24C10-HUE

1
Out of stock

2-2

.TAPE SET, FUEL TANK | FOR YWW

68110-24C10-BBG

1
Out of stock

3

CAP SET, FUEL TANK

44200-24830

1

$139.72

In stock

4

CUSHION

09329-10016

2
Out of stock

5

MOLDING, FUEL TANK REAR

44552-24B10

2
Out of stock

6

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

2
Out of stock

7

SPACER (6.5X9X18)

09180-06271

2
Out of stock

8

CUSHION

09320-14013

2

$2.54

In stock

9

BOLT

01500-0630A

2
Out of stock
