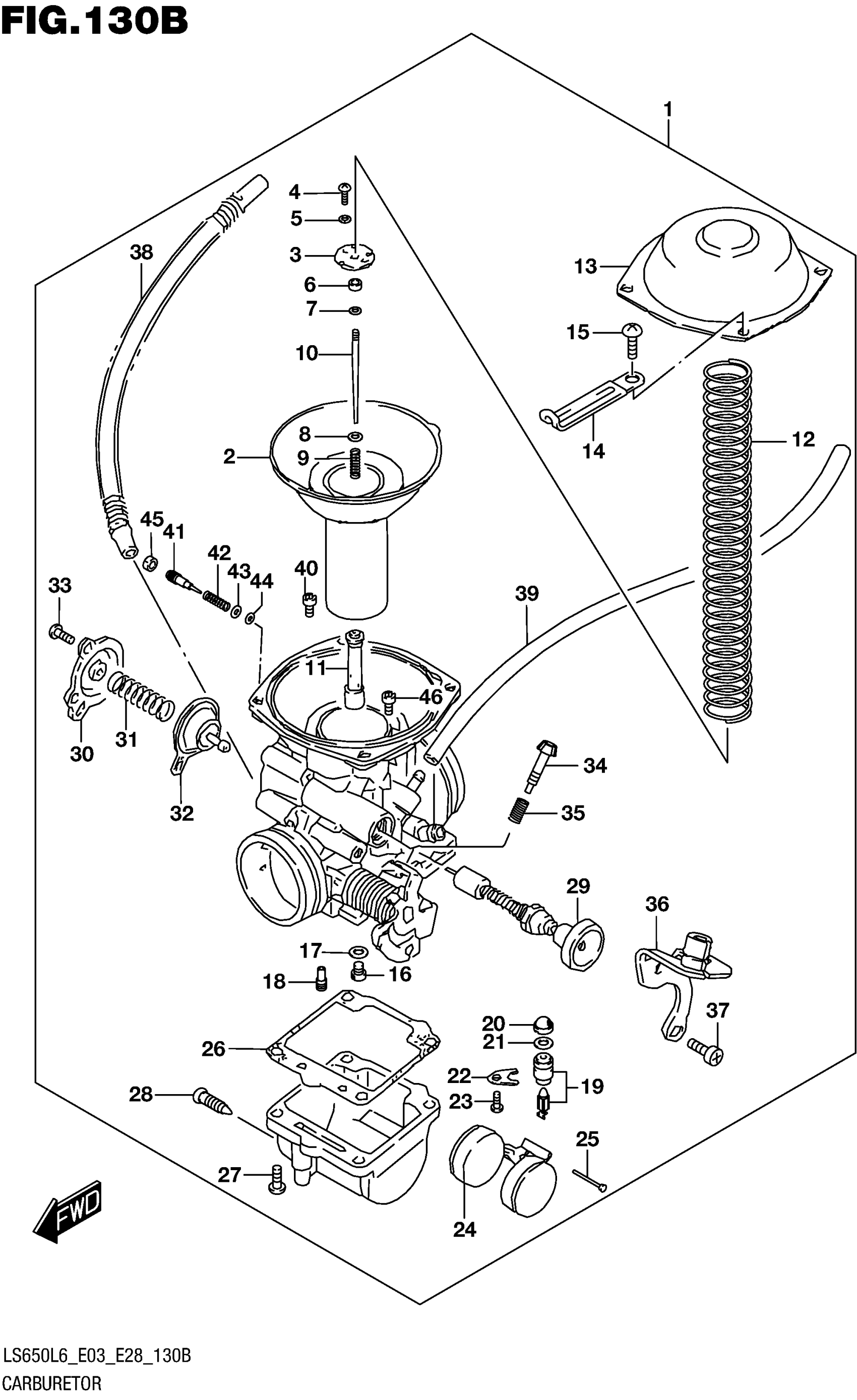

Suzuki LS650L6 (2016) CARBURETOR (LS650L6 E28) Diagram

#

Description
Price

1

CARBURETOR ASSY This part replaces 13200-24C41.

13200-24C42

$803.82

2

DIAPHRAGM ASSY This part replaces 13500-24B40.

13500-24B41

$257.20

3

.PLATE

13389-37400

$7.98

4

.SCREW

02112-0306B

$1.61

5

.LOCK WASHER

08321-2103B

$1.78

6

.RING

13387-44030

$5.49

7

.CLIP NEEDLE

13394-31210

$4.37

8

.WASHER

13382-44030

$3.50

9

.SPRING

13388-44030

$9.17

10

.NEEDLE, JET (5C17)

13383-24C40

$20.82

11

.JET, NEEDLE (X-7M)

09494-00861

$56.43

12

.SPRING

13503-24B00

$26.03

13

.COVER

13502-37400

Unavailable

14

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

15

.SCREW

02112-0510A

$1.43

16

.JET, MAIN (145)

09491-29013

$18.87

17

.WASHER

13382-03110

$2.80

18

.JET, PILOT (52.5)

09492-52010

$13.43

19

.VALVE ASSY, NEEDLE

13370-24C80

$97.43

20

.FILTER

13376-19F00

$9.41

21

.O RING

13374-35C00

$5.48

22

.PLATE

13373-39110

$6.25

23

.SCREW

02112-0406B

$1.55

24

.FLOAT

13250-37400

$26.52

25

.PIN, FLOAT

13254-92311

$2.31

26

.GASKET This part replaces 13251-38300.

13251-37101

$10.30

27

.SCREW

02112-0516A

$1.45

28

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.56

29

.PLUNGER ASSY

13411-24C00

$64.00

30

.COVER

13484-38A10

$25.08

31

.SPRING

13481-24B00

$4.92

32

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

$48.74

33

.SCREW

02112-0410A

$1.30

34

.ADJUSTER

13267-25D00

$16.03

35

.SPRING

13271-93011

$5.83

36

.BRACKET ASSY

13621-24B01

$56.53

37

.SCREW

02112-0510A

$1.43

38

HOSE ASSY This part replaces 13318-24C00.

13318-24C01

$17.48

39

HOSE,5X10X600 | L:600->250 This part replaces 09352-50823-600.

44421-13ER0

$9.08

40

.JET, PILOT (230)

09491-46005

$18.87

41

.SCREW, AIR

13269-37400

$10.70

42

.SPRING (NT:45)

13268-47070

$3.97

43

.WASHER

13291-29900

$1.87

44

O-RING This part replaces 13295-29900.

13295-29901

$3.97

45

.PLUG

13281-05A00

$4.21

46

.JET (#45)

09491-45002

$18.87
