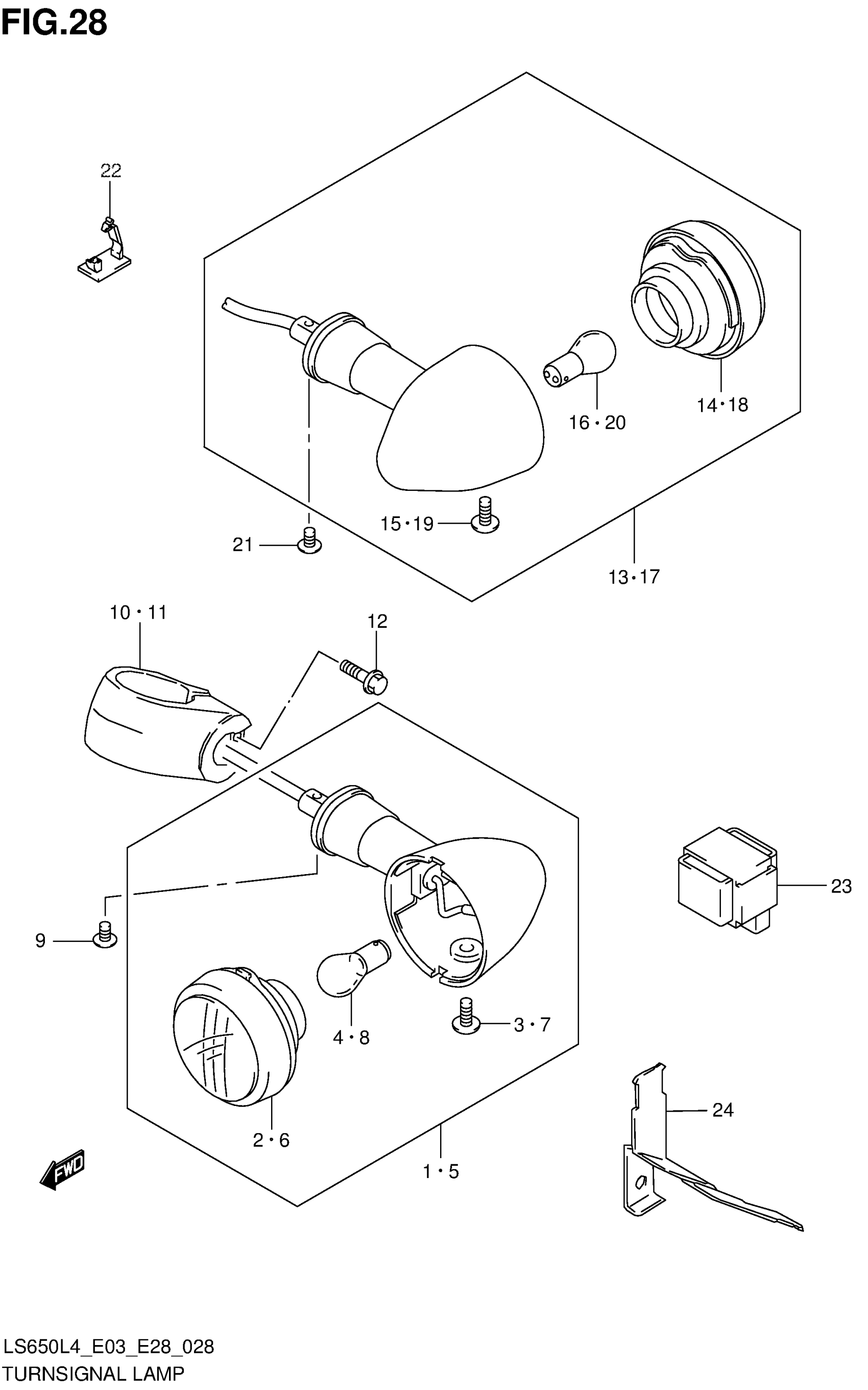

Find the part on the Turnsignal Lamp diagram for your 2014 Suzuki LS650L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki LS650L4 Turnsignal Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$156.67

In stock

2

LENS

35610-38AA0

1
Out of stock

3

SCREW (4X10)

35623-38AA0

1
Out of stock

4

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

5

1

$117.01

In stock

6

LENS

35630-38AA0

1
Out of stock

7

SCREW (4X10)

35623-38AA0

1
Out of stock

8

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

9

SCREW

02142-06107

—

$2.67

In stock

10

BRACKET, FRONT TURNSIGNAL LAMP RH

35671-24B00

1
Out of stock

11

1

$69.02

In stock

12

BOLT

01547-0525A

—
Out of stock

13

1

$112.14

In stock

14

LENS

35630-38AE1

1
Out of stock

15

SCREW (4X10)

35623-38AA0

1
Out of stock

16

BULB (12V,21W)

09471-12045

1
Out of stock

17

1

$112.14

In stock

18

LENS

35610-38AE1

1
Out of stock

19

SCREW (4X10)

35623-38AA0

1
Out of stock

20

BULB (12V,21W)

09471-12045

1
Out of stock

21

SCREW

02142-06167

2
Out of stock

22

CLAMP

09403-04310

4
Out of stock

23

RELAY ASSY This part replaces 38610-26E00.

38610-26E01

1
Out of stock

24

BRACKET, TURN SIGNAL RELAY

38621-24B10

1
Out of stock
