2014 Suzuki LS650L4 Wiring Harness Diagram

← All diagrams

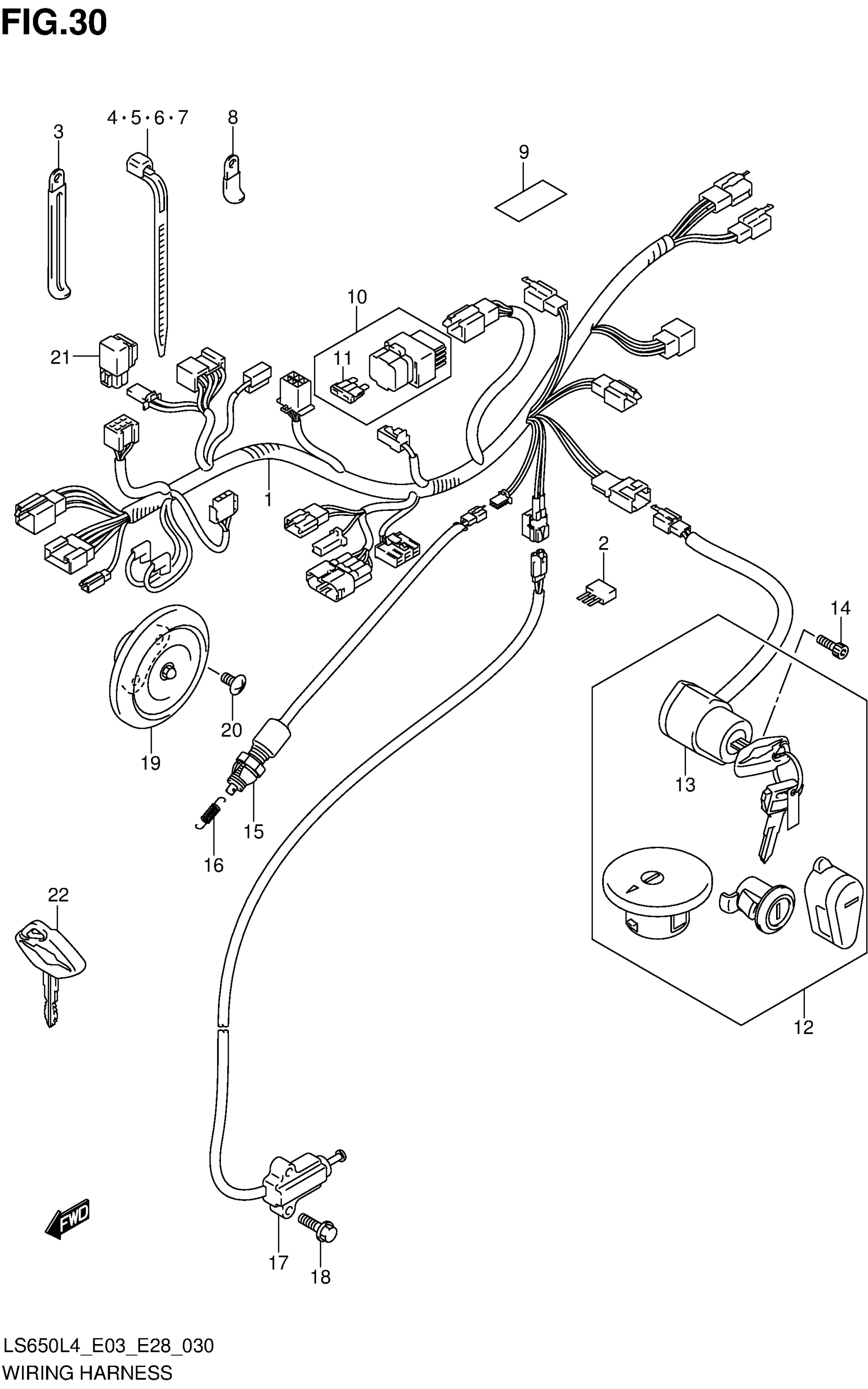

Find the part on the Wiring Harness diagram for your 2014 Suzuki LS650L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki LS650L4 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$345.08

In stock

2

1

$13.49

In stock

3

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

1
Out of stock

4

CLAMP (L:95)

09407-11401

1
Out of stock

5

CLAMP (L:125)

09407-14403

4
Out of stock

6

CLAMP (L:165)

09407-18402

4
Out of stock

7

CLAMP (L:235)

09407-25401

2
Out of stock

8

CLAMP, WIRING HARNESS

36651-24B10

1
Out of stock

9

TAPE, WIRING HARNESS

36930-60A10

1
Out of stock

10

FUSE ASSY, MAIN

36740-24B01

1

$31.82

In stock

11

FUSE (20A)

09481-20101

2

$2.31

In stock

12

LOCK SET

37101-24830

1

$463.75

In stock

13

SWITCH ASSY, IGNITION

37110-24B10

1

$228.73

In stock

14

BOLT

07130-0516B

1

$2.67

In stock

15

1

$20.62

In stock

16

SPRING

09443-06077

1

$6.08

In stock

17

1

$77.83

In stock

18

BOLT

01550-0620B

2
Out of stock

19

HORN ASSY

38500-24B00

1
Out of stock

20

SCREW

02142-0612B

2
Out of stock

21

RELAY ASSY, SIDE STAND WARING

38740-24X50

1
Out of stock

22

1

$58.52

In stock

22

1

$58.52

In stock

22

1

$58.52

In stock

22

1

$58.52

In stock
