1995 Suzuki LS650F Rear Swinging ARM Diagram

← All diagrams

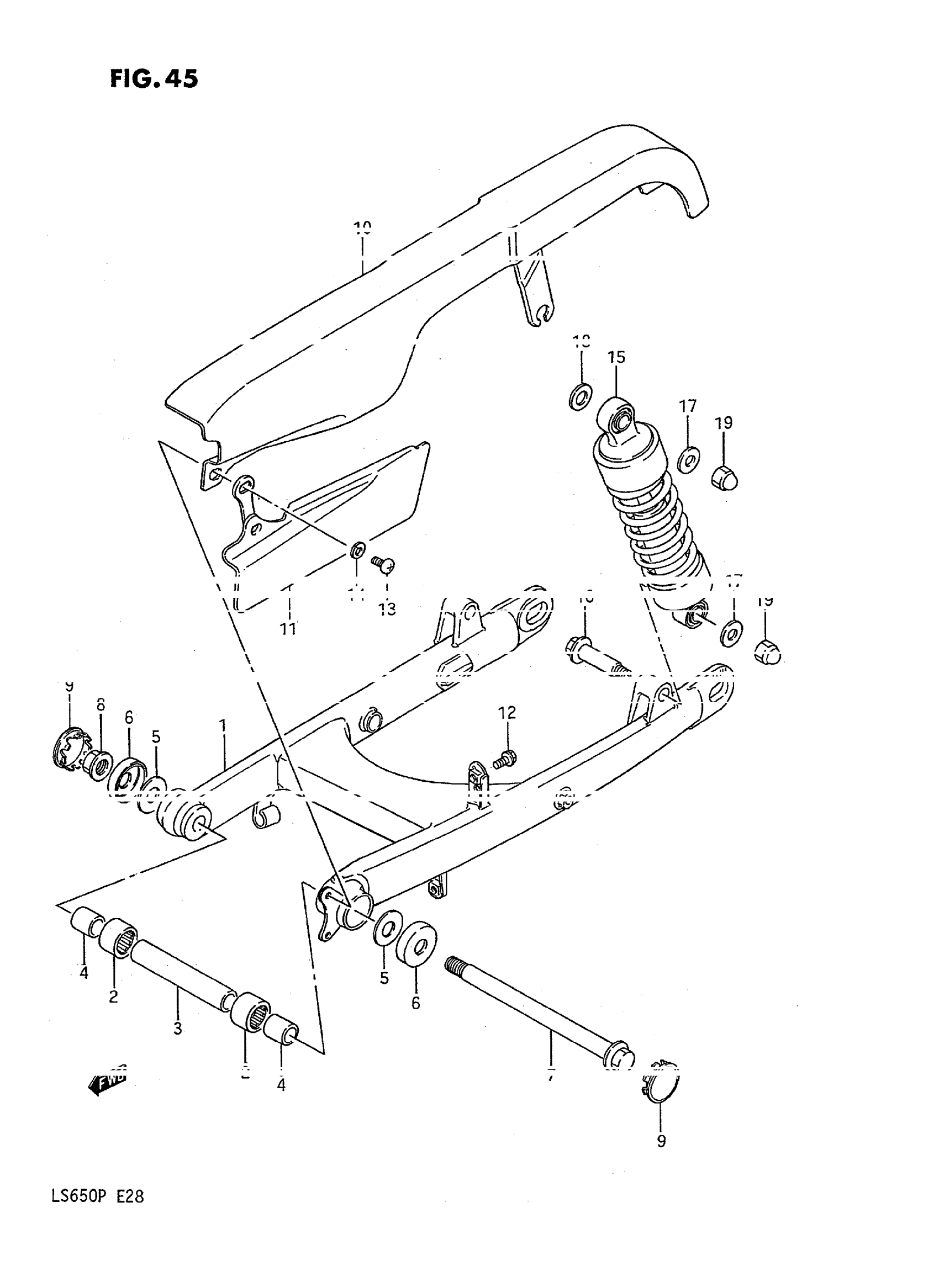

Find the part on the Rear Swinging ARM diagram for your 1995 Suzuki LS650F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki LS650F Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM, REAR (BLACK) This part replaces 61100-24B01-019.

61100-24B03-019

1
Out of stock

2

BEARING

09263-22017

2
Out of stock

3

SPACER, CENTER

61282-24B01

1
Out of stock

4

SPACER, PIVOT

61251-24B00

2
Out of stock

5

THRUST WASHER

08211-14341

2
Out of stock

6

DUST SEAL

61262-45002

2
Out of stock

7

SHAFT, PIVOT

61211-24B00

1
Out of stock

8

NUT This part replaces 08319-31148.

08319-3114A

1
Out of stock

9

CAP, PIVOT

61222-38A01

2
Out of stock

10

BELT CASE, UPPER

61310-24B02

1
Out of stock

11

BELT CASE, LOWER

61320-24B02

1
Out of stock

12

BOLT | MODEL G/J/K/L/M This part replaces 01517-06105.

01550-0610A

2
Out of stock

12

BOLT | MODEL N/P This part replaces 01517-06108.

01550-06107

2
Out of stock

13

SCREW | MODEL G/J/K/L

02142-06108

2
Out of stock

13

SCREW | MODEL M/N/P

02142-36108

—
Out of stock

15

ABSORBER ASSY, REAR SHOCK

62100-24B00

2
Out of stock

16

BOLT, LOWER

62313-24B00

2
Out of stock

17

WASHER This part replaces 09160-10101.

09160-10035

4
Out of stock

18

WASHER, UPPER INNER

09160-14009

2
Out of stock

19

NUT This part replaces 08313-11107.

08313-10107

4
Out of stock
