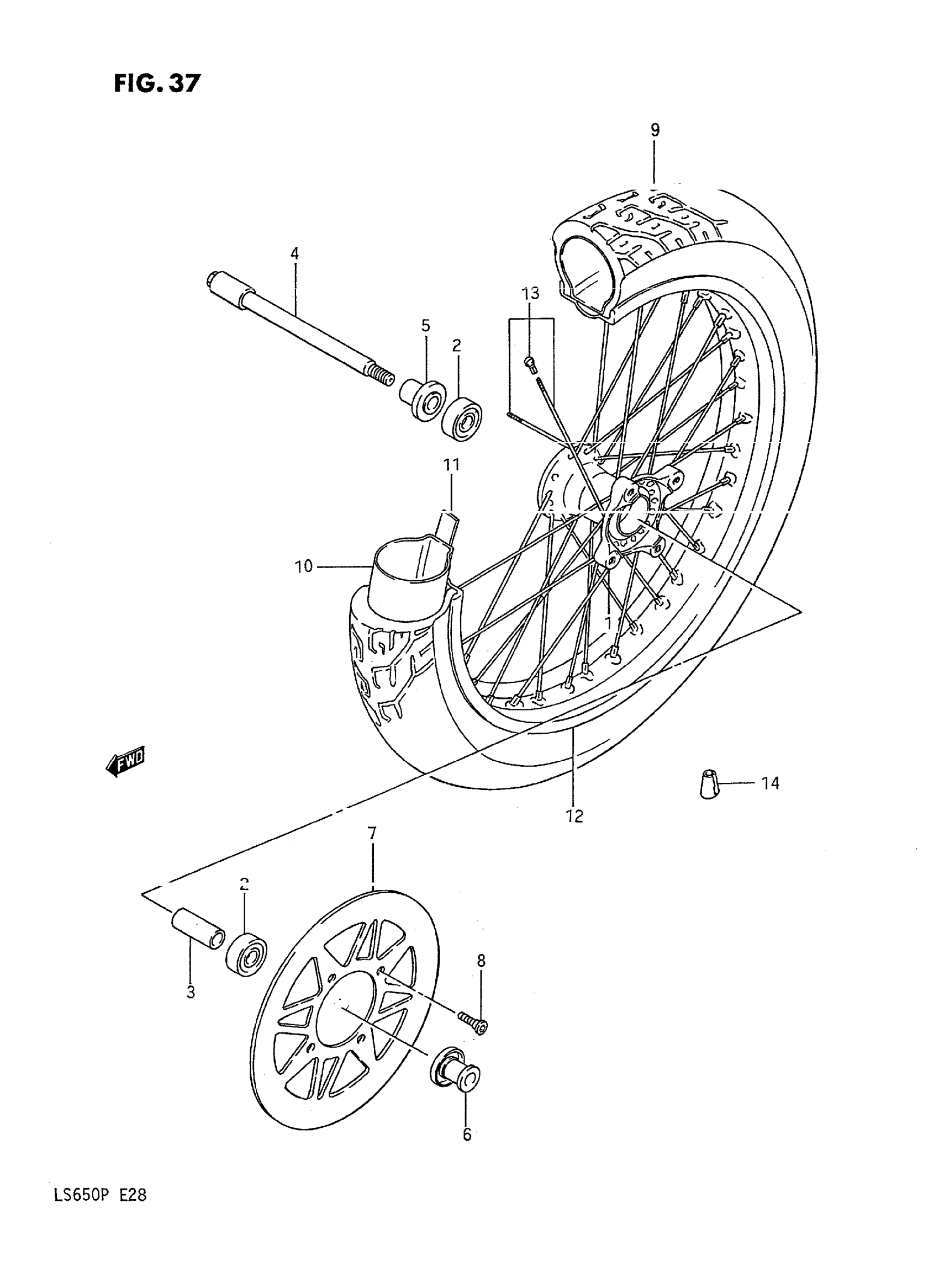

Suzuki LS650F (1995) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

54111-24B01

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$21.14

3

SPACER, HUB BEARING

09180-15074

$14.53

4

AXLE, FRONT

54711-24B01

Unavailable

5

SPACER, AXLE RH

54740-24B00

$24.57

6

SPACER, AXLE LH

54750-24B00

$27.32

7

DISK, FRONT BRAKE

59211-24B00

Unavailable

8

BOLT

09106-08049

$5.02

9

TIRE,FRONT 100/ | IRC This part replaces 55100-24B01.

55100-24B03

$211.92

10

TUBE This part replaces 55200-44610.

55200-44611

$44.78

11

PROTECTOR, WHEEL INNER TUBE FRONT This part replaces 55261-15010.

55261-15020

$3.11

12

RIM, WHEEL (WM2.15X19)

55311-24B00

$354.71

13

SPOKE SET, FRONT WHEEL This part replaces 55320-24B00.

55320-24B10

$90.88

14

BALANCER, WHEEL (20G) This part replaces 55412-38A00.

55412-41F00

$8.12

14

BALANCER WHEEL (30G) This part replaces 55413-38A00.

55413-41F00

$9.95
