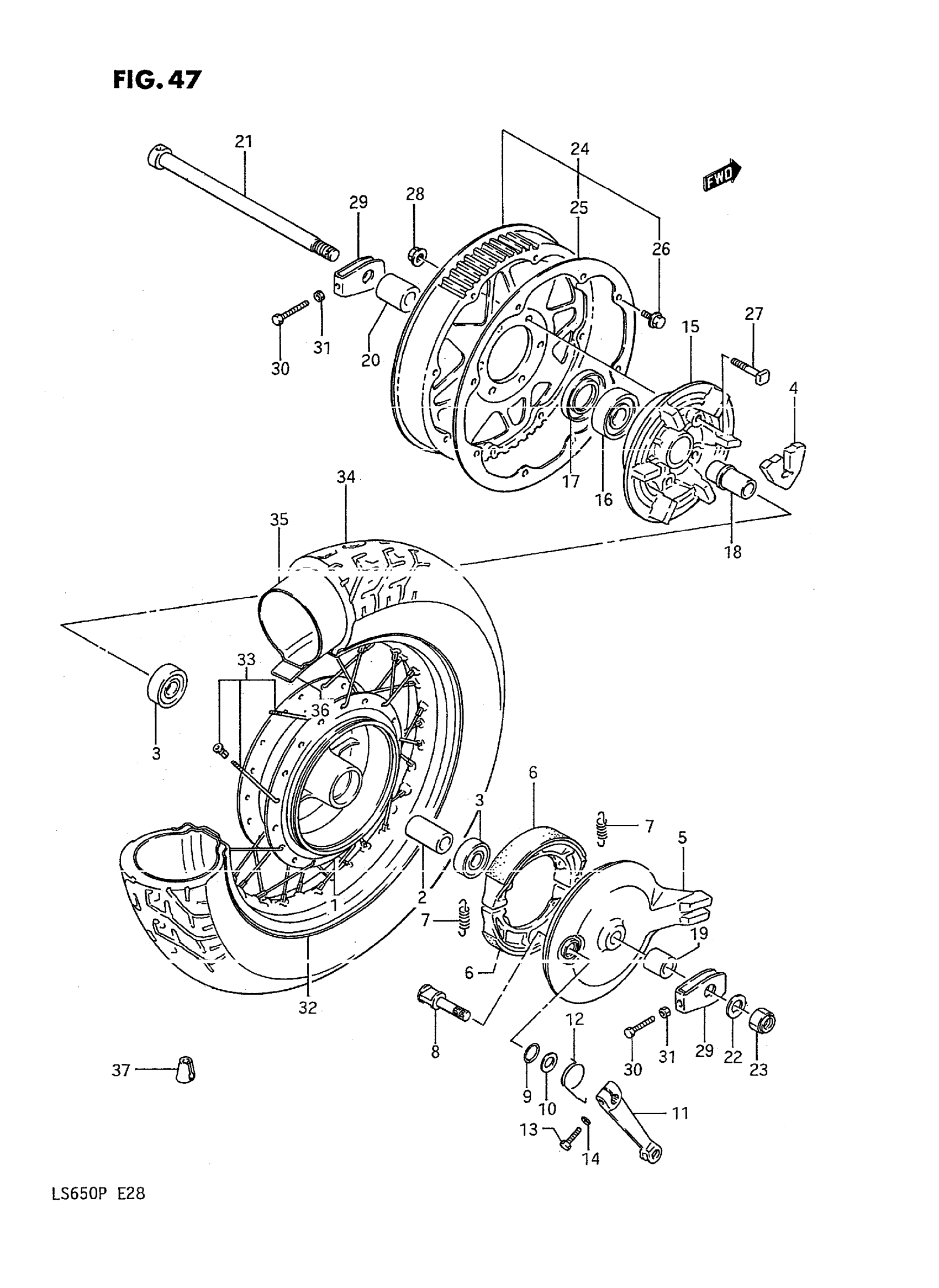

Suzuki LS650F (1995) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL

64110-24B00

Unavailable

2

SPACER

09180-17069

$26.02

3

BEARING

08143-63037

$20.38

4

SHOCK ABSORBER, HUB

64651-31001

$10.24

5

PANEL, REAR BRAKE ANCHOR This part replaces 64210-24B00.

64210-24B01

Unavailable

6

SHOE SET, BRAKE | MODEL G This part replaces 64410-11301.

64400-11860

Unavailable

6

SHOE SET, BRAKE | MODEL J/K/L/M/N/P This part replaces 64410-44B00.

64400-44810

$58.07

7

SPRING

55420-30000

$4.22

8

CAM, REAR BRAKE

54440-08004

$31.18

9

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.77

10

WASHER This part replaces 09160-15001.

09160-15048

$2.58

11

LEVER, BRAKE CAM

64451-24B00

$65.17

12

SPRING

09448-33006

$10.03

13

BOLT | MODEL G/J/K/L/M This part replaces 01107-06257.

01500-06257

$1.97

13

BOLT | MODEL N/P This part replaces 01137-06258.

01570-06257

$3.30

14

LOCK WASHER | MODEL G/J/K/L/M This part replaces 08321-21067.

08321-01067

$1.83

15

DRUM, SPROCKET

64611-31003

Unavailable

16

BEARING

09262-25073

$23.39

17

OIL SEAL

09285-33001

$12.15

18

RETAINER, DRUM

64733-31300

$26.67

19

SPACER, RH

09180-17082

$11.35

20

SPACER, LH

09180-17083

$18.68

21

AXLE, REAR This part replaces 64711-24B01.

64711-24B02

Unavailable

22

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

$2.67

23

NUT

09159-16002

$5.17

24

SPROCKET, REAR (NT:68) | Includes Item(s) 25 - 26 This part replaces 64510-24B01.

64510-24B10

$674.08

25

PLATE

64512-24B01

Unavailable

26

BOLT This part replaces 01517-06128.

01550-06127

$2.31

27

BOLT

09105-10005

Unavailable

28

NUT This part replaces 08319-31105.

08319-3110A

$2.73

29

ADJUSTER, BELT This part replaces 61410-24B00.

61410-24B01

$23.08

30

BOLT

09104-08023

Unavailable

31

NUT This part replaces 08310-22088.

08310-00087

$1.83

32

RIM, REAR WHEEL (WM2.75X15M/C | MODEL G/J This part replaces 65311-24B00.

65311-24B01

Unavailable

32

RIM, REAR WHEEL (WM2.75X15M/C | MODEL K/L/M/N/P

65311-24B01

Unavailable

33

SPOKE SET, REAR

65320-24B00

$116.63

34

TIRE,RR,(140/80 | MODEL G/J This part replaces 65100-24B00.

65100-24B03

$276.68

34

TIRE,RR,(140/80 | MODEL K/L/M/N/P This part replaces 65100-24B01.

65100-24B03

$276.68

35

TUBE, WHEEL INNER This part replaces 65200-24B00.

65200-38A70

$68.65

36

PROTECTOR, WHEEL INNER TUBE This part replaces 65261-24B01.

65261-26F10

$7.47

37

BALANCER, WHEEL (20G) This part replaces 55412-38A00.

55412-41F00

$8.12

37

BALANCER WHEEL (30G) This part replaces 55413-38A00.

55413-41F00

$9.95
