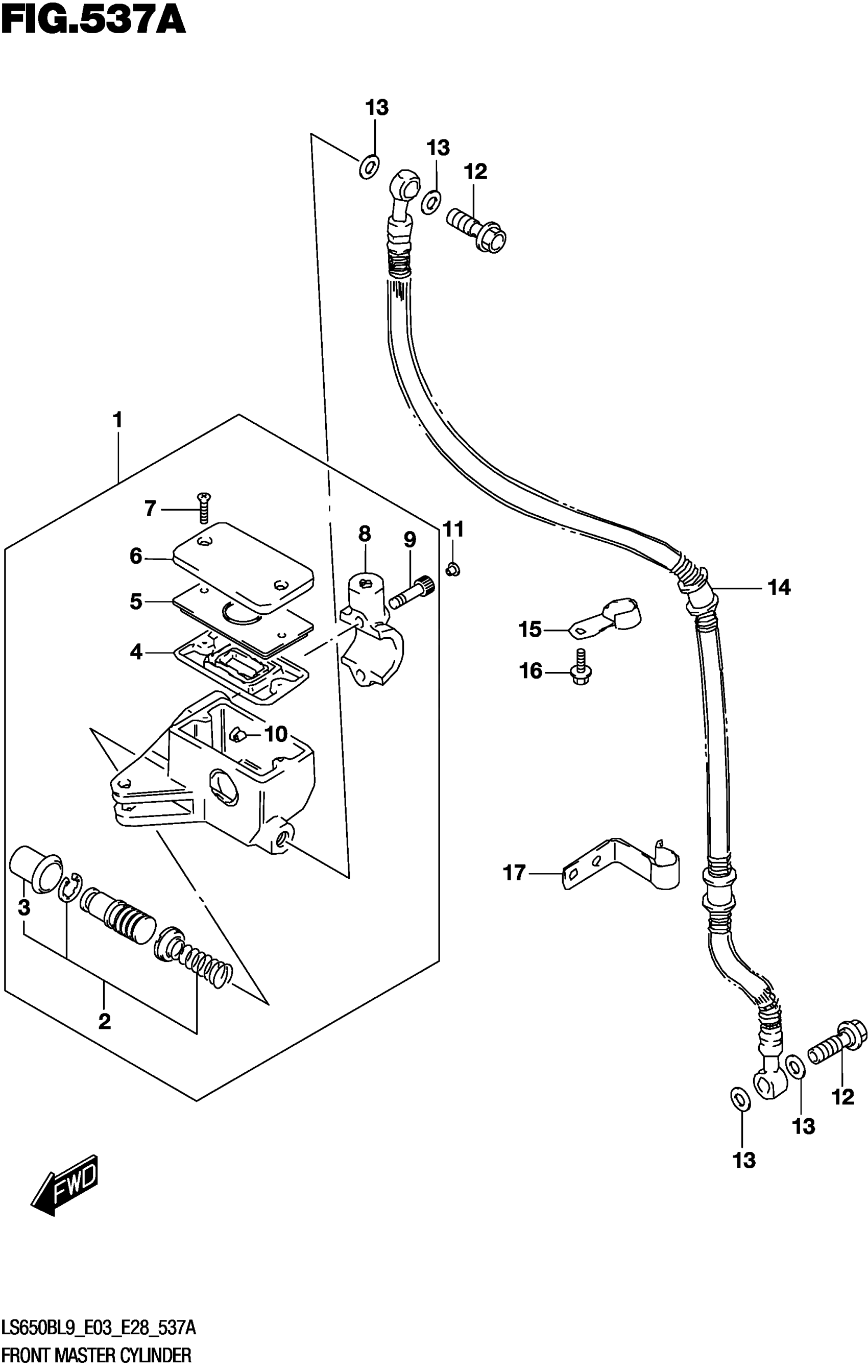

Find the part on the Front Master Cylinder diagram for your 2019 Suzuki LS650BL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki LS650BL9 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY

59600-38AC0

1
Out of stock

2

.PISTON/CUP SET

59600-04810

1
Out of stock

3

..BOOT

59666-44300

1
Out of stock

4

.DIAPHRAGM

59667-49460

1
Out of stock

5

.PLATE,DIAPHRAGM

59668-41C00

1
Out of stock

6

.CAP

59669-10G20

1
Out of stock

7

.SCREW

69689-49300

2
Out of stock

8

.HOLDER

59671-05A00

1
Out of stock

9

BOLT

07130-0620B

2
Out of stock

10

.PROTECTOR

59664-48B00

1
Out of stock

11

CAP (OD:10)

09250-05009

2
Out of stock

12

2

$6.33

In stock

13

WASHER (10X15X1.5)

09161-10009

4
Out of stock

14

HOSE

59480-24B70

1
Out of stock

15

GUIDE

59541-24B10

1
Out of stock

16

BOLT

01547-0610A

1
Out of stock

17

GUIDE

59268-24B10

—
Out of stock
