2019 Suzuki LS650BL9 Camshaft/valve Diagram

← All diagrams

Find the part on the Camshaft/valve diagram for your 2019 Suzuki LS650BL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

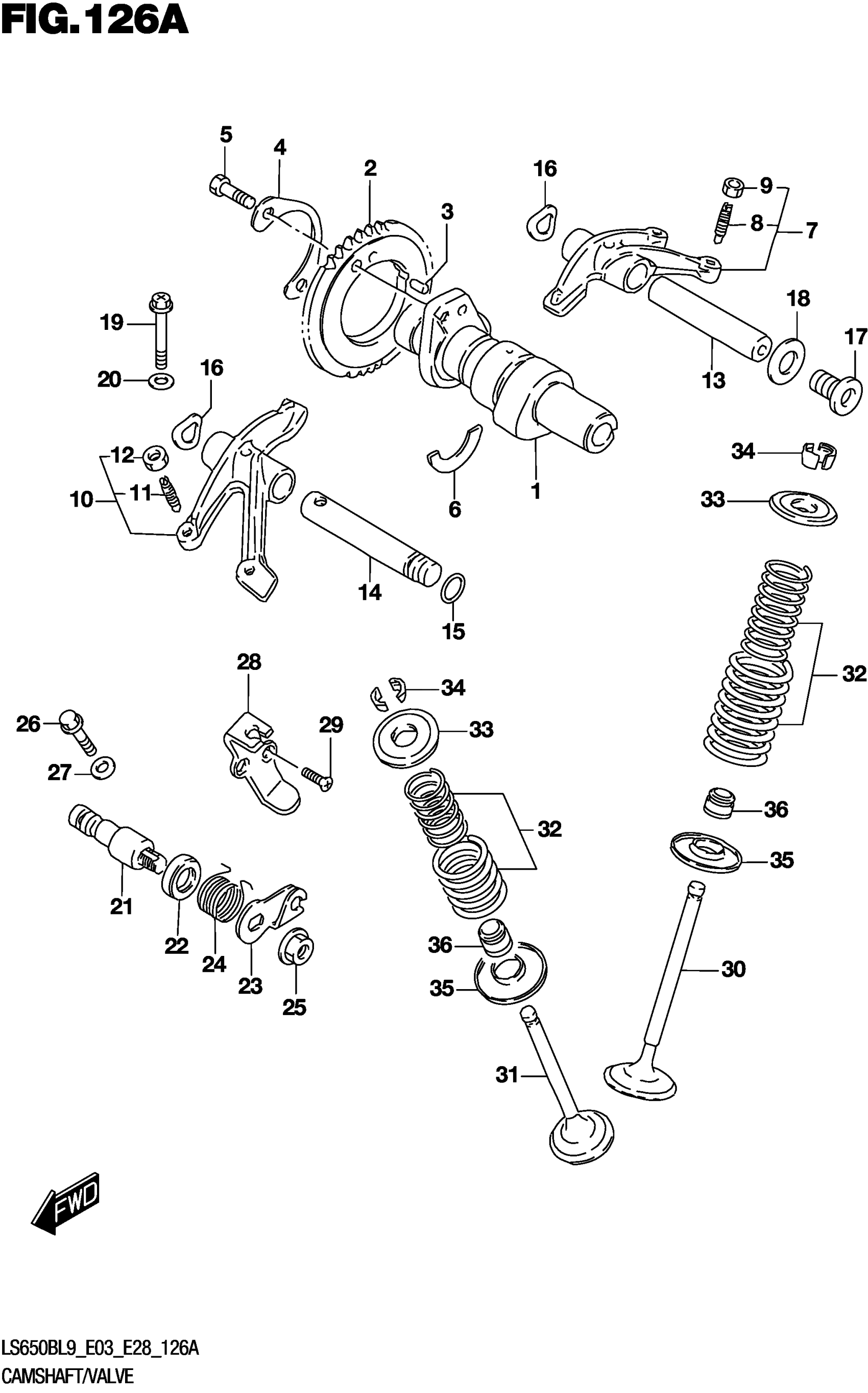

2019 Suzuki LS650BL9 Camshaft/valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM SHAFT

12711-24B11

1

$290.08

In stock

2

SPROCKET

12741-24B00

1
Out of stock

3

PIN (5X12.9)

09261-05009

1

$1.95

In stock

4

WASHER,SPROCKET

12747-44001

1

$2.83

In stock

5

BOLT (6X16)

09111-06053

2

$5.17

In stock

6

C RING

09390-25003

1

$2.69

In stock

7

ARM

12840-24B10

1

$106.10

In stock

8

2

$5.38

In stock

9

.NUT, ADJUSTING SCREW

12843-32400

2

$2.92

In stock

10

ARM

12850-24B10

1

$106.10

In stock

11

2

$5.38

In stock

12

.NUT, ADJUSTING SCREW

12843-32400

2

$2.92

In stock

13

SHAFT | L:73

12861-12D00

1

$33.02

In stock

14

SHAFT | L:78.5

12871-14A00

1

$33.02

In stock

14

SHAFT

12871-14A00

1

$33.02

In stock

15

1

$3.58

In stock

16

WASHER (12.7X18.1X0.2)

09164-12018

2
Out of stock

17

PLUG (14X12)

09248-14011

1
Out of stock

18

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

19

SCREW

02162-0630B

1
Out of stock

20

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

21

SHAFT

12941-24B01

1
Out of stock

22

SEAL,OIL (10X20X6)

09282-10012

1

$7.73

In stock

23

LEVER

12942-24B00

1
Out of stock

24

SPRING | LH

09448-17020

1
Out of stock

25

NUT

08316-1008B

1

$2.85

In stock

26

BOLT (6X16)

09103-06090

1

$1.34

In stock

27

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

28

HOLDER

12944-24B00

1
Out of stock

29

SCREW

02122-0510A

2
Out of stock

30

VALVE

12911-24B01

2

$56.53

In stock

31

VALVE

12912-24B01

2

$113.83

In stock

32

SPRING SET

12920-37402

4

$20.33

In stock

33

RETAINER

12931-45001

4

$9.17

In stock

34

COTTER

12932-82000

8

$3.93

In stock

35

4

$3.70

In stock

36

OIL SEAL (7X14.4X9)

09289-07002

4

$7.84

In stock
