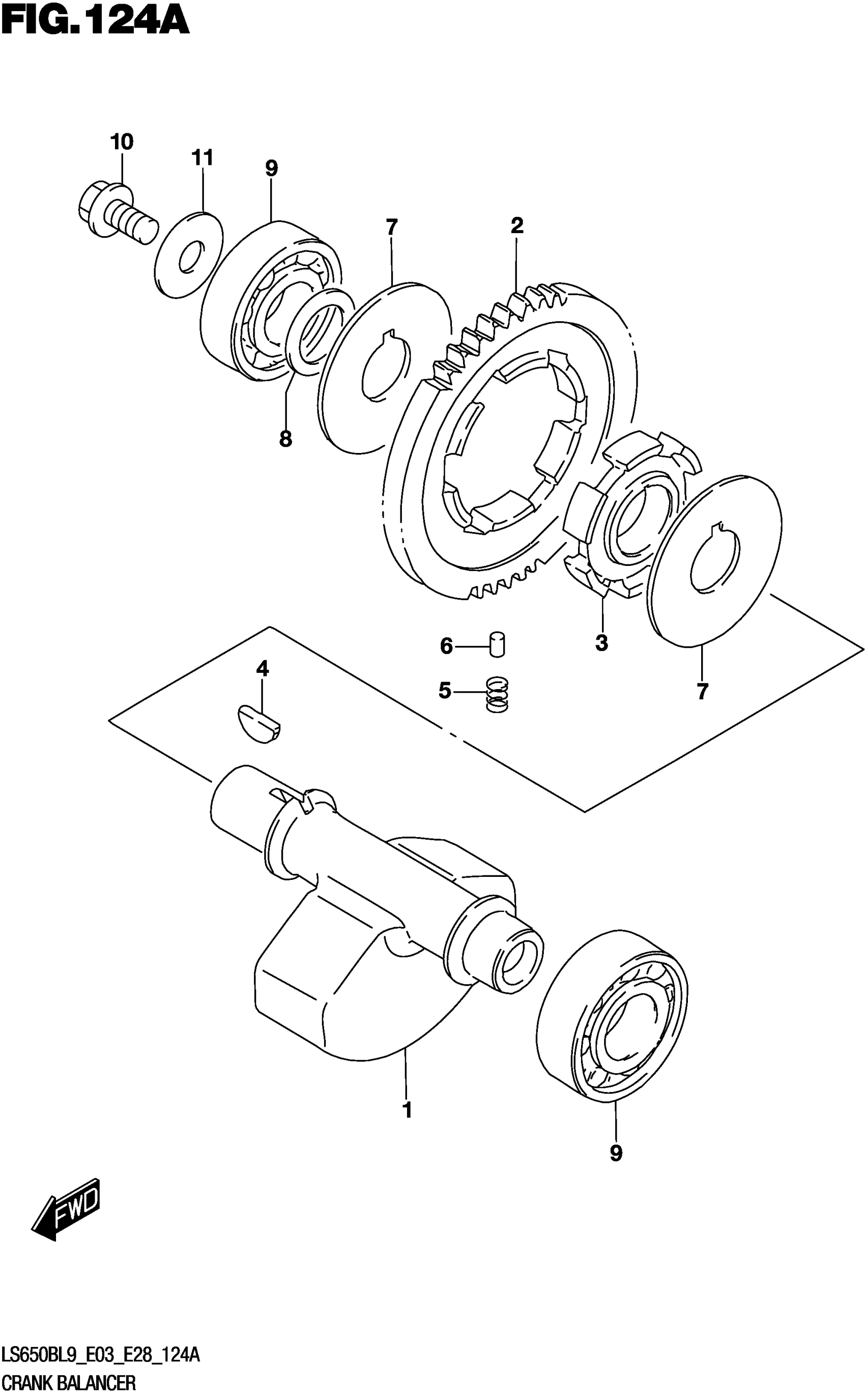

Suzuki LS650BL9 (2019) CRANK BALANCER Diagram

#

Description
Price

1

BALANCER

12651-24B01

Unavailable

2

GEAR

12666-24B01

Unavailable

2

GEAR

12666-24B01

Unavailable

3

RACE

12669-24B01

Unavailable

4

KEY (B:4,D:16,H6.5)

09420-04008

$3.08

5

SPRING

09440-09031

$2.80

6

PIN (4.5X9.5)

09202-04017

$4.12

7

WASHER

09166-20010

Unavailable

8

SHIM (20X28X0.5)

09181-20158

$3.38

9

BEARING (20X47X14)

09262-20089

$32.10

10

BOLT

01550-1016A

$2.84

11

WASHER

08211-10285

$3.19
