1972 Yamaha LS2 (LS2) Steering Diagram

← All diagrams

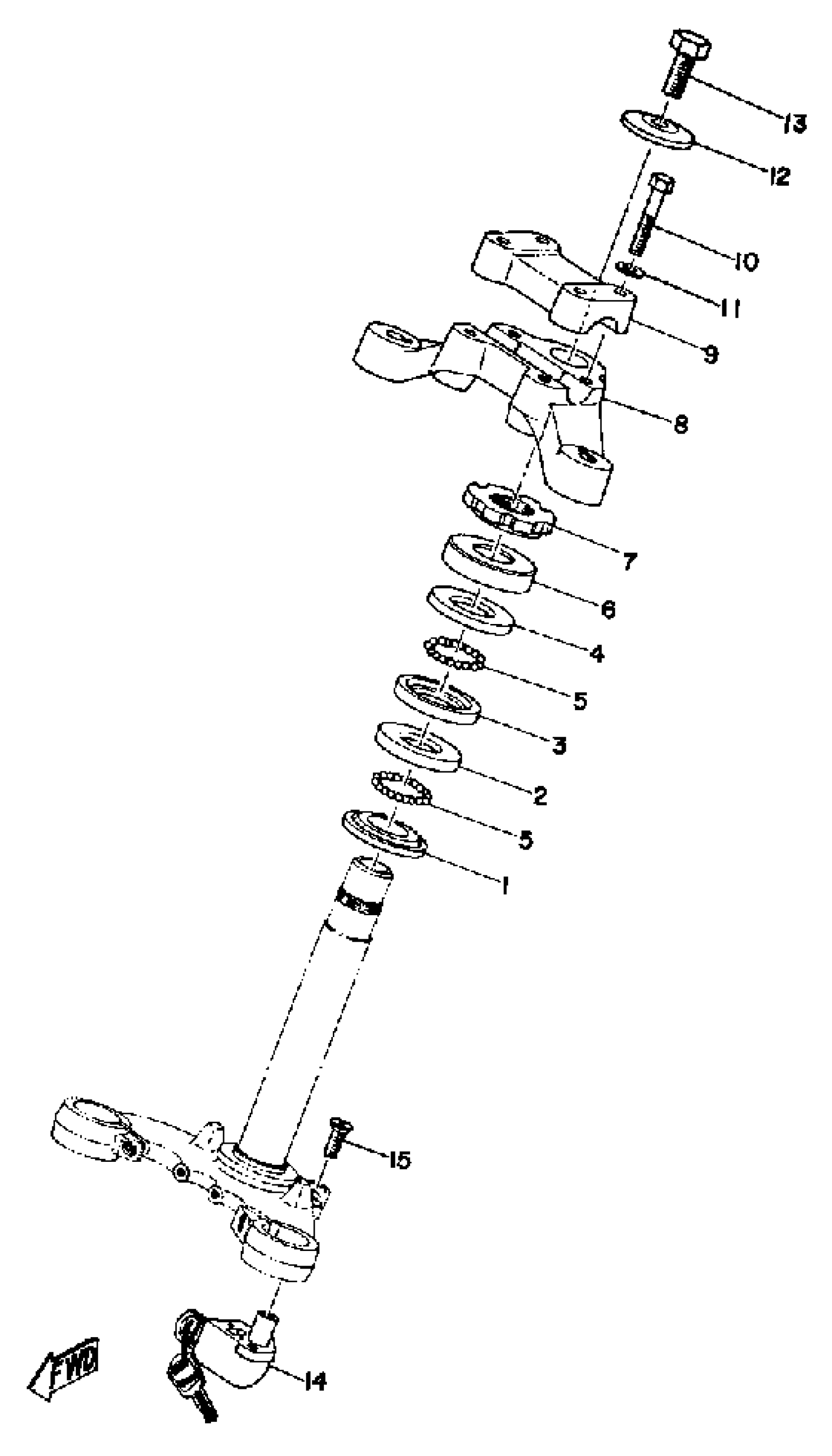

Find the part on the Steering diagram for your 1972 Yamaha LS2 (LS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha LS2 (LS2) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

2

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

3

RACE,BALL 2

4FP-F3412-10-00

—

$3.98

In stock

4

RACE, BALL 1

4FP-F3411-20-00

1

$8.70

In stock

5

BALL

93501-04011-00

1
Out of stock

6

COVER, BALL RACE

136-23415-00-00

1

$7.71

In stock

7

NUT

90179-25004-00

1

$20.78

In stock

8

CROWN, HANDLE

(307-23435-00-98)

1
Out of stock

9

HOLDER HANDLE UPR

164-23441-01-38

1
Out of stock

10

BOLT

97013-08035-00

1

$4.80

In stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

WASHER, PLATE

(90201-10147-00)

1
Out of stock

13

BOLT 1222345100

90105-10006-00

1

$9.17

In stock

14

STEERING LOCK ASSEMBLY

(137-23480-00-00)

1
Out of stock

15

SCREW, FLAT HEAD

98780-06016-00

1

$5.38

In stock
