1972 Yamaha LS2 (LS2) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1972 Yamaha LS2 (LS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

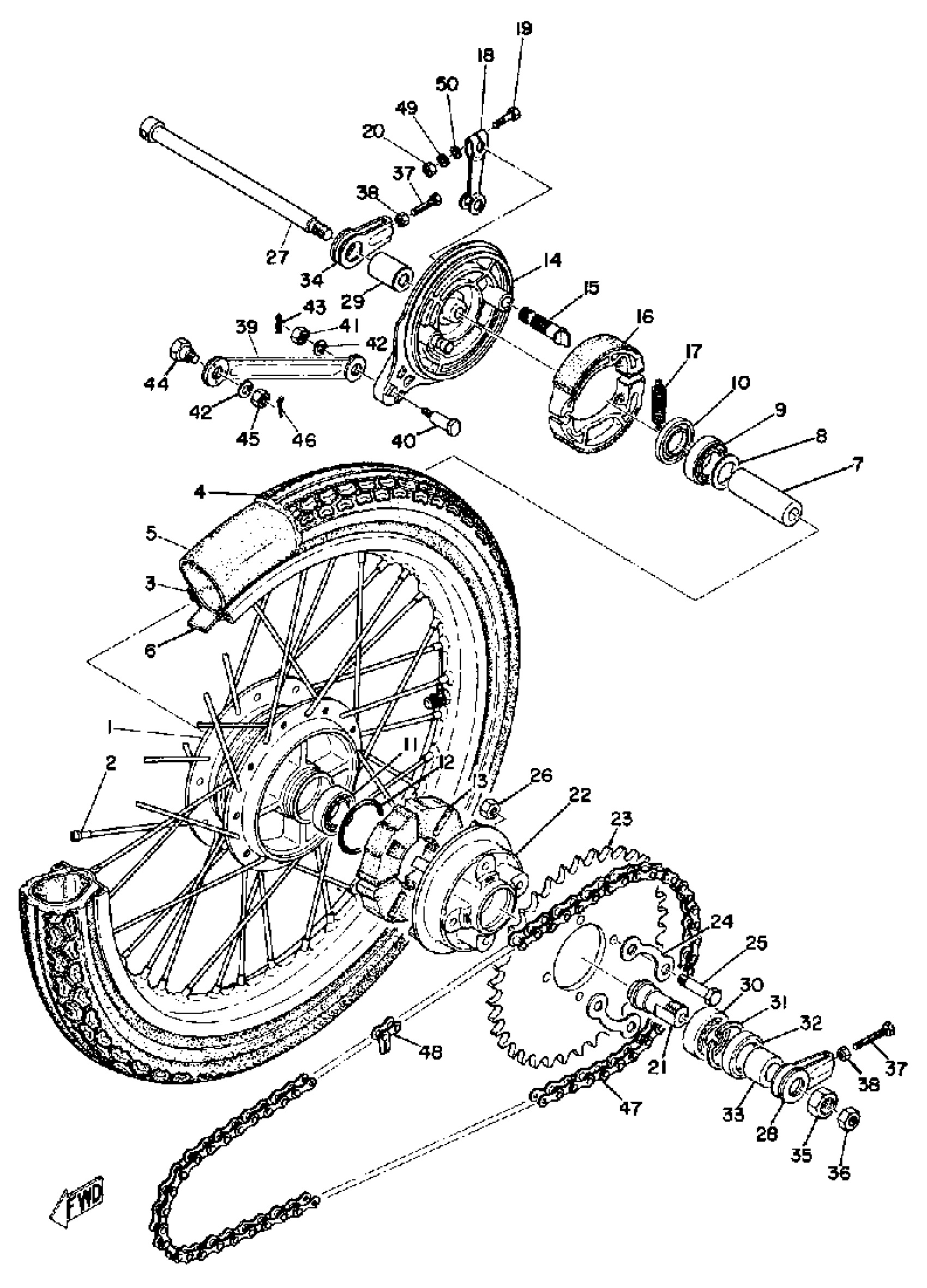

1972 Yamaha LS2 (LS2) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

(132-25311-00-38)

1
Out of stock

2

SPOKE SET, REAR

(164-25304-00-00)

1
Out of stock

3

RIM (1.40-18)

94414-18545-00

1

$107.12

In stock

4

TIRE REAR (164)

(94125-18351-00)

1
Out of stock

5

TUBE (5H5)

94225-18194-00

1

$31.80

In stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

SPACER

90560-12145-00

1

$17.22

In stock

8

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

9

BRG.

93306-30101-00

1

$31.58

In stock

10

OIL SEAL (21X37X7-102)

93104-21016-00

1
Out of stock

11

BEARING

93306-30102-00

1
Out of stock

12

O-RING (102)

93210-41041-00

1

$5.86

In stock

13

DAMPER, CLUTCH

304-25364-01-00

1

$21.12

In stock

14

BRAKE SHOE PLT ASSEMBLY

(339-25320-10-38)

1
Out of stock

15

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

16

BRAKE SHOE KIT

4KN-W253E-11-00

—

$22.40

In stock

17

SPRING, TENSION (566).

90506-16150-00

—

$6.98

In stock

18

LEVER, CAMSHAFT

(307-25355-00-00)

1
Out of stock

19

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

20

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

21

SHAFT, SPROCKET

167-25387-00-00

—

$47.57

In stock

22

CLUTCH, HUB

296-25366-01-33

—
Out of stock

23

SPROCKET, DRIVN 40T

(122-25440-11-33)

1
Out of stock

23

SPROCKET, DRIVN 41T

(122-25441-10-33)

1
Out of stock

23

SPROCKET, DRIVN 42T

122-25442-10-00

1
Out of stock

24

WASHER

4AW-25412-00-00

—

$4.24

In stock

25

BOLT(1AJ)

90101-08672-00

—

$2.69

In stock

26

NUT(6L2)

95333-08600-00

—

$3.20

In stock

27

AXLE, WHEEL

(241-25381-01-00)

1
Out of stock

28

PULLER, CHAIN(L.H)

241-25388-00-00

—

$30.49

In stock

29

COLLAR 195253830000

90387-12102-00

—
Out of stock

30

BEARING(3BN)

93306-00438-00

—

$32.22

In stock

31

CIRCLIP(5U8)

99009-42500-00

—

$6.77

In stock

32

OIL SEAL (30X42X8-102)

93106-30004-00

—

$10.98

In stock

33

COLLAR 167253860000

90387-18144-00

—
Out of stock

34

PULLER, CHAIN

241-25389-10-00

—

$32.18

In stock

35

NUT, HEXAGON

90170-18165-00

—

$7.82

In stock

36

NUT(3BM)

95314-10600-00

—

$1.74

In stock

37

BOLT HEXAGON 167253790000

90101-06016-00

—

$6.37

In stock

38

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

39

BAR, TENSION

27L-25371-00-00

—
Out of stock

40

BOLT 1022537300

90109-08183-00

—

$6.18

In stock

41

. NUT

95380-08700-00

1

$3.07

In stock

42

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

43

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

44

BOLT (183-25378-00)

90109-08368-00

—

$7.00

In stock

45

. NUT

95380-08700-00

1

$3.07

In stock

46

PIN, COTTER

91490-20025-00

—

$1.31

In stock

47

420-106L

94580-52106-00

1
Out of stock

48

JOINT, CHAIN(3KX)

94681-64001-00

—
Out of stock

49

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

50

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock
