1972 Yamaha LS2 (LS2) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1972 Yamaha LS2 (LS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

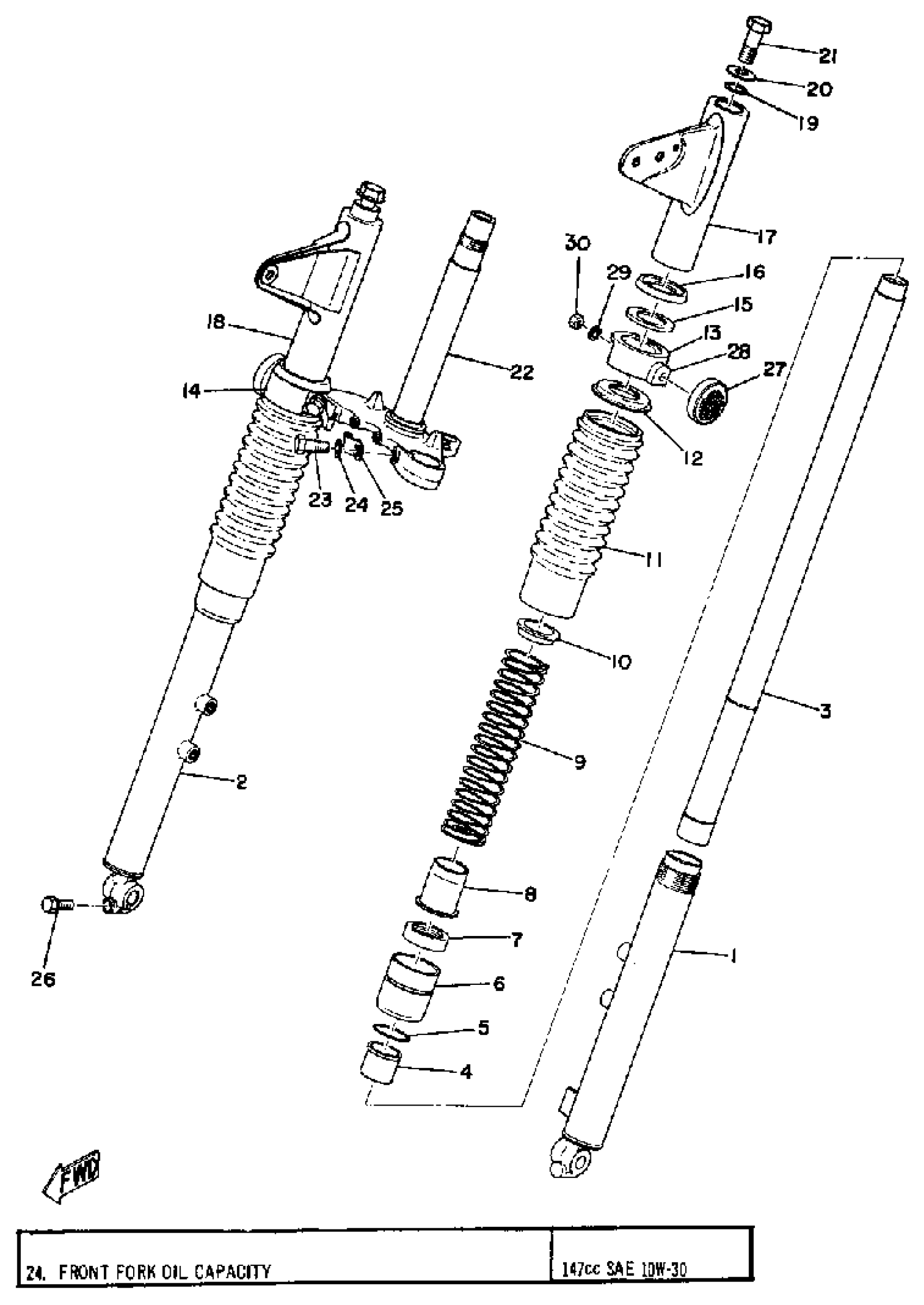

1972 Yamaha LS2 (LS2) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TUBE, OUTER 1

(326-23126-90-93)

1
Out of stock

1

FRONT FORK ASSEMBLY

(327-23100-60-01)

1
Out of stock

2

TUBE, OUTER 2

(326-23136-90-35)

1
Out of stock

3

TUBE, INNER 1

(241-23124-40-00)

1
Out of stock

4

METAL, SLIDE 1

(357-23125-90-00)

1
Out of stock

5

. O-RING

122-23147-00-00

1
Out of stock

6

OUTER NUT

(212-23150-41-00)

1
Out of stock

7

.. UNAVAILABLE IN PRICE BOOK

276-23145-00-00

1
Out of stock

7

OIL SEAL (5R6)

93110-27010-00

—

$22.46

In stock

8

SEAT, SPRING LOWER

(122-23143-00-00)

1
Out of stock

9

SPRING, FRONT FORK

(241-23141-40-00)

1
Out of stock

10

SEAT, SPRING UPPER

(124-23142-00-00)

1
Out of stock

11

BOOT,FRONT FORK

183-23191-40-00

1
Out of stock

12

GUIDE, BOOT

(183-23193-40-00)

1
Out of stock

13

COVER, OUTER 1

(287-23122-60-00)

1
Out of stock

14

COVER, OUTER 2

(287-23132-60-00)

1
Out of stock

15

PACKING(LAMP STAY)

164-23163-00-00

—

$6.46

In stock

16

GUIDE, COVER LOWER

(326-23116-90-00)

1
Out of stock

17

COVER, UPPER 1

(326-23121-90-13)

1
Out of stock

18

COVER, UPPER 2

(326-23131-90-13)

1
Out of stock

19

GASKET

307-23114-00-00

—
Out of stock

20

. WASHER, CAP

276-23112-50-00

1
Out of stock

21

BOLT, CAP

(307-23111-00-00)

1
Out of stock

22

UNDER BRACKET

(326-23340-90-33)

1
Out of stock

23

BOLT 1

122-23346-02-00

—

$6.25

In stock

24

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

25

. HOLDER, CABLE 1

260-23318-40-00

1
Out of stock

26

BOLT, WITH WASHER

(90119-08010-00)

1
Out of stock

27

. REFLECTOR, FRONT 1

341-85111-00-00

1
Out of stock

28

COVER, RFLCTR STAY

(256-23162-60-00)

1
Out of stock

29

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

30

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock
