1972 Yamaha LS2 (LS2) Side Cover - BOX Diagram

← All diagrams

Find the part on the Side Cover - BOX diagram for your 1972 Yamaha LS2 (LS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

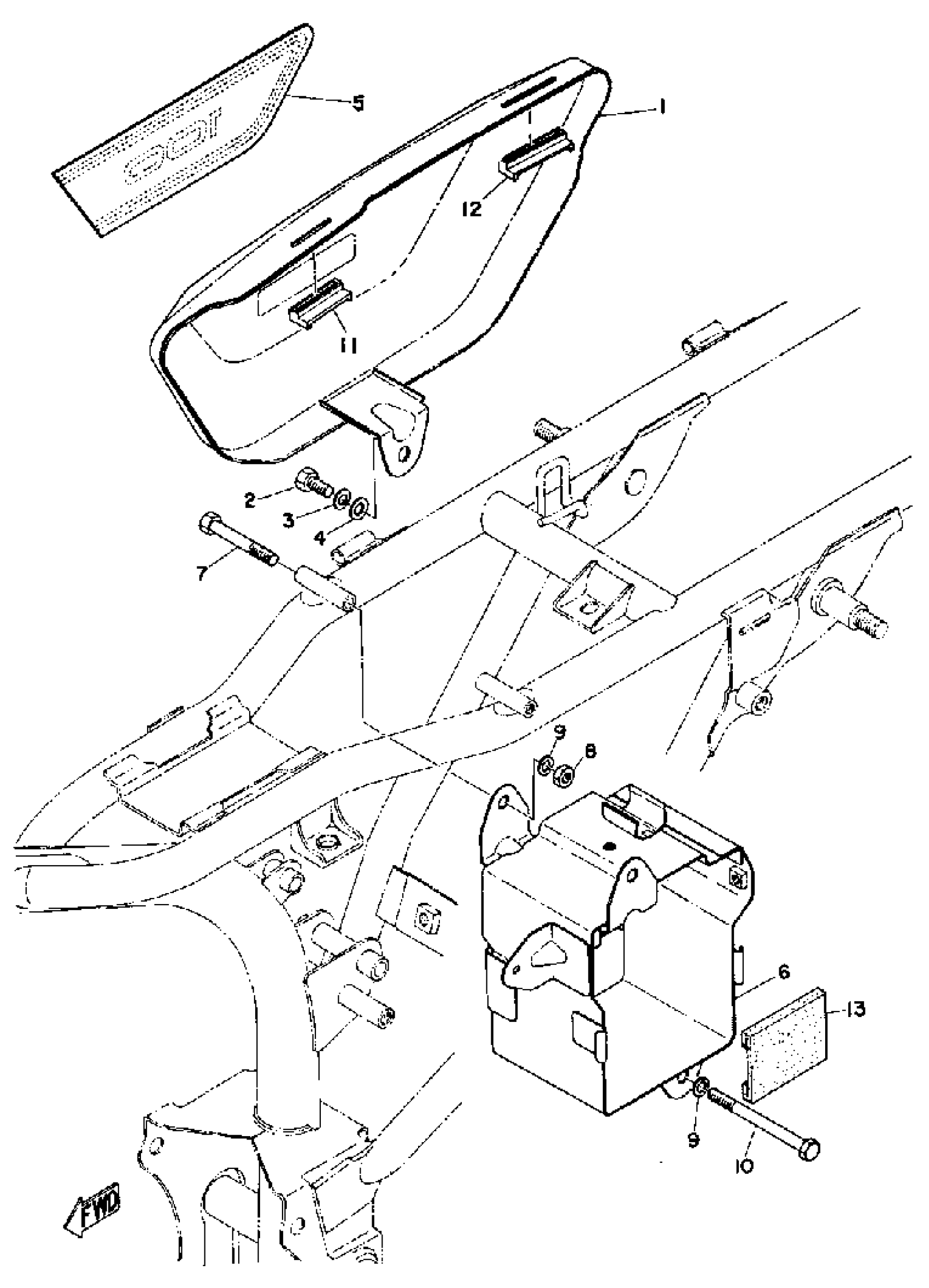

1972 Yamaha LS2 (LS2) Side Cover - BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

(326-21711-00-G3)

1
Out of stock

2

BOLT (661)

97013-06012-00

1

$4.71

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

5

EMBLEM 2

(327-21782-01-00)

1
Out of stock

6

BOX, BATT.

(307-21170-00-33)

1
Out of stock

7

BOLT, HEXAGON

97013-06045-00

1

$1.51

In stock

8

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

BOLT(62J)

97013-06070-00

—

$3.37

In stock

11

DAMPER

278-21717-00-00

1
Out of stock

12

DAMPER

(326-21717-00-00)

1
Out of stock

13

PAD, BATTERY

(307-82121-00-00)

1
Out of stock
