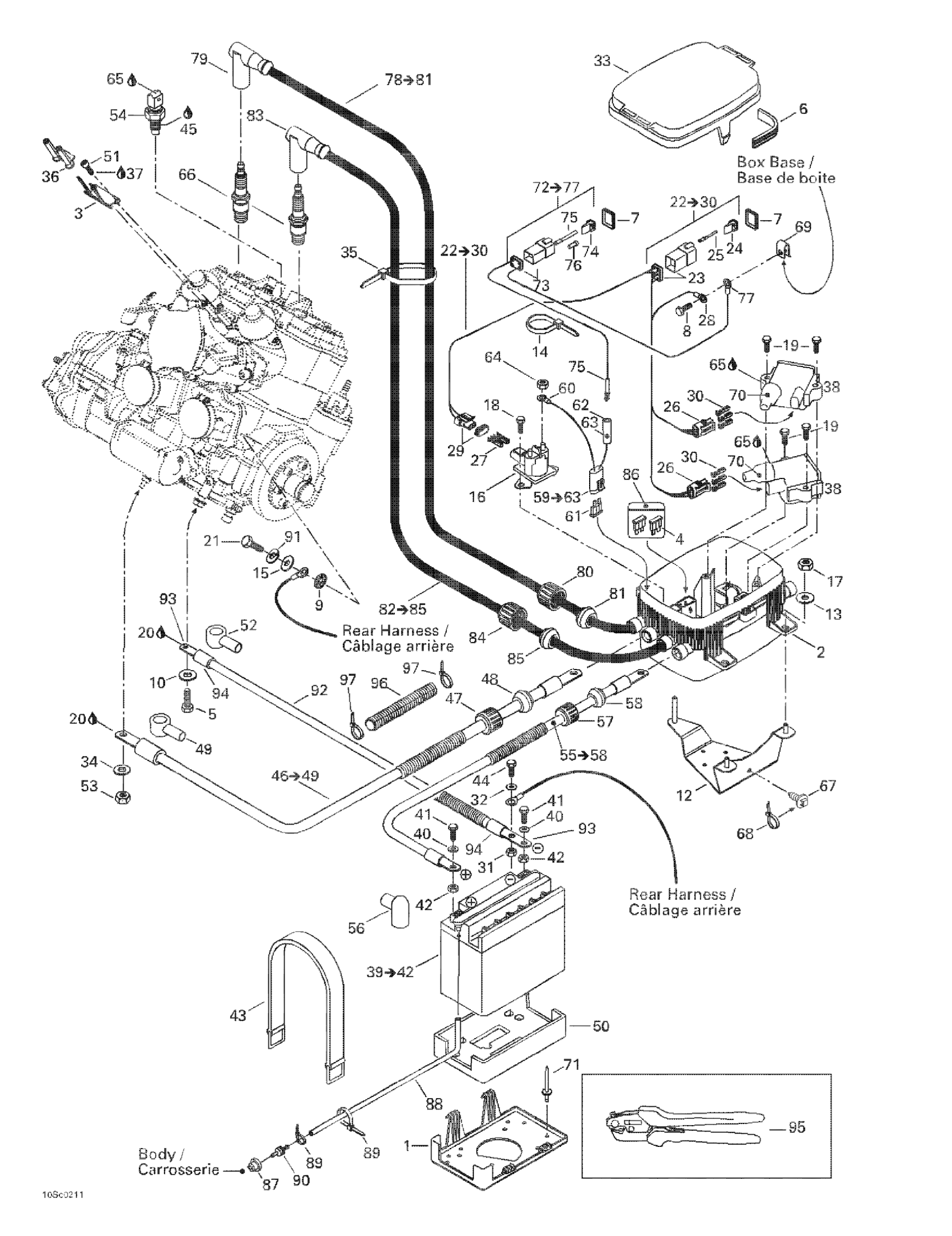

Sea-doo LRV DI, 5460, 2002 Rear Electrical Box Diagram

#

Description
Price

1

Battery Support

278001430

Unavailable

2

Electric Box Base

278001760

Unavailable

3

GROUND PLATE - Call your local BRP dealership

278001662

$18.43

4

Fuse, 25 Amperes

278001443

$3.26

Fuse, 15 Amperes

278000343

$2.72

5

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.29

6

GASKET - Call your local BRP dealership

278001173

Unavailable

7

Gasket

293200030

Unavailable

8

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91

9

External Serrated Lock Washer 6 mm

234461608

$0.92

10

Flat Washer 10 mm, Stainless

234001600

$0.91

11

Avdel Rivet 3/16"

293150037

$0.47

12

Electric Box Support Ass'y

278001426

Unavailable

13

Flat Washer M6, Stainless

234062600

$0.64

14

Tie Wrap 142 mm

293750002

$0.88

15

Stainless Flat Washer M6

234061600

$0.25

16

Starter Relay

278003012

$35.07

17

Hex. Elastic Stop Nut M6

232561600

$0.92

18

Hex. Flange Screw M6 X 10

210261040

$1.25

19

SCREW-TAPP.HEX.ISO.1479F - Call your local BRP dealership

209463840

$0.83

20

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

21

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

22

Box Harness | Includes 17 to 25

278001458

Unavailable

23

Male Terminal Housing, 6 Circuits

710001539

$15.57

24

Female Lock, 6 Circuits

278000735

$3.02

25

Male Terminal

278000631

$4.12

26

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278001467

$9.97

27

Female Terminal

278001114

$2.55

28

Open Barrel Terminal

278001392

$4.12

29

Male Connector, 2 Circuits

278001113

$12.65

30

FEMALE TERMINAL - Call your local BRP dealership

278001468

$6.89

31

Hex. Elastic Stop Nut M6

232561600

$0.92

32

Stainless Flat Washer M6

234061600

$0.25

33

ELECTRIC BOX COVER - Call your local BRP dealership

278001433

$63.82

34

Stainless Flat Washer M6

234061600

$0.25

35

Tie Wrap 142 mm

293750002

$0.88

36

INSULATOR - Call your local BRP dealership

278001512

$7.89

37

Loctite 243, 10 ml

293800060

$20.77

38

IGNITION COIL - Call your local BRP dealership

278001451

Unavailable

39

Battery 19A | Includes 5 to 8

278001756

$162.45

40

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

41

Hex. Screw M6 X 16

207161644

$0.61

42

Hex. Nut M6

232061414

$0.44

43

Retainer Strap

293850097

$9.26

44

Hex. Cap Screw M6 X 12

207161260

$1.25

45

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

46

STARTER RED CABLE - Call your local BRP dealership | Includes 44 to 47

278001437

$45.35

47

Electric Wire Cap

278000100

Unavailable

48

GROMMET - Call your local BRP dealership

278000098

Unavailable

49

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

50

Lower Battery Pad

278001746

Unavailable

51

Socket Head Screw M6 X 25

205062560

$1.42

52

Wire Cap (Black)

278001491

Unavailable

53

Hex. Elastic Stop Nut M6

232561600

$0.92

54

Temperature Sensor

278002895

$31.82

55

POSITIVE CABLE ASS'Y - Call your local BRP dealership | Includes 13 to 16

204470286

Unavailable

56

RED BOOT - Call your local BRP dealership

204470269

Unavailable

57

Electric Wire Cap

278000100

Unavailable

58

GROMMET - Call your local BRP dealership

278000098

Unavailable

59

Fuse Harness, 30 Amperes | Includes 37 to 41

278001453

Unavailable

60

Open Barrel Terminal

278001392

$4.12

61

Fuse, 30 Amperes

410917200

$3.22

62

FEMALE TERMINAL - Call your local BRP dealership

515175260

$7.09

63

Deutsch Joint Housing

515175259

Unavailable

64

Hex. Elastic Stop Nut M6

232561600

$0.92

65

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

66

Spark Plug NGK Zfr4f-11

278001650

$4.60

67

Mount Dart

293730040

$0.86

68

Tie-Rap 180 mm

414115200

$0.09

69

U Type Nut M6

250100029

Unavailable

70

PROTECTOR CAP - Call your local BRP dealership

278001470

$11.06

71

Pop Rivet 3/16"

293150008

$0.40

72

ELECTRIC BOX HARNESS ASS'Y - Call your local BRP dealership | Includes 26 to 30

278001494

Unavailable

73

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

$29.20

74

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

$2.86

75

MALE TERMINAL - Call your local BRP dealership

515175261

$4.72

76

Sealing Cap

293000052

$2.55

77

Open Barrel Terminal

278001392

$4.12

78

COIL CABLE, 735 MM - Call your local BRP dealership | Includes 31 to 33

278001454

$86.12

79

Spark Plug Cap

278001452

Unavailable

80

Electric Wire Cap

278000100

Unavailable

81

Grommet

278000682

Unavailable

82

COIL CABLE, 635MM - Call your local BRP dealership | Includes 34 to 36

278001466

$83.05

83

Spark Plug Cap

278001452

Unavailable

84

Electric Wire Cap

278000100

Unavailable

85

Grommet

278000682

Unavailable

86

Not Available As Spare Part - Friction Washer

Unavailable

87

Grommet

293720029

$1.13

88

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

89

Tie Wrap 94 mm | 4X4

293750001

$0.83

90

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

91

Lock Washer Helical M6

234161601

$0.92

92

Battery Ground Cable | Includes 93,94

278000973

Unavailable

93

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

94

Not Available As Spare Part - Friction Washer

Unavailable

95

Not Available As Spare Part - Friction Washer

Unavailable

96

SPLIT LOOM 3/8, METER - Call your local BRP dealership

204050326

$7.46

97

Tie Wrap 94 mm | 4X4

293750001

$0.83
