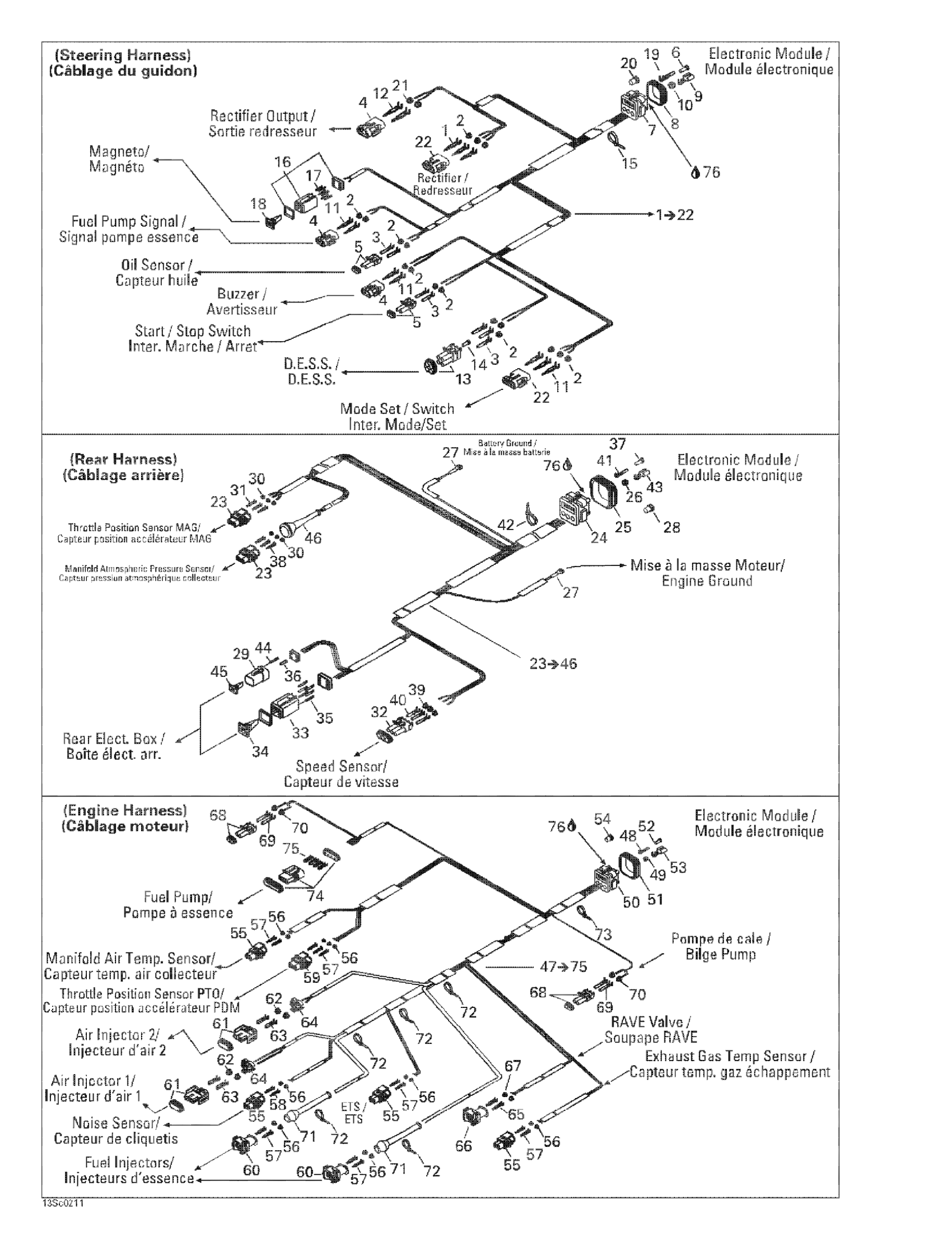

Sea-doo LRV DI, 5460, 2002 Electrical Harness Diagram

#

Description
Price

1

Steering Harness | Includes 1 - 22.

278001460

Unavailable

1

Male Terminal

409004300

$5.46

2

Wire Seal

278000218

$3.48

3

Female Terminal

278000223

$2.55

4

Female Housing, 2 Circuits

278000217

$7.59

5

Male Connector, 2 Circuits

278000220

$11.02

6

SEALING CAP - Call your local BRP dealership

293000070

$4.58

7

Male Terminal Housing, 26 Circuits

278001062

Unavailable

8

WIRE SEAL - Call your local BRP dealership

278001307

$11.51

9

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

10

WIRE SEAL - Call your local BRP dealership

278000996

$2.37

11

Male Terminal | XT Models

278000222

$2.55

12

MALE TERMINAL - Call your local BRP dealership

278001576

$4.58

13

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

$9.97

14

Wire Seal

278000216

$2.55

15

Tie Wrap 142 mm

293750002

$0.88

16

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

17

Female Terminal

278000632

$1.69

18

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

$2.48

19

FEMALE TERMINAL - Call your local BRP dealership

278000995

$4.58

20

SEAL - Call your local BRP dealership

409013900

$9.20

21

WIRE SEAL - Call your local BRP dealership

278001505

$5.45

22

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

23

Rear Harness | Includes 23 - 46.

204470677

Unavailable

23

Male Housing, 3 Circuits

278000997

$15.57

24

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

$32.28

25

WIRE SEAL - Call your local BRP dealership

278001307

$11.51

26

Seal

278001223

Unavailable

27

Open Barrel Terminal

278001392

$4.12

28

SEAL - Call your local BRP dealership

409013900

$9.20

29

Female Terminal Housing, 4 Circuits

278001473

$25.35

30

Wire Seal

278000999

$2.55

31

Female Terminal

278000998

$3.48

32

Male Housing, 3 Circuits

278000273

$7.59

33

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

34

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

$2.48

35

Female Terminal

278000632

$1.69

36

Sealing Cap

293000052

$2.55

37

SEALING CAP - Call your local BRP dealership

293000070

$4.58

38

FEMALE TERMINAL - Call your local BRP dealership

278001210

$8.43

39

Wire Seal

278000218

$3.48

40

Female Terminal

278000223

$2.55

41

FEMALE TERMINAL - Call your local BRP dealership

278000995

$4.58

42

Tie Wrap 142 mm

293750002

$0.88

43

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable

44

FEMALE TERMINAL - Call your local BRP dealership

515175260

$7.09

45

Female Lock, 4 Circuits

278001474

$3.02

46

Wire Boot(Bosch)

278001002

Unavailable

47

Engine Harness Ass'y | Includes 47 - 75.

204470679

Unavailable

48

FEMALE TERMINAL - Call your local BRP dealership

278000995

$4.58

49

Seal

278001223

Unavailable

50

MALE CONNECTOR, 26 CIRCUITS - Call your local BRP dealership

278001211

$35.35

51

WIRE SEAL - Call your local BRP dealership

278001307

$11.51

52

SEALING CAP - Call your local BRP dealership

293000070

$4.58

53

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

54

SEAL - Call your local BRP dealership

409013900

$9.20

55

Male Housing, 2 Circuits

278001005

$15.57

56

Wire Seal

278000999

$2.55

57

Female Terminal

278000998

$3.48

58

FEMALE TERMINAL - Call your local BRP dealership

278001210

$8.43

59

Male Housing, 3 Circuits

278000997

$15.57

60

Male Connector, 2 Circuits

278001003

$44.58

61

MALE CONNECTOR, 2 CIRCUITS - Call your local BRP dealership

278001480

$10.74

62

Seal

278001482

$2.55

63

Female Terminal

278001481

$3.02

64

LOCK, 2 CIRCUITS - Call your local BRP dealership

278001483

$2.28

65

Female Terminal

278000998

$3.48

66

Male Connector, 2 Circuits

278001003

$44.58

67

Wire Seal

278000999

$2.55

68

Male Connector, 2 Circuits

278000220

$11.02

69

Female Terminal

278000223

$2.55

70

Wire Seal

278000218

$3.48

71

RUBBER CAP - Call your local BRP dealership

278001484

$25.35

72

Tie Wrap 94 mm | 4X4

293750001

$0.83

73

Tie Wrap 142 mm

293750002

$0.88

74

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

75

Female Terminal

278001114

$2.55

76

*(Ormd) *Deoxit Aerosol *

293550034

$38.99
