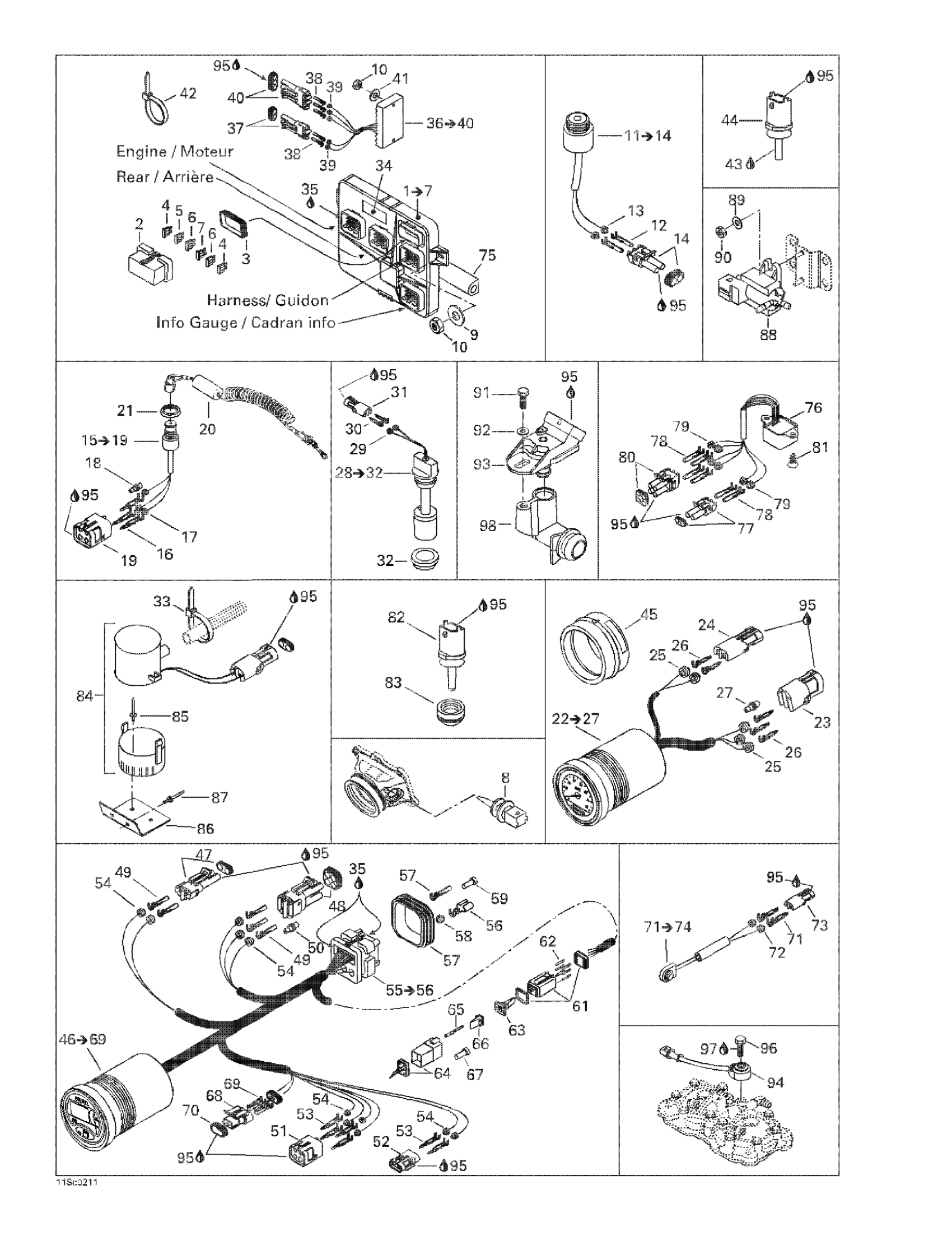

Sea-doo LRV DI, 5460, 2002 Electronic Module And Electrical Accessories Diagram

#

Description
Price

1

Electronic Module Ass'y | Includes 6 to 12

278001747

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

3

Cover Seal

278001070

Unavailable

4

Fuse, 15 Amperes

278000343

$2.72

5

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

6

Fuse, 25 Amperes

278001443

$3.16

7

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

8

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

9

Flat Washer M6, Stainless

234062600

$0.64

10

Hex. Elastic Stop Nut M6

232561600

$0.92

11

Buzzer Ass'y | Includes 11 - 14.

278000978

Unavailable

12

Female Terminal

278000223

$2.55

13

Wire Seal

278000218

$3.48

14

Male Connector, 2 Circuits

278000220

$11.02

15

Safety Switch | Includes 15 - 19.

278000977

Unavailable

16

Male Terminal | XT Models

278000222

$2.55

17

Wire Seal

278000218

$3.48

18

Wire Seal

278000216

$2.55

19

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

20

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$68.87

21

Safety Nut (DESS Switch)

278002963

$2.72

22

Speedometer | Includes 22 - 27.

278001359

Unavailable

23

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

24

Female Housing, 2 Circuits

278000217

$7.59

25

Wire Seal

278001065

$5.85

26

Male Terminal | XT Models

278000222

$2.55

27

Wire Seal

278000216

$2.55

28

OIL SENSOR - Call your local BRP dealership | Includes 18 to 22

278001515

Unavailable

29

Wire Seal

278000218

$3.48

30

Male Terminal | XT Models

278000222

$2.55

31

Female Housing, 2 Circuits

278000217

$7.59

32

Grommet

293720008

$10.91

33

Tie Wrap 142 mm

293750002

$0.88

34

Module Decal

204901016

Unavailable

35

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

36

Rectifier Ass’Y | Includes 30 - 34.

278001554

Unavailable

37

Male Connector, 2 Circuits

278000220

$11.02

38

Female Terminal

409007300

$0.36

39

Wire Seal

278000218

$3.48

40

Male Housing, 3 Circuits

278000273

$7.59

41

Stainless Flat Washer M6

234061600

$0.25

42

Tie-Rap 180 mm

414115200

$0.09

43

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

44

Temperature Sensor

278002895

$31.82

45

Gauge Support

293720047

Unavailable

46

LCD Info Gauge | Includes 46 - 69.

204470675

Unavailable

47

Male Connector, 2 Circuits

278000220

$11.02

48

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

49

Female Terminal

278000223

$2.55

50

Wire Seal

278000216

$2.55

51

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

52

Female Housing, 2 Circuits

278000217

$7.59

53

Male Terminal | XT Models

278000222

$2.55

54

Wire Seal

278001065

$5.85

55

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

56

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

57

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

58

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

59

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

60

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

61

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

62

Female Terminal

278000632

$1.69

63

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

64

Male Terminal Housing, 6 Circuits

710001539

$15.57

65

Male Terminal

278000631

$4.00

66

Female Lock, 6 Circuits

278000735

$2.93

67

Sealing Cap

293000052

$2.55

68

Male Housing, 2 Circuits

278001005

$15.57

69

Female Terminal

278000998

$3.48

70

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

71

SWITCH ASS. START/STOP - Call your local BRP dealership | Includes 71 - 74.

278001353

Unavailable

72

Male Terminal | XT Models

278000222

$2.55

73

Wire Seal

278000218

$3.48

74

Female Housing, 2 Circuits

278000217

$7.59

75

Was 293200017 Neoprene Seal

219704365

$118.27

76

Compass | GTI RFI LE, Includes 38 to 42

278001243

Unavailable

77

Male Connector, 2 Circuits

278000220

$11.02

78

Female Terminal

278000223

$2.55

79

Wire Seal

278000218

$3.48

80

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

81

Black, Dart

293730016

$6.94

82

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

83

INSULATOR - Call your local BRP dealership

278001054

Unavailable

84

Bilge Pump This part replaces 204470220.

278002020

$79.92

85

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

86

Bilge Pump Support

204050304

Unavailable

87

Pop Rivet 3/16"

293150008

$0.40

88

SOLENOID VALVE - Call your local BRP dealership

270600044

Unavailable

89

Flat Washer M5, Stainless

234051600

$0.64

90

Hex. Elastic Nut M5 | X

232551600

$0.91

91

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

92

Flat Washer | XT

211200035

$0.46

93

Pressure Sensor

270600040

$157.92

94

Noise Sensor

270000484

$65.62

95

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

96

Hex. Screw M8 X 30

207183060

$1.30

97

Loctite 243, 10 ml

293800060

$20.77

98

VALVE ADAPTOR - Call your local BRP dealership

270600019

Unavailable
