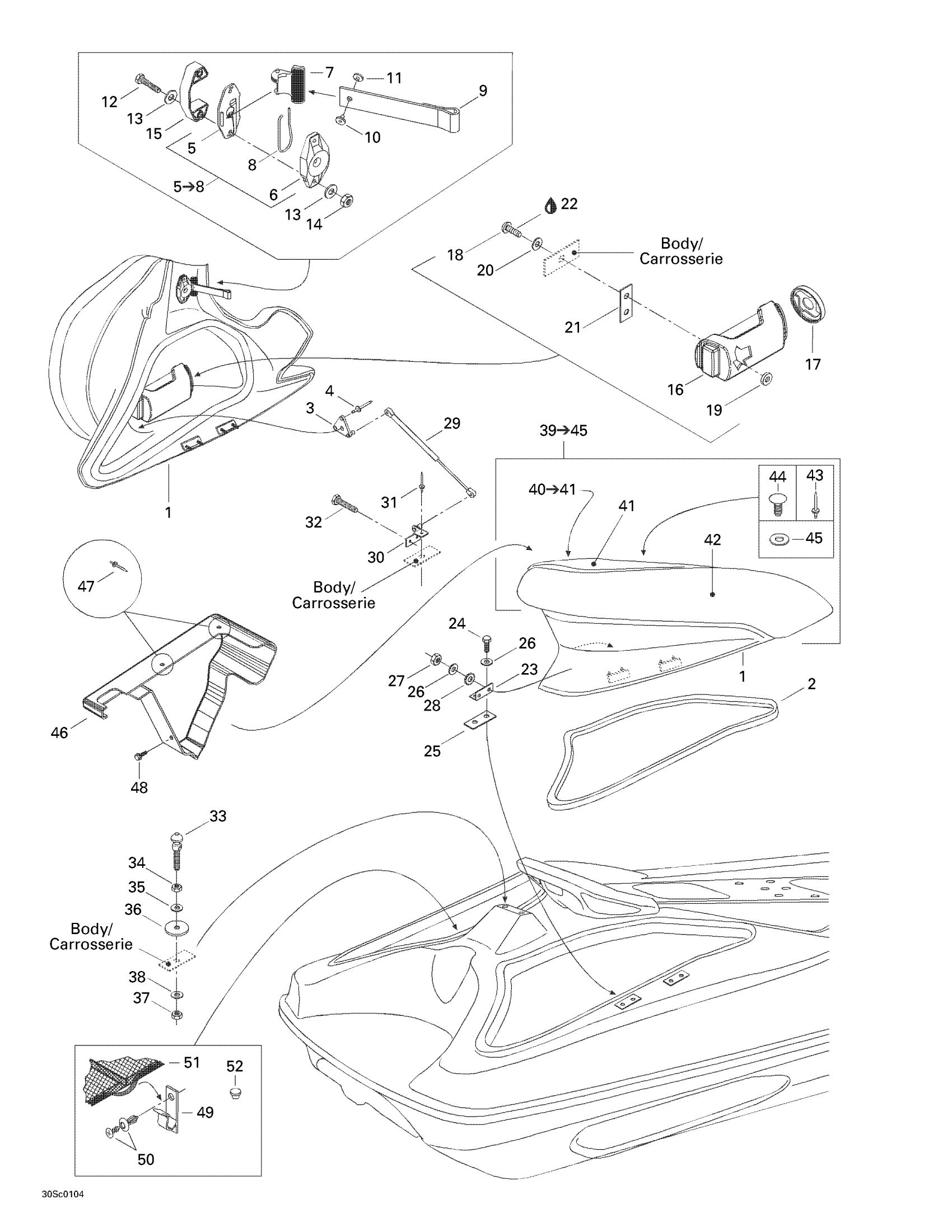

Sea-doo LRV, 5697, 2001 Body Diagram

#

Description
Price

1

Eye-Bow (Black) This part replaces 292000708.

292000452

$33.12

2

Black Shell

292001837

$14.92

3

Stainless, Flat Washer 8 mm

234081600

$0.46

4

Flat Washer 8 mm, Stainless

234082600

$1.98

5

Rubber Washer

293830037

$2.75

6

Hex. Elastic Nut M8

232581600

$1.25

7

Silicone Sealant 51388, 300 ml

296000309

$35.72

8

RH SPONSON - Call your local BRP dealership

292000594

Unavailable

LH SPONSON - Call your local BRP dealership

292000595

Unavailable

9

GASKET - Call your local BRP dealership

293250026

Unavailable

10

Flat Washer M6, Stainless

234062600

$0.64

11

Hex. Elastic Stop Nut M6

232561600

$0.92

12

LH SPRING CLIP - Call your local BRP dealership

292000398

Unavailable

13

Pop Rivet 3/16"

293150008

$0.40

14

Mount Dart

293730040

$0.86

15

Tie-Rap 180 mm

414115200

$0.09

Tie Wrap 368 mm

293750008

$0.85

16

Bailer Screen

292000688

Unavailable

17

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

18

Tie Wrap 94 mm | 4X4

293750001

$0.83

19

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

20

Hose 6 Mm 15000Mm Long

219704360

$104.62

21

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

22

CUSHION - Call your local BRP dealership

292000414

Unavailable

23

Insert

293450149

Unavailable

24

VENT ADAPTOR - Call your local BRP dealership

291001100

Unavailable

25

Protector

291001512

Unavailable

26

Tube Vent

291001473

Unavailable

27

Rear Vent Tube

291001441

Unavailable

28

Vent Hose

204070575

Unavailable

29

Pop Rivet 3/16"

293150008

$0.40

30

Tie Wrap 368 mm

293750008

$0.85

31

Stud Latch

291000664

Unavailable

32

Rubber Pad

293830025

Unavailable

33

Flat Washer 10 mm, Stainless

234002600

$1.85

34

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

35

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

36

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

37

Seat Hook

291001479

Unavailable

38

Restrictor

291001617

$13.49

39

Flat Washer M6, Stainless

234062600

$0.64

40

Grommet

293720029

$1.13

41

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

42

Grab Handle (Black) | Includes 42 - 46.

295500369

Unavailable

43

Flat Washer M6, Stainless

234062600

$0.64

44

Hex. Screw M6 X 40

207064060

$1.40

45

Lock Washer Helical M6

234161601

$0.92

46

Hex. Nut M6

232061600

$0.91

47

Hex. Screw M6 X 65

207166560

$2.69

48

Stainless Flat Washer M6

234061600

$0.25

49

Hex. Elastic Stop Nut M6

232561600

$0.92

50

Tie-Rap

293750017

Unavailable

51

Hose 5/16"

204560070

Unavailable

52

LH Moulding

291001403

Unavailable

RH Moulding

291001404

Unavailable

53

RIVET - Call your local BRP dealership

293150065

Unavailable

54

Hex. Flange Screw K40 X 16

241141660

$1.25

55

Flat Washer 5 mm, Stainless

234052600

$0.64

56

RH Intake Grille (Starboard)

269500715

Unavailable

LH Intake Grille (Port)

269500714

Unavailable

57

RH Knee Pad

204070954

Unavailable

LH Knee Pad

204070956

Unavailable

58

Black, Dart

414644300

$0.78

59

FINITION PLATE - Call your local BRP dealership

269500716

Unavailable

60

BRP Logo 48mm

516008738

$12.87

61

Push Nut

250100008

Unavailable

62

Flat Washer, Stainless/Neoprene

211200055

$0.68

63

Hex. Flange Screw K40 X 16

241141660

$1.25

64

FLAT WASHER - Call your local BRP dealership

211200033

Unavailable

65

BRIDGE LOWER - Call your local BRP dealership

291001281

Unavailable

66

Vent Tube (Rear)

204071320

Unavailable

67

O-Ring

293300063

Unavailable

68

Bridge Upper

291000851

Unavailable

69

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

70

Hex. Jam Nut M10

232100600

$1.85

71

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

72

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

73

REINFORCEMENT PLATE - Call your local BRP dealership

291000079

Unavailable

74

Hex. Screw M6 X 70

207067060

$4.62

75

Loctite 243, 10 ml

293800060

$20.77

76

Lock Washer Helical M6

234161601

$0.92

77

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

78

Hex. Nut M6

232061600

$0.91

79

Rubber Pad | Includes 79 - 81.

293830090

Unavailable

80

Was 293200017 Neoprene Seal

219704365

$118.27

81

Hose 6 Mm 15000Mm Long

219704360

$104.62

82

GROMMET - Call your local BRP dealership

293720042

Unavailable

83

Tie-Rap 180 mm

414115200

$0.09

84

Engine Access Panel

204070561

Unavailable

85

Black, Dart

293730006

$0.81

86

Retaining Plate

204050341

Unavailable

87

Pop Rivet 3/16"

293150014

$0.87

88

Storage Extension

204050197

Unavailable

89

Pop Rivet 3/16"

293150008

$0.40
