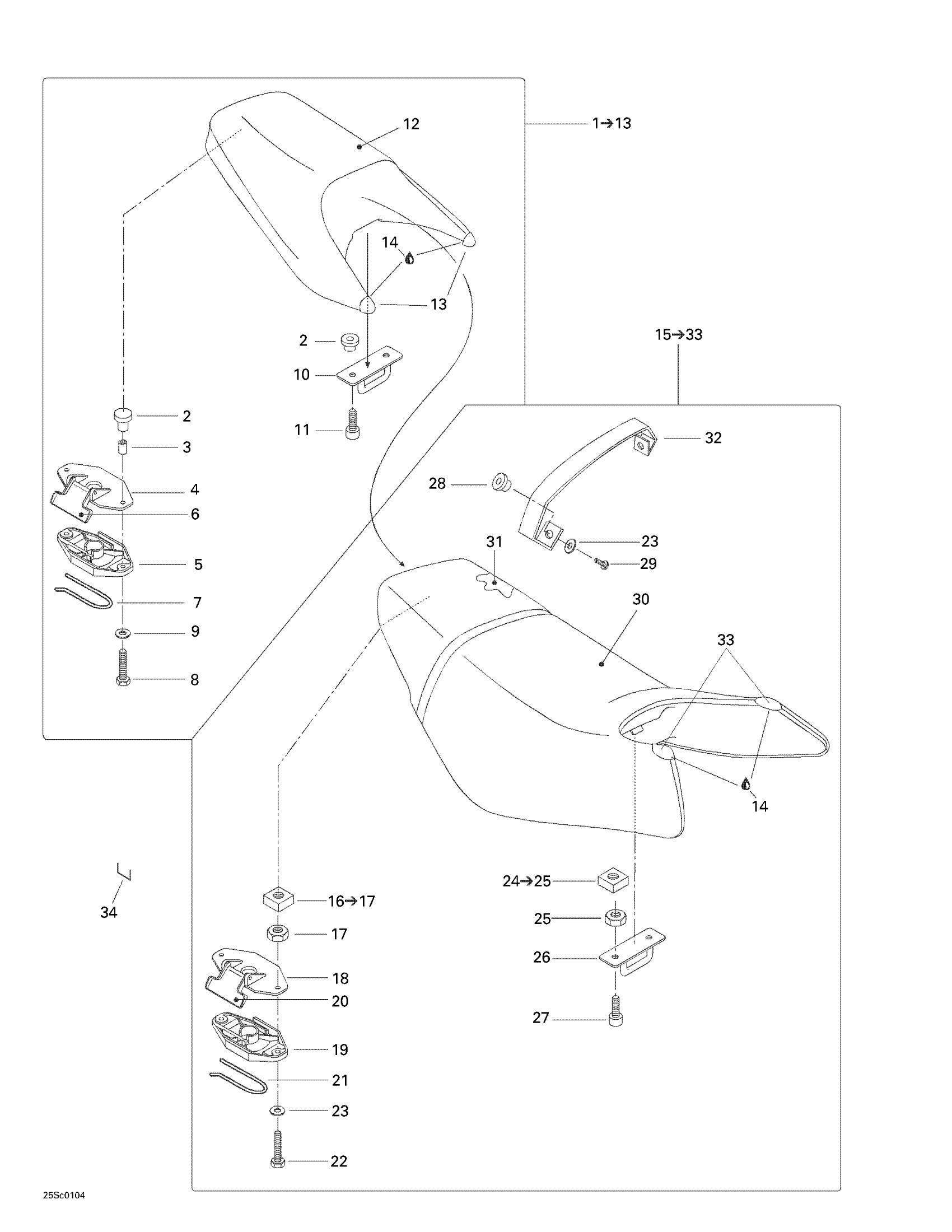

Sea-doo LRV, 5697, 2001 Seat Rear And Front Diagram

#

Description
Price

1

Rear Seat Ass'y | Includes 1 - 13.

204611156

Unavailable

2

Nut Welded, M6

293100003

$7.25

3

SPACER - Call your local BRP dealership

291000532

Unavailable

4

Latch Ass'y

269700109

$23.10

5

Latch Ass'y

269700109

$23.10

6

Latch Ass'y

269700109

$23.10

7

Latch Spring

269700017

$8.34

8

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.73

9

Stainless Flat Washer M6

234061600

$0.28

10

Hook (Seat Base)

291001357

Unavailable

11

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.57

12

Rear Seat Cover

204611157

Unavailable

13

RH Rear Seat Corner

204611158

Unavailable

LH Rear Seat Corner

204611159

Unavailable

14

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

15

Front Seat Ass'y | Includes 15 - 33.

204611541

Unavailable

16

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

17

Hex. Nut M6

232061600

$1.04

18

Latch Ass'y

269700109

$23.10

19

Latch Ass'y

269700109

$23.10

20

Latch Ass'y

269700109

$23.10

21

Latch Spring

269700017

$8.34

22

Hex. Screw M6 X 30, Scotch Grip

207363060

Unavailable

23

Stainless Flat Washer M6

234061600

$0.28

24

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

25

Hex. Nut M6

232061600

$1.04

26

Hook (Seat Base)

291001357

Unavailable

27

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.72

28

Nut Welded, M6

293100003

$7.25

29

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.04

30

Front Seat Cover

204611161

Unavailable

31

Front Foam

269000358

Unavailable

32

Strap

204611162

Unavailable

33

Seat Corner

204611163

Unavailable

34

Staple

293730005

Unavailable
