2005 Ski-Doo Legend V-1000 Steering System Diagram

← All diagrams

Find the part on the Steering System diagram for your 2005 Ski-Doo Legend V-1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

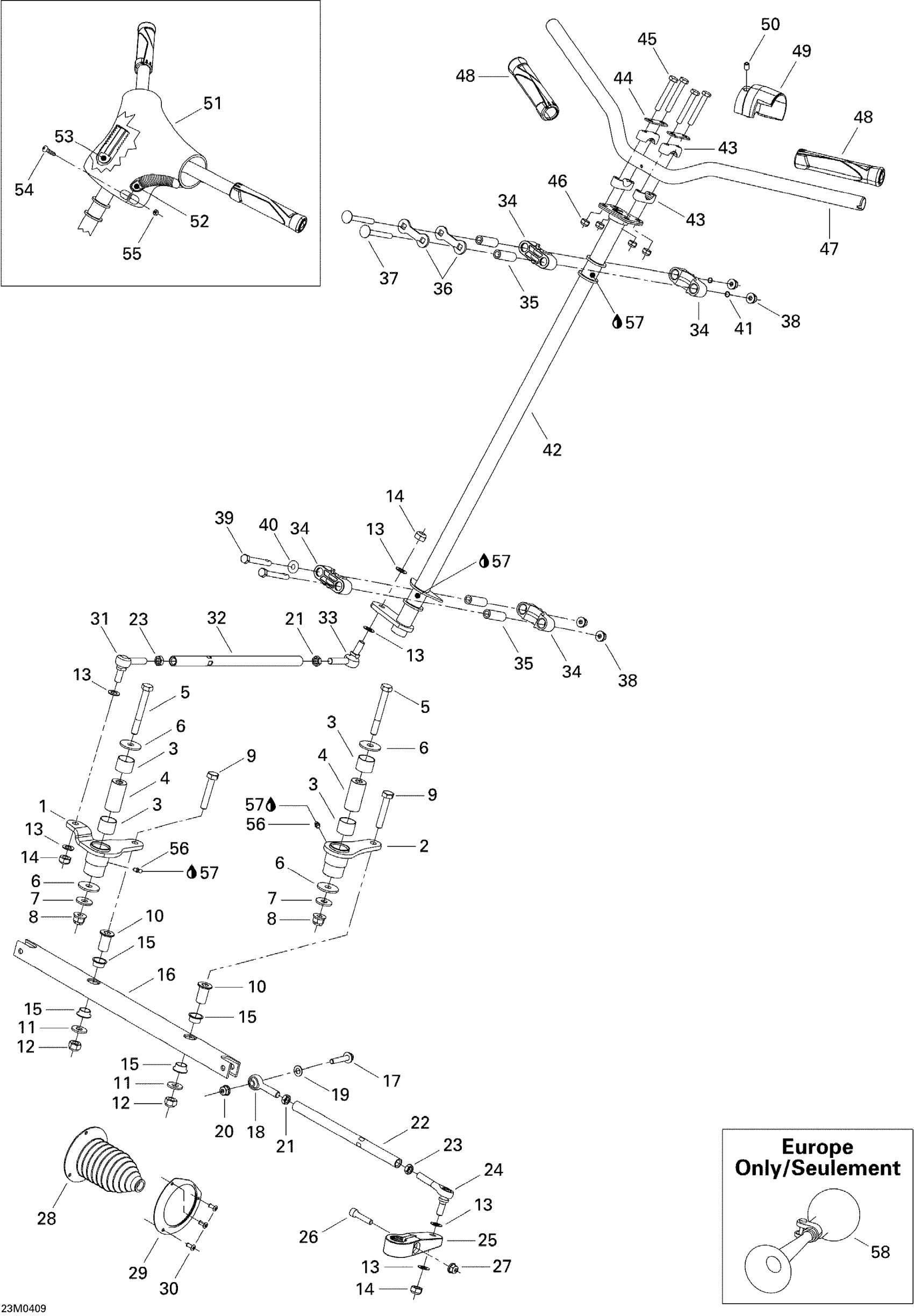

2005 Ski-Doo Legend V-1000 Steering System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

—

$92.28

In stock

2

—

$73.82

In stock

3

BUSHING SWIVEL - Call your local BRP dealership

506149900

—
Out of stock

4

PIVOT SWIVEL - Call your local BRP dealership

506150100

—
Out of stock

5

2

$3.29

In stock

6

Washer 10 mm

506150000

4

$2.63

In stock

7

Flat Washer M10 | 4X4

250200014

2
Out of stock

8

Flange Nut M10

732610084

2

$5.49

In stock

9

Hex. Screw M10 X 55

207005544

2
Out of stock

10

—

$15.26

In stock

11

FLAT WASHER - Call your local BRP dealership

224002251

—
Out of stock

12

Elastic Locking Nut M10 X 1.5

233601416

2
Out of stock

13

Washer

503175800

8
Out of stock

14

4

$1.25

In stock

15

Swivel Bushing

503191555

4
Out of stock

16

SWIVEL BAR - Call your local BRP dealership

506151362

—
Out of stock

17

2

$1.25

In stock

18

—

$43.82

In stock

19

Washer

506151252

2

$3.11

In stock

20

Hex. Flange Elastic Nut M8

233281414

2
Out of stock

21

3

$0.72

In stock

22

—

$41.51

In stock

23

RH Threaded Hex. Jam Nut M10

732610010

3
Out of stock

24

Ball Joint

506151491

2

$42.28

In stock

25

RH STEERING ARM - Call your local BRP dealership

506145800

—
Out of stock

25

LH STEERING ARM - Call your local BRP dealership

506145900

—
Out of stock

26

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

—
Out of stock

27

Hex. Flange Elastic Nut M8

233281414

2
Out of stock

28

—

$12.91

In stock

29

—

$4.08

In stock

30

Pop Rivet 3/16"

390402300

6

$0.64

In stock

31

RH BALL JOINT - Call your local BRP dealership

506151492

1
Out of stock

32

—

$14.75

In stock

33

LH JOINT BALL - Call your local BRP dealership

506151845

1
Out of stock

34

Housing Half

506150400

4

$7.31

In stock

35

Housing Bushing

506150500

4
Out of stock

36

Stopper Plate

506150600

3

$4.15

In stock

37

2

$1.11

In stock

38

Hex. Flange Elastic Nut M8

233281414

4
Out of stock

39

Hex. Screw M8 X 70

207087044

2

$1.73

In stock

40

—

$0.70

In stock

41

—

$6.51

In stock

43

Steering Support

709400919

4

$20.74

In stock

44

Stiffner

709400509

2

$4.43

In stock

45

Hex. Screw M8 X 55

207085544

4
Out of stock

46

Hex. Elastic Stop Nut M8

232581414

4
Out of stock

48

Handle Grip

506152238

2

$76.89

In stock

49

—

$9.20

In stock

53

Keyway | Sport / Sport GT

506151661

—
Out of stock

54

2

$1.11

In stock

55

Hex. Flange Elastic Nut M5

233251414

2
Out of stock

56

Grease Fitting

408200700

2
Out of stock

57

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

—
Out of stock

58

Horn

549011291

1
Out of stock
