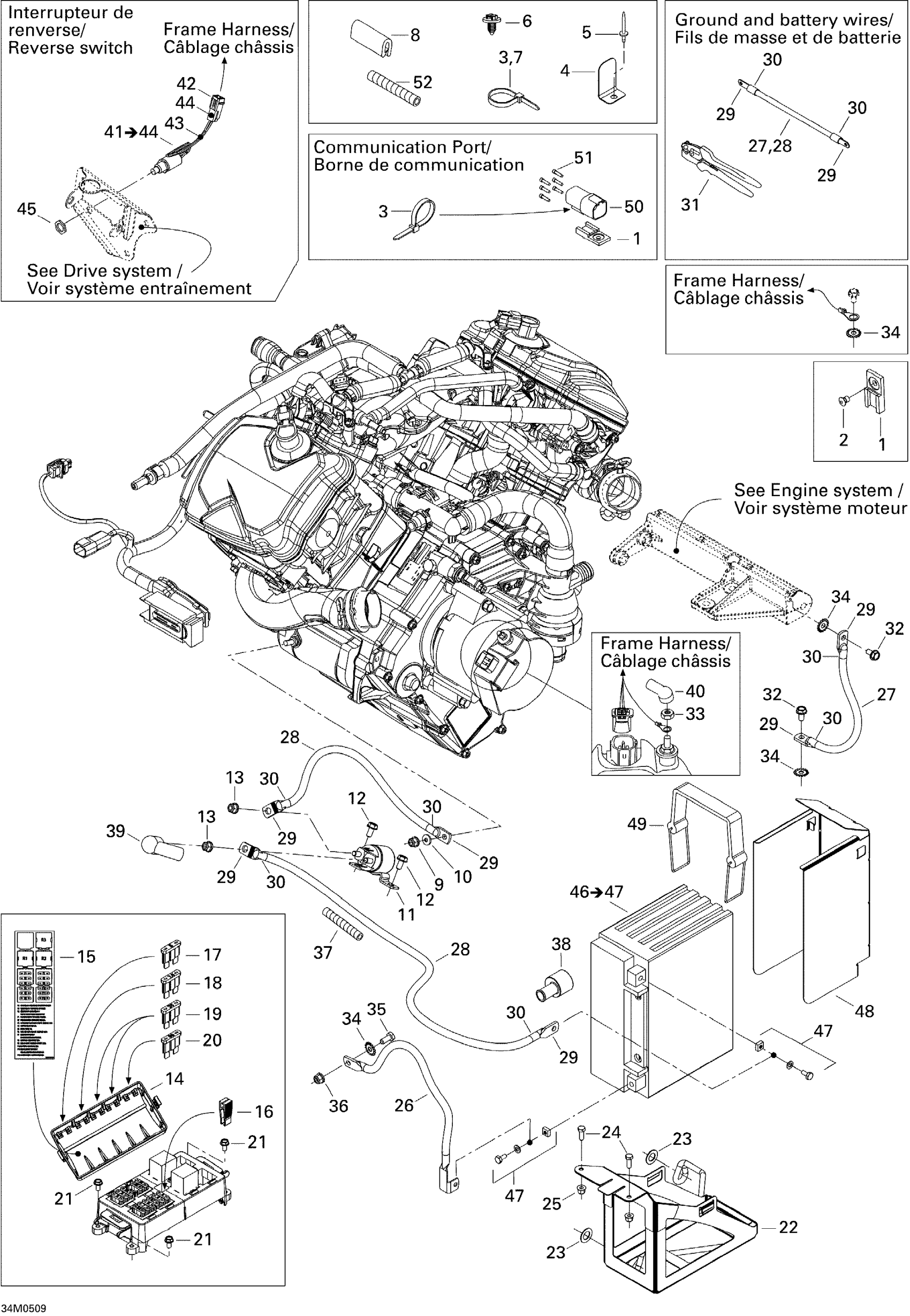

Ski-Doo Legend V-1000, 2005 Battery And Starter Diagram

#

Description
Price

1

Clip

270000141

$8.33

2

Avdel Rivet 3/16"

293150037

$0.47

3

Tie Wrap 368 mm

293750008

$0.85

4

Tab Lock

518322530

Unavailable

5

Pop Rivet 3/16"

390402400

Unavailable

6

Mount Dart

293730040

$0.86

7

Tie-Rap 180 mm

414115200

$0.09

7

Tie Wrap 142 mm

293750002

Unavailable

7

Tie-Rap 173 mm

293750009

Unavailable

8

Was 271000110 Protection Trim

219704353

Unavailable

9

Elastic Stop Nut M6

232561414

Unavailable

10

Flat Washer 6 mm

234061410

Unavailable

11

Starter Relay

515176011

Unavailable

12

Hex. Flange Screw M6 X 12

210261250

$1.56

13

Elastic Stop Nut M6

232561414

Unavailable

14

COVER - Call your local BRP dealership

515176066

Unavailable

15

Fuse Decal

516001613

Unavailable

16

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable

17

Fuse, 5 Amperes | CE

278000344

$3.22

18

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

19

Fuse, 20 Amperes

409003900

$3.22

20

Fuse, 30 Amperes

410917200

$3.22

21

Hex. Forming Screw M5 X 16

210251650

Unavailable

22

Battery Support

515175954

Unavailable

23

Washer

503175800

$3.26

24

Hex. Screw M5 X 14

207151444

Unavailable

25

Hex. Flange Elastic Nut M5

233251414

Unavailable

26

Ground Wire

515175962

Unavailable

27

Ground Cable Battery, no 6, meter)

278001680

Unavailable

28

Cable Battery, no 6, meter)

278001690

Unavailable

29

Terminal 45°, Small Hole

278001682

Unavailable

29

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

29

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

29

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

29

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

29

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

29

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

29

Terminal 30°, 2 Holes

278001776

Unavailable

30

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

31

Crimp Plier

529035730

Unavailable

32

Hex. Flange Screw M6 X 12

210261250

$1.56

33

Elastic Stop Nut M6

232561414

Unavailable

34

Lock Washer Serrated M6

250200041

Unavailable

35

Hex. Screw M6 X 16

207161644

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

37

Was 409901700 Tubing (9 mm)

219704399

Unavailable

38

Protector Cap | XT

515175919

$16.89

39

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

40

Protector Cap

710000526

Unavailable

41

Switch Ass'y

515176472

$71.51

42

Male Terminal

515175232

$1.49

43

Tape

293740005

Unavailable

44

Male Terminal Housing, 2 Circuits

515175654

$7.48

45

BRASS NUT - Call your local BRP dealership

250100012

Unavailable

46

Battery, 12 Volts, 21 Amperes

410922962

$160.52

47

Battery Bolt Kit

250000282

$2.95

48

DEFLECTOR - Call your local BRP dealership

515175616

Unavailable

49

Battery Strap This part replaces 515175955.

605356180

Unavailable

50

Male Terminal Housing, 6 Circuits

515175668

$14.02

51

Sealing Cap

293000052

Unavailable

52

Tubing 6 Mm 3000Mm Long

219704425

$13.14
