2005 Ski-Doo Legend V-1000 Front Arm Diagram

← All diagrams

Find the part on the Front Arm diagram for your 2005 Ski-Doo Legend V-1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

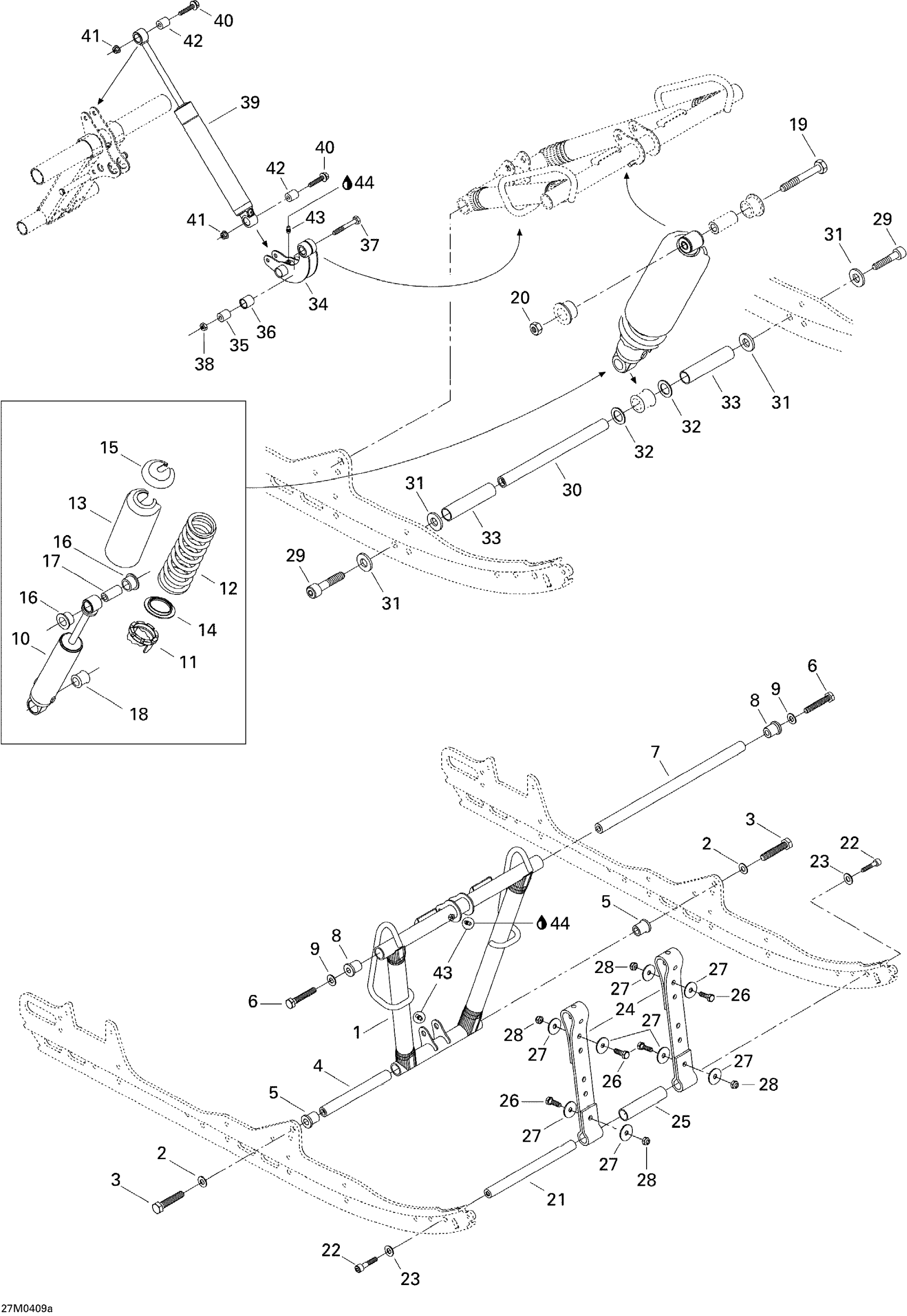

2005 Ski-Doo Legend V-1000 Front Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Front Arm

503189292

—
Out of stock

2

Washer

503189276

2

$3.20

In stock

4

SHAFT - Call your local BRP dealership

503189313

—
Out of stock

5

CUSHION - Call your local BRP dealership

503189323

—
Out of stock

6

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

2
Out of stock

7

SHAFT - Call your local BRP dealership

503190387

—
Out of stock

8

Bushing

503189324

2
Out of stock

9

Washer

732900049

2

$0.57

In stock

10

Center Shock

503190208

—
Out of stock

11

Adjustment Cam

505073625

1
Out of stock

12

SPRING - Call your local BRP dealership

503189659

—
Out of stock

13

Protector

503193663

1

$35.35

In stock

14

Spring Guide

503191872

1

$2.18

In stock

15

Spring Stopper

706200881

1
Out of stock

16

Urethane Bushing

503189117

2
Out of stock

17

Bushing | Includes 240d to 240d1

503189282

1
Out of stock

18

Bushing

503189271

1
Out of stock

19

Hex. Screw M10 X 1.5 X 50

207005044

1
Out of stock

20

Elastic Locking Nut M10 X 1.5

233601416

1
Out of stock

21

AXLE - Call your local BRP dealership

503189562

—
Out of stock

22

Socket Head Screw M10 X 35, Scotch Grip

205503544

2
Out of stock

23

Washer

503189564

2
Out of stock

24

STOPPER STRAP - Call your local BRP dealership

503190782

—
Out of stock

25

Spacer

503189265

1
Out of stock

26

Hex. Screw M8 X 25

207182544

4

$0.74

In stock

27

Flat Washer

224081301

8
Out of stock

28

Hex. Elastic Stop Nut M8

232581414

4
Out of stock

29

Socket Head Screw M12 X 35, Scotch Grip

205523544

2
Out of stock

30

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

—
Out of stock

31

Washer

503189276

4

$3.20

In stock

32

Washer

503189273

2

$3.20

In stock

33

SPACER - Call your local BRP dealership

503189274

—
Out of stock

34

Rocker

503189845

—
Out of stock

35

Rocker Axle

503189388

—
Out of stock

36

CUSHION - Call your local BRP dealership

503189626

—
Out of stock

37

Hex. Screw M10 X 1.5 X 50

207005044

1
Out of stock

38

Elastic Locking Nut M10 X 1.5

233601416

1
Out of stock

39

Rear Shock | SE

503190007

—
Out of stock

39

Rear Shock | Sport

503190209

—
Out of stock

40

2

$1.25

In stock

41

Hex. Flange Elastic Nut M8

233281414

2
Out of stock

42

Bushing

414936000

2
Out of stock

43

Grease Fitting

408200700

3
Out of stock

44

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

—
Out of stock
