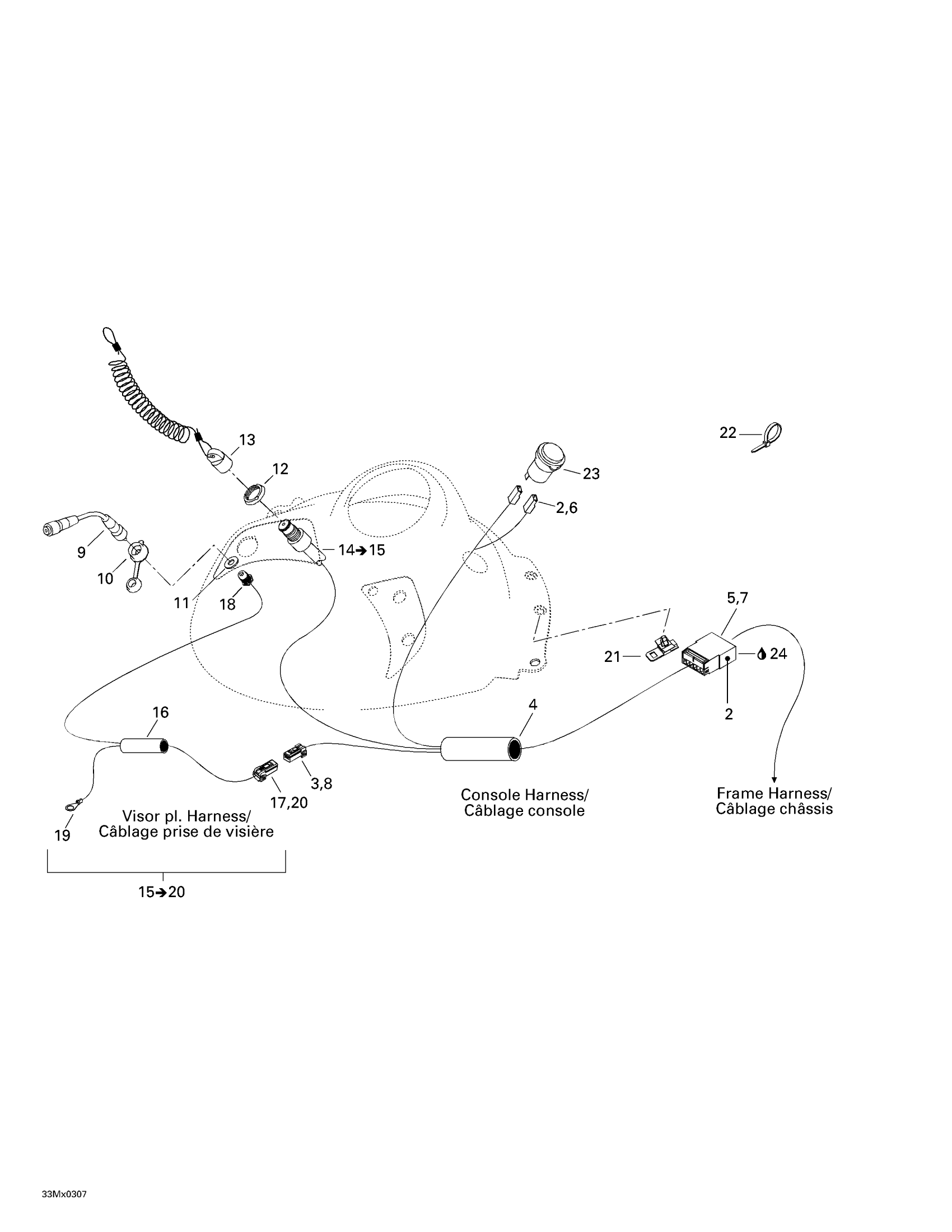

Ski-Doo Legend 500/600/700, 2003 10- Console Harness Diagram

#

Description
Price

1

Console Harness | Includes 58 - 65.

515175826

Unavailable

2

Female Terminal Housing, 1 Circuit

409010400

$7.62

3

Female Terminal

515175231

$4.39

4

GAINE LOW TEMP.VINYL - Call your local BRP dealership

515175314

Unavailable

5

Male Terminal Housing, 6 Circuits

515175662

$8.79

6

Female Terminal

409010100

$5.61

7

Male Terminal

515175232

$1.58

8

Female Housing, 2 Circuits

515175658

$16.18

9

EXTENSION - Call your local BRP dealership

515175971

Unavailable

10

Cap

572103300

$10.49

11

Washer

503175800

$3.28

12

Safety Nut (DESS Switch)

278002963

$3.28

13

DESS

515178284

$84.99

14

DESS SWITCH - Call your local BRP dealership

515175145

$71.99

15

Visor Harness

515177837

$33.99

16

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

17

Male Terminal Housing, 2 Circuits

515175654

$9.12

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Male Terminal

515175232

$1.58

21

Housing Support

515175283

$9.19

22

Tie Wrap 142 mm

293750002

$1.25

23

Outlet Power Kit, 12 Volts

861507200

$36.99

24

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
