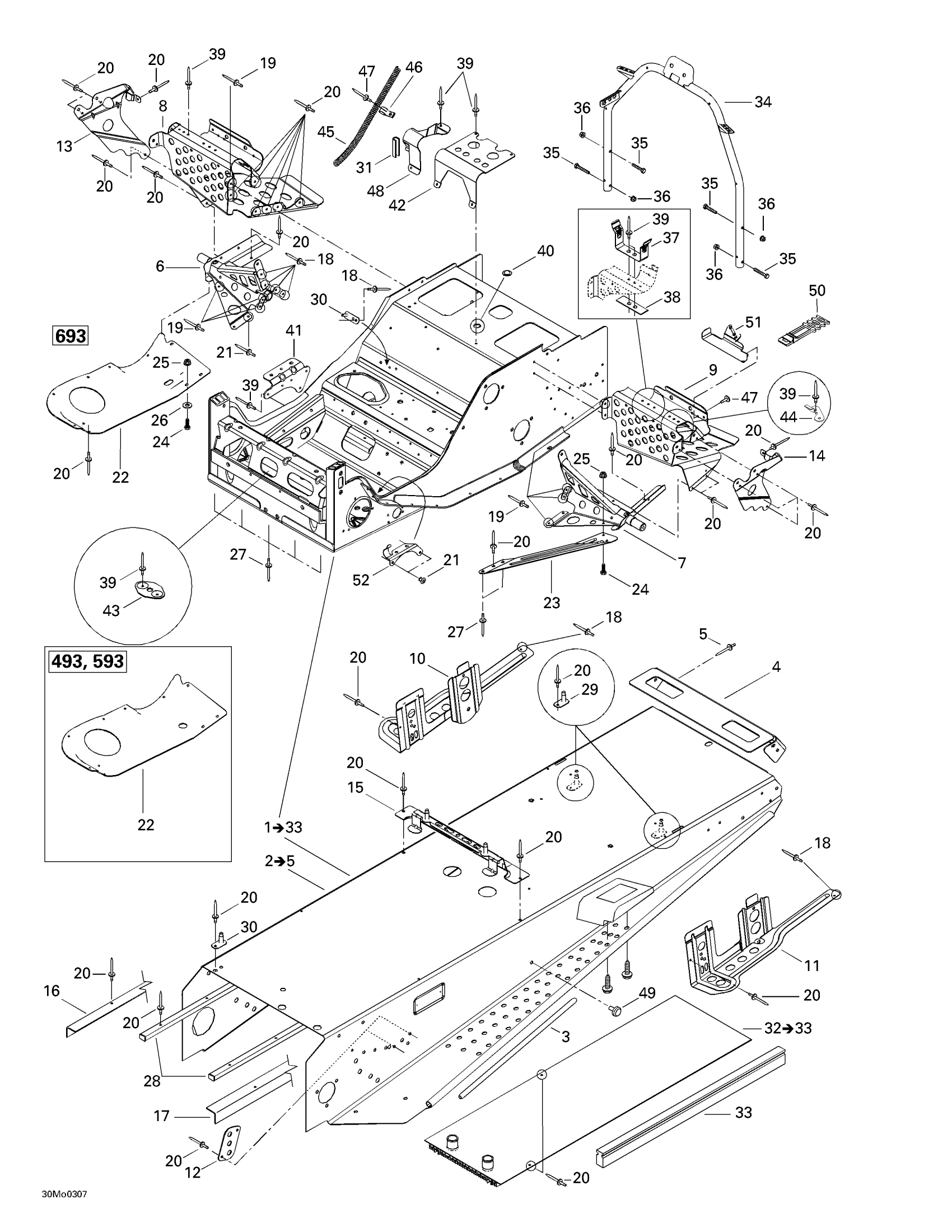

Ski-Doo Legend 500/600/700, 2003 Frame And Accessories Diagram

#

Description
Price

1

Frame | Includes 1 - 36. Legend SE 800 SDI.

415128551

Unavailable

Frame | Legend 500. Legend 600.

415128552

Unavailable

Frame | Legend 500. Legend 600.

415128552

Unavailable

2

Forming Frame | Legend SE 800 SDI.

518322534

Unavailable

3

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

4

REAR CAP - Call your local BRP dealership

518321303

Unavailable

5

Pop Rivet 3/16"

390402200

$0.35

6

RH Footrest Support

518320506

Unavailable

7

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

8

RH Footrest

518323563

Unavailable

9

LH FOOTREST - Call your local BRP dealership

518323564

Unavailable

10

RH SLIDE BRACKET - Call your local BRP dealership

518323315

Unavailable

11

LH SLIDE BRACKET - Call your local BRP dealership

518323318

Unavailable

12

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

13

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321305

Unavailable

14

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321307

Unavailable

15

FUEL TANK BRACKET - Call your local BRP dealership

518321510

Unavailable

16

RH Frame Reinforcement

518323193

Unavailable

17

LH Frame Reinforcement

518323195

Unavailable

18

Avex Rivet

390909200

$0.30

19

Avex Rivet

390909100

$0.30

20

Pop Rivet 3/16"

390402200

$0.35

21

Pop Rivet 3/16"

390402300

$0.75

22

RH BOTTOM PAN PLATE - Call your local BRP dealership

518322636

Unavailable

RH Bottom Pan Plate | 600

518319760

Unavailable

23

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

Unavailable

24

Hex. Screw M5 X 20

207152044

$0.90

25

Hex. Flange Elastic Nut M5

233251414

$1.04

26

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

27

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

28

Frame Protector

518321543

Unavailable

29

Seat Bracket

518323321

Unavailable

30

Double Bracket

518323173

Unavailable

31

Was 271000110 Protection Trim

219704353

$15.99

32

Rear Radiator | Includes 15 - 16. Legend 500.

518322901

Unavailable

33

Radiator Protector

518321655

Unavailable

34

Handle Support

518322755

Unavailable

35

Hex. Flange Screw M6 X 35

207663544

$0.90

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

Belt Guard Bracket

518202100

$17.49

38

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

39

Pop Rivet 3/16"

390402200

$0.35

40

CAP - Call your local BRP dealership

414859400

Unavailable

41

Muffler Support

518322635

Unavailable

42

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

43

Plate Bracket

518201307

Unavailable

44

TOOL KIT BRACKET - Call your local BRP dealership

518322031

Unavailable

45

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

46

Open Clamp

518321570

$7.69

47

Pop Rivet 3/16"

293150103

$0.55

48

Hose Support

518322699

Unavailable

49

Panel Fastener

518321954

$7.69

50

LATCH - Call your local BRP dealership

570069700

Unavailable

51

Tool Kit Support

518321999

Unavailable

52

Cable Support

515175254

Unavailable
