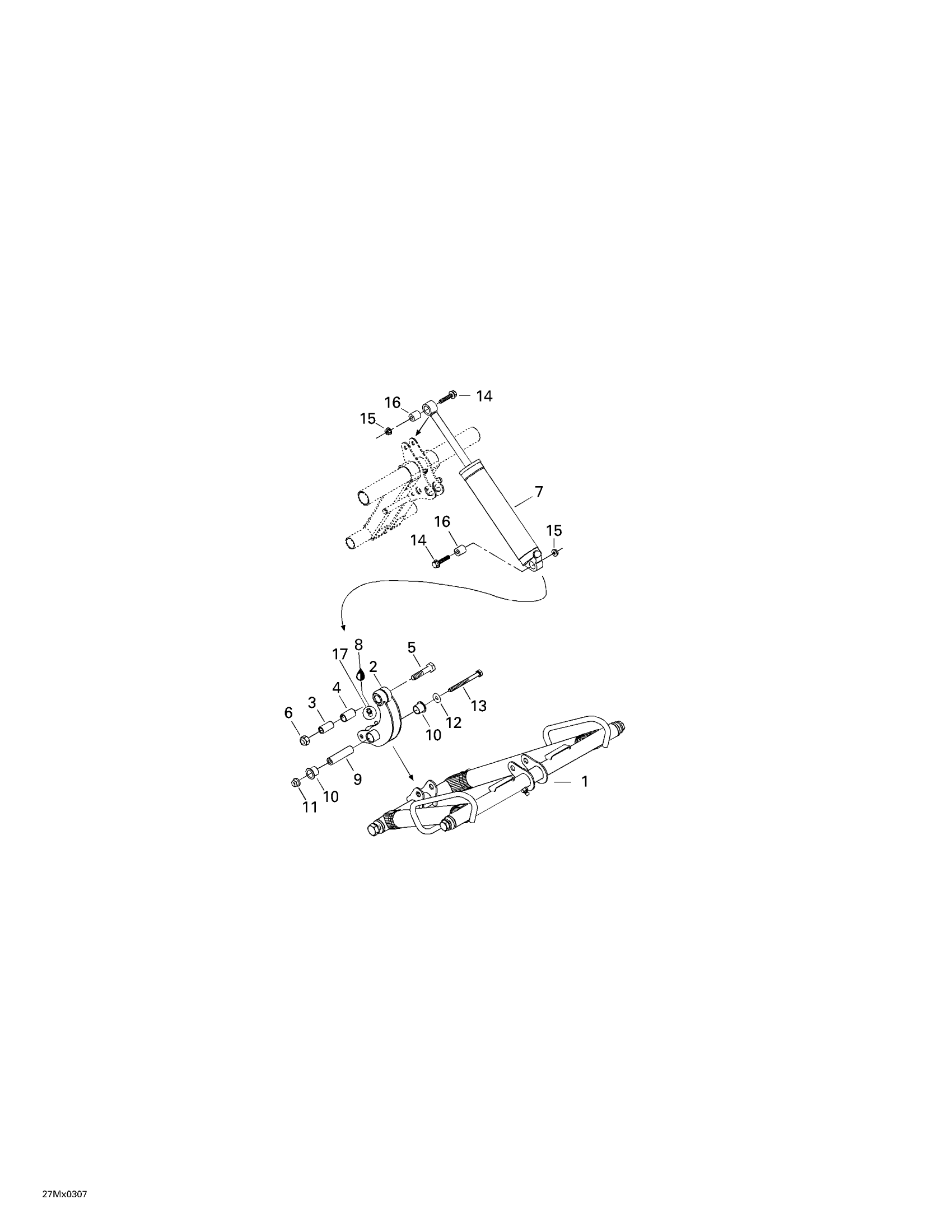

Ski-Doo Legend 500/600/700, 2003 08- Rear Shocks Diagram

#

Description
Price

1

Front Arm

503189292

Unavailable

2

Rocker

503189845

Unavailable

Rocker | Legend SE 800 SDI.

503190116

Unavailable

3

Rocker Axle

503189388

Unavailable

4

CUSHION - Call your local BRP dealership

503189626

Unavailable

5

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

6

Elastic Locking Nut M10 X 1.5

233601416

$1.69

7

Rear Shock | Legend SE 800 SDI.

503190260

Unavailable

8

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

9

AXLE ROD - Call your local BRP dealership

503189815

Unavailable

Axle Bar | Legend SE 800 SDI.

503190162

Unavailable

10

Swivel Bushing

503191555

$7.83

11

Hex. Flange Elastic Nut M8

233281414

$1.47

12

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

13

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

14

Hex. Flange Screw M8 X 40

207684044

$1.48

15

Hex. Flange Elastic Nut M8

233281414

$1.47

16

Bushing

414936000

$13.99

17

Grease Fitting

408200700

$3.49
