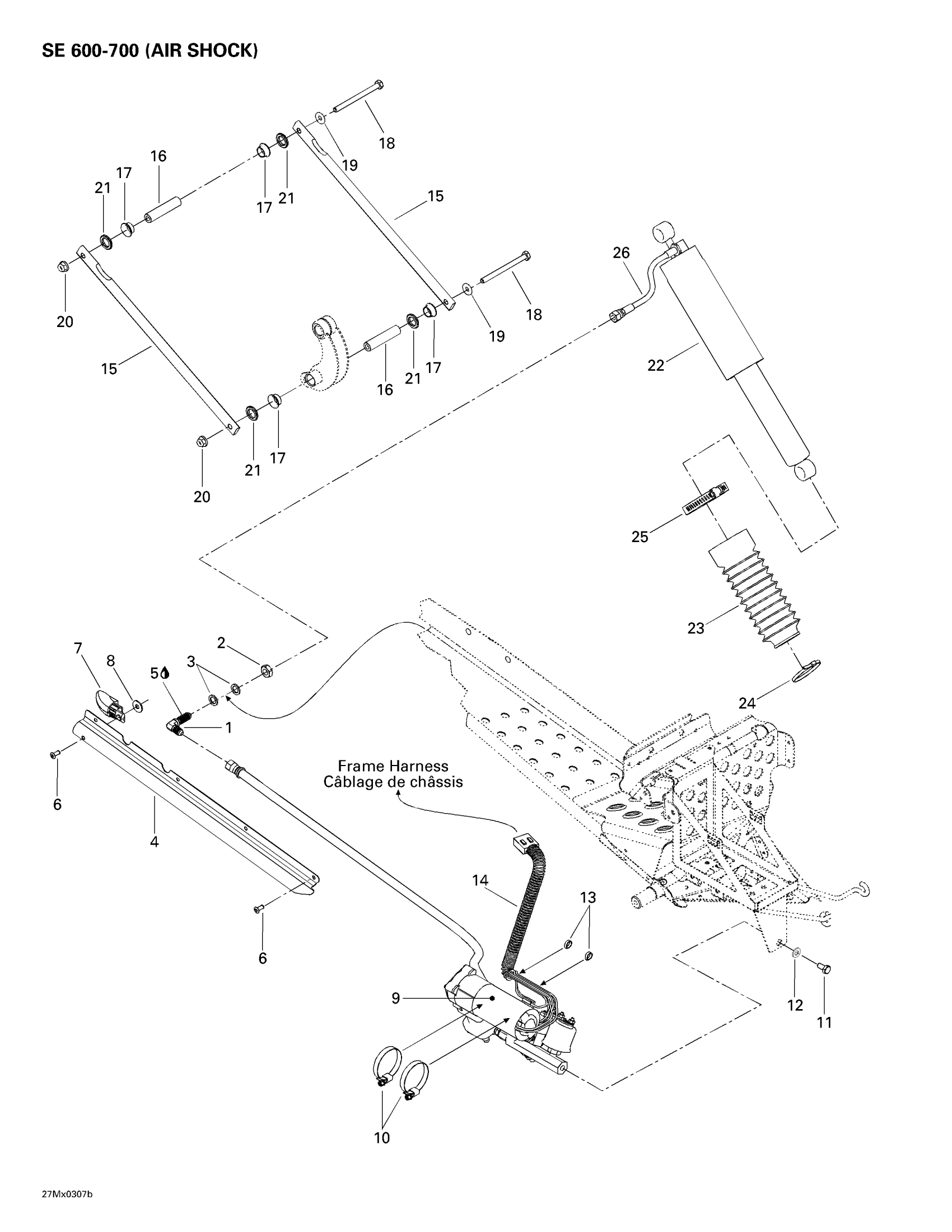

Ski-Doo Legend 500/600/700, 2003 08- Air Shock And Compressor (SE) Diagram

#

Description
Price

1

Pneumatic Junction | Grand Touring 600. Grand Touring 700.

503189756

Unavailable

2

Nut Junction | Grand Touring 600. Grand Touring 700.

503189846

Unavailable

3

WASHER - Call your local BRP dealership

503189264

Unavailable

4

Protector | Legend SE 800 SDI.

503190170

Unavailable

5

Loctite 243, 10 ml

293800060

$21.49

6

Pop Rivet 3/16"

390402200

$0.35

7

CAP - Call your local BRP dealership

520000272

Unavailable

8

Washer

517124300

$0.19

9

Compressor | Includes 9 - 21. Legend SE 800 SDI.

503190171

Unavailable

10

Norma Clamp

293650077

$7.41

11

Hex. Screw M8 x 16

207181644

$1.15

12

Flat Washer 8 mm

234081410

$0.83

13

Tie-Rap 173 mm

293750009

$1.04

14

Was 409901800 Tubing (13 mm)

219704400

$14.49

15

Throttle Rod | Legend SE 800 SDI.

503190200

Unavailable

16

Axle Bar | Legend SE 800 SDI.

503190162

Unavailable

17

Swivel Bushing

503191555

$7.83

18

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

19

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

20

Hex. Flange Elastic Nut M8

233281414

$1.47

21

Spacer | Legend SE 800 SDI.

503190161

Unavailable

22

Air Shock | Includes 27 - 31. Legend SE 800 SDI.

415128449

Unavailable

23

Protective Boot | Legend SE 800 SDI.

503190258

Unavailable

24

Tie-Rap 180 mm

414115200

$0.11

25

TRIDON GEAR CLAMP - Call your local BRP dealership

293650061

Unavailable

26

Pneumatic Line | Legend SE 800 SDI.

503190154

Unavailable
