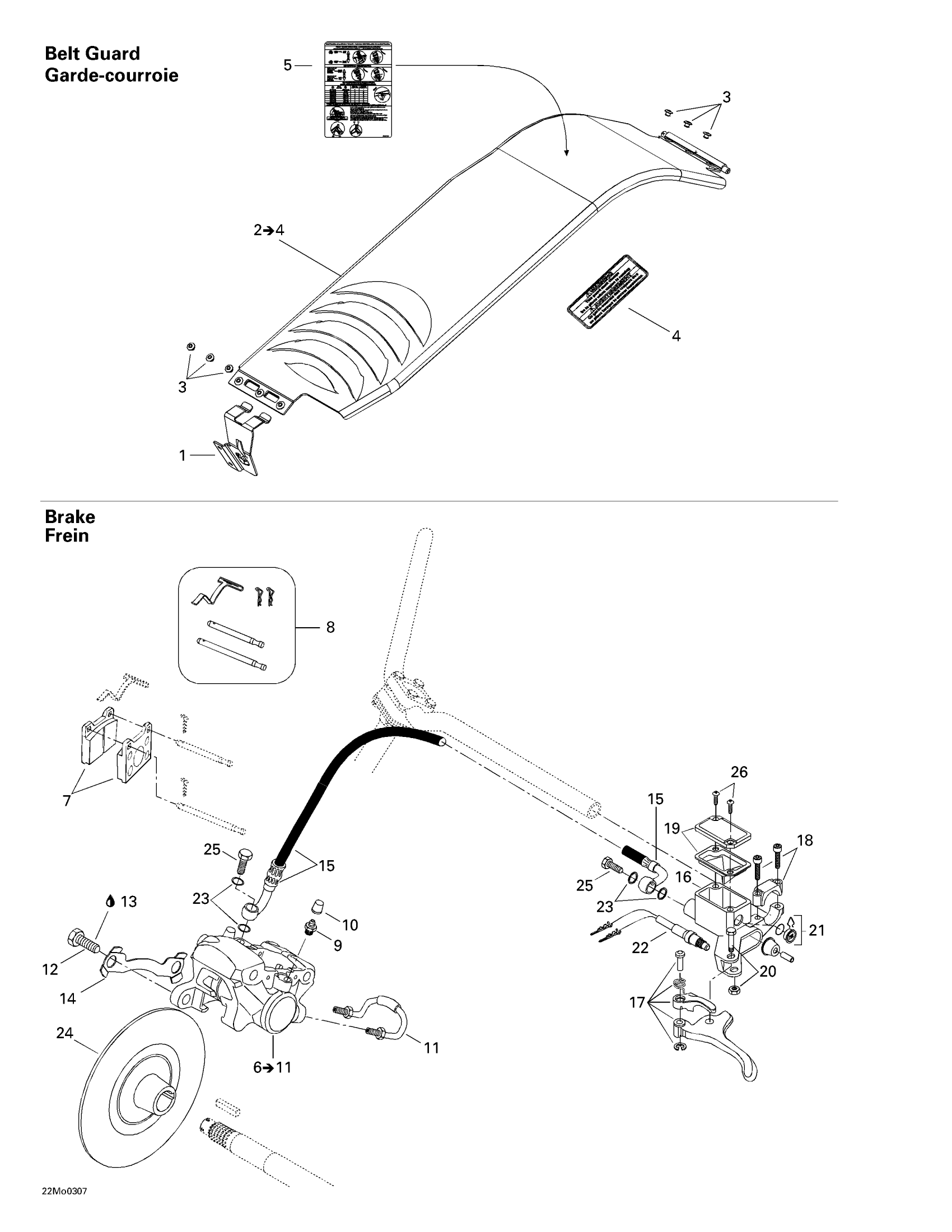

Ski-Doo Legend 500/600/700, 2003 06- Hydraulic Brake And Belt Guard Diagram
#
Description
Price
1
Bracket
417300001
Unavailable
2
Belt Guard Ass’Y | Includes Items 2 to 4
417300173
Unavailable
4
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership
516002670
Unavailable
5
Decal, Suspension Adjustment
516001639
Unavailable
6
Caliper | Includes 1 to 6
507032349
Unavailable
8
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership
414990700
Unavailable
9
BLEEDER SCREW - Call your local BRP dealership
414989800
Unavailable
10
BOOT-QTS 20 - Call your local BRP dealership
414989700
Unavailable
11
RIGID TUBING - Call your local BRP dealership
414989900
Unavailable
14
LOCKING TAB - Call your local BRP dealership
507032316
Unavailable
15
HOSE - Call your local BRP dealership
507032237
Unavailable
16
Master Cylinder | Includes 10 to 16
507032362
Unavailable
17
BRAKE SHORT LEVER ASSY - Call your local BRP dealership
507032268
Unavailable
21
WINDOW - Call your local BRP dealership
414990600
Unavailable
24
Brake Disk
507032203
Unavailable
24
BRAKE DISK - Call your local BRP dealership
507031300
Unavailable
26
SCREW M4 X 12 - Call your local BRP dealership
216141260
Unavailable
