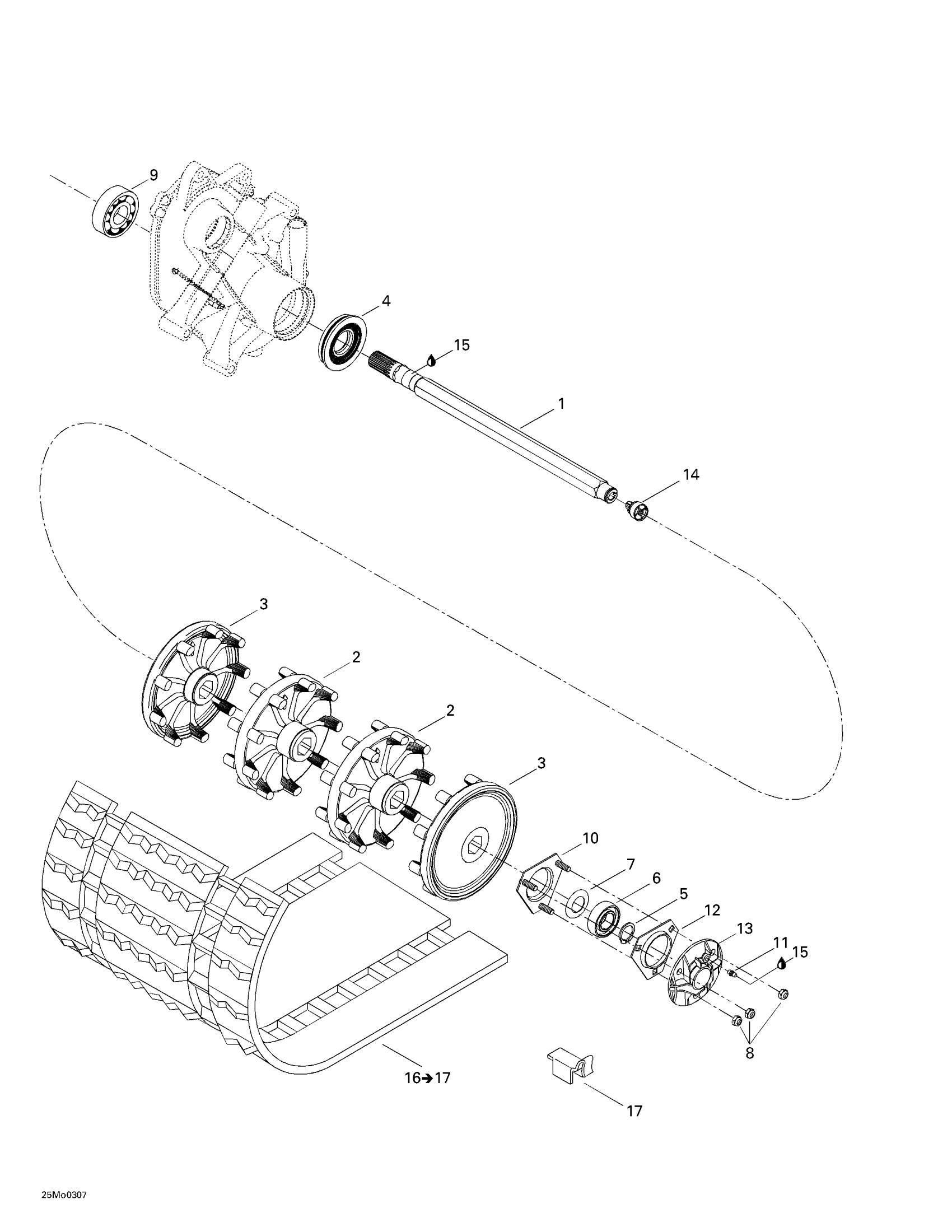

Ski-Doo Legend 500/600/700, 2003 05- Drive Axle And Track Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

Unavailable

2

SPROCKET, 9 TEETH - Call your local BRP dealership

504151781

Unavailable

3

HALF SPROCKET, 9 TEETH - Call your local BRP dealership

504151782

Unavailable

4

Oil Seal Ass'y

504151918

$20.49

5

CIRCLIP - Call your local BRP dealership

371910200

$2.09

6

Ball Bearing

293350060

$38.49

7

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

8

Hex. Flange Elastic Nut M8

233281414

$1.47

9

Ball Bearing

504152005

$46.49

10

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

11

Grease Fitting

408200700

$3.49

12

FLANGE - Call your local BRP dealership

501025000

Unavailable

13

Flange, Speedo

504152173

$76.49

14

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

15

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

16

Track 15" X 121" X 0.88" Ass'y | Includes 8 to 10

504152485

$719.99

17

Track Guide | Track Width 16''

415129528

$3.29
