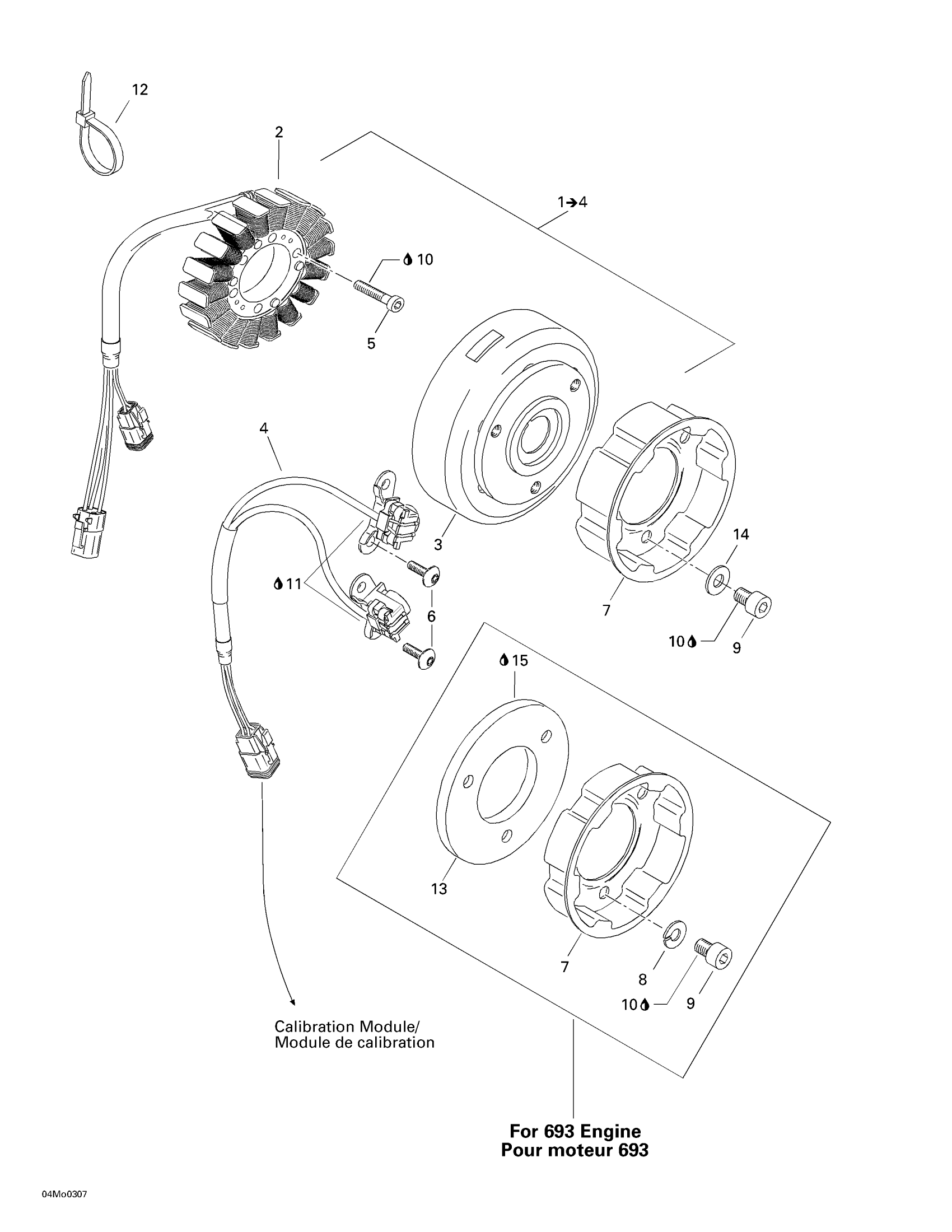

Ski-Doo Legend 500/600/700, 2003 03- Magneto (12V, 360W) Diagram

#

Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Stator Plate A

420889905

$319.49

3

FLYWHEEL - Call your local BRP dealership

410922947

Unavailable

4

Pickup Ass'y

410922948

$199.99

5

Socket Head Screw M6 X 30

205063044

$1.69

6

Torx Screw M6 X 16

420640324

$2.11

7

Starting Pulley

420852590

$29.49

Starting Pulley | Manual Start This part replaces 420852532.

420852533

$24.99

8

Washer-Lock Din.128

420945832

$1.15

9

Socket Head Screw M8 X 12

420841520

$1.69

Hex. Screw M8 X 20

207182044

$0.74

10

Loctite 243, 10 ml

293800060

$21.49

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Tie Wrap 94 mm | 4X4

293750001

$1.03

13

Flywheel

420866756

Unavailable

14

Flat Washer

420827405

$1.69

15

Sealant Loctite 648

219703000

$45.99
